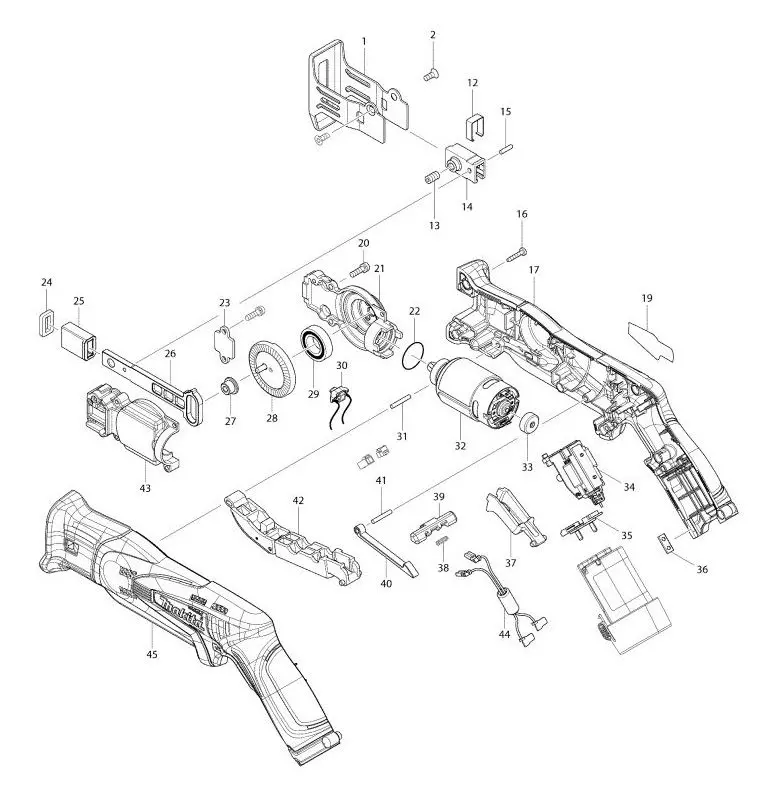

Деталировка
Деталировка
| П-п | Арт | Название |
|---|---|---|
| 1 |  |
SHOE JR100D/102D |
| 2 |  |
*C/SUNK TORX HDSCREW M4X10 5PK |
| 12 |  |
CLAMPER JR100D/JR102D |
| 13 |  |
*SKE FLAT GRUB SCREW M6X10 5PK |
| 14 |  |
BLADE CLAMP JR100D/JR102D |
| 15 |  |
\\\'PIN 3 DA4000LR/6012HDW/6826 |
| 16 |  |
TAPPING SCREW 3X16 TW100D/BCL |
| 17 |  |
HOUSING SET |
| 17 |  |
HOUSING SET JR100D/102D |
| 19 |  |
NAME PLATE JR100D/JR102D |
| 20 |  |
OPAN HD SCREW M4X14 JR100D/102 |
| 21 |  |
GEAR HOUSING JR100D/102D |
| 22 |  |
O RING 22 HM1111C/BBC231URD |
| 23 |  |
PLATE JR100D/102D |
| 24 |  |
SPONGE SEAL JR100D/102D |
| 25 |  |
SLIDER GUIDE JR100D/102D |
| 26 |  |
SLIDER N JR100D/102D |
| 26 |  |
SLIDER N JR100D/102D |
| 27 |  |
COLLARED SLEEVE 4 JR100D/102D |
| 28 |  |
GEAR COMP JR100D/102D |
| 29 |  |
BALL BEARING 6902ZZ 6413 |
| 30 |  |
LED CIRCUIT JR100D/JR102D |
| 31 |  |
PIN 3 T221DW/6835DWA/BLS820/JR |
| 32 |  |
DC MOTOR JR100D/102D |
| 33 |  |
CAP JR100D/JR102D |
| 34 |  |
SWITCH JR100D/102D |
| 35 |  |
TERMINAL TW100D/TD090D/DF330D |
| 36 |  |
SET PLATE TW100D/UM16 |
| 37 |  |
SWITCH LEVER R JR100D/102D |
| 38 |  |
COMPRESSION SPRING 4 BHPBDF451 |
| 39 |  |
LOCK OFF LEVER R JR100D/102D |
| 40 |  |
LINK JR100D/102D |
| 41 |  |
PIN 3 T221DW/6835DWA/BLS820/JR |
| 42 |  |
SWITCH LEVER F COMP JR100D/102 |
| 43 |  |
GEAR HOUSING COVER JR100D/102D |
| 44 |  |
LINE FILTER UNIT JR100D/102D |
| 45 |  |
HOUSING SET JR100D/102D |
| 45 |  |
HOUSING SET |
