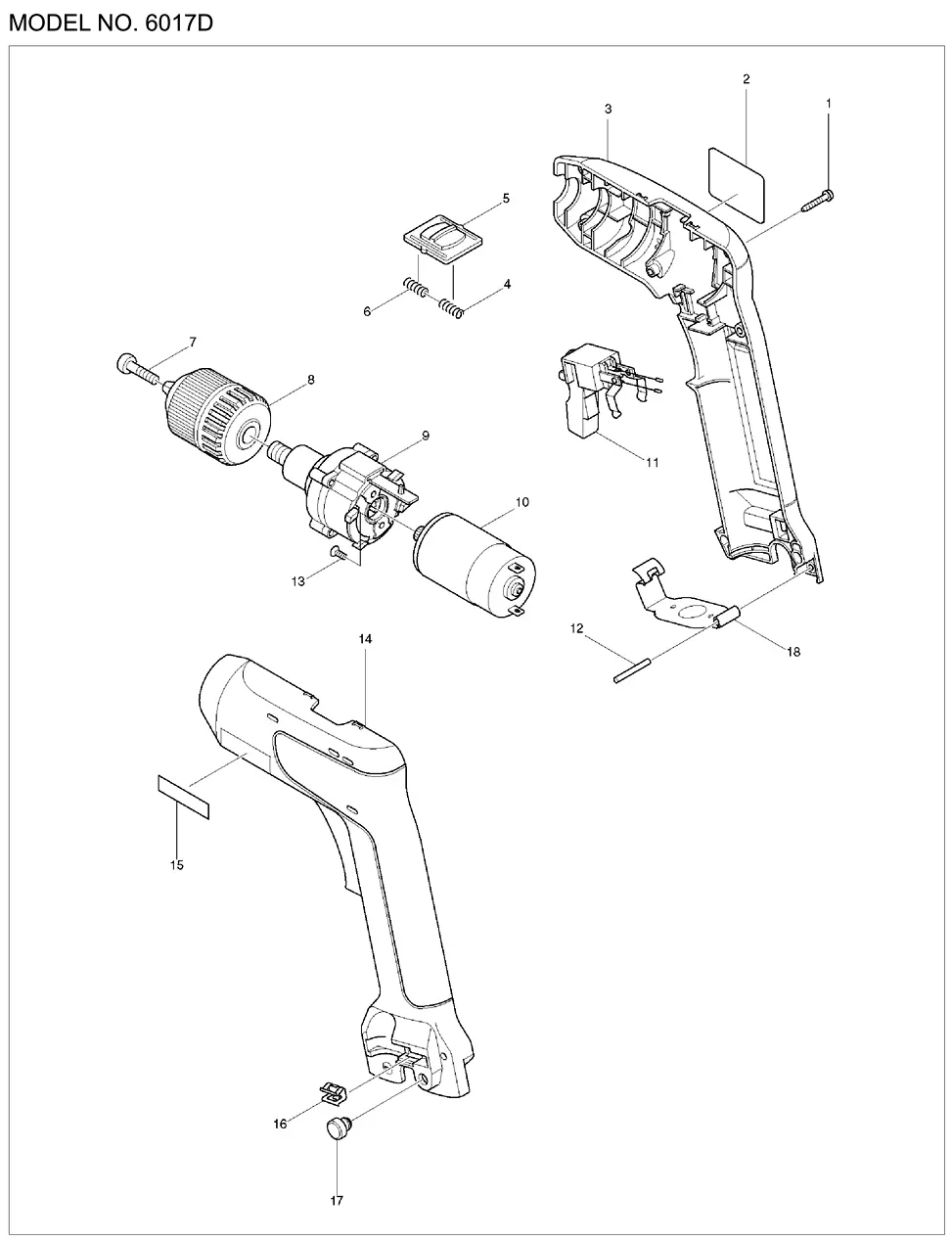

6017D Деталировка
6017D Деталировка
| П-п | Арт | Название |
|---|---|---|
| 1 | TAPPING SCREW BIND PT 3X16 | |
| 2 | NAME PLATE 6017D | |
| 3 | HOUSING SET INC. 14,15 | |
| 4 | COMPRESSION SPRING 4 | |
| 5 | SPEED CHANGE LEVER | |
| 6 | COMPRESSION SPRING 4 | |
| 7 | - PAN HEAD SCREW M5X20 | |
| 8 | KEYLESS DRILL CHUCK SET | |
| 9 | GEAR ASS\\\'Y | |
| 10 | DC MOTOR | |
| 11 | SWITCH ASS\\\'Y | |
| 12 | PIN 3 | |
| 13 | COUNTERSUNK HEAD SCREW M3X6 | |
| 14 | HOUSING SET INC. 3,15 | |
| 15 | MAKITA LABEL | |
| 16 | BIT HOLDER | |
| 17 | RUBBER PIN 6 | |
| 18 | SET PLATE | |
| A01 | BATTERY COVER | |
| A02 | +- BIT 2-45 (new) | |
| A02 | PHILLIPS BIT 2-45 (old) | |
| A03 | PLASTIC CARRYING CASE (new) | |
| A03 | PLASTIC CARRYING CASE (old) | |
| A05 | +- BIT 2-45 (new) | |
| A05 | PHILLIPS BIT 2-45 (old) | |
| B01 | BATTERY 7000 SET | |
| B02 | DC1414 BATTERY CHARGER (new) | |
| B02 | DC1414 BATTERY CHARGER | |
| B02 | DC1414 BATTERY CHARGER | |
| B02 | DC9700 FAST CHARGER (old) | |
| E01 | BATTERY COVER | |
| E02 | BATTERY 7000 SET |
