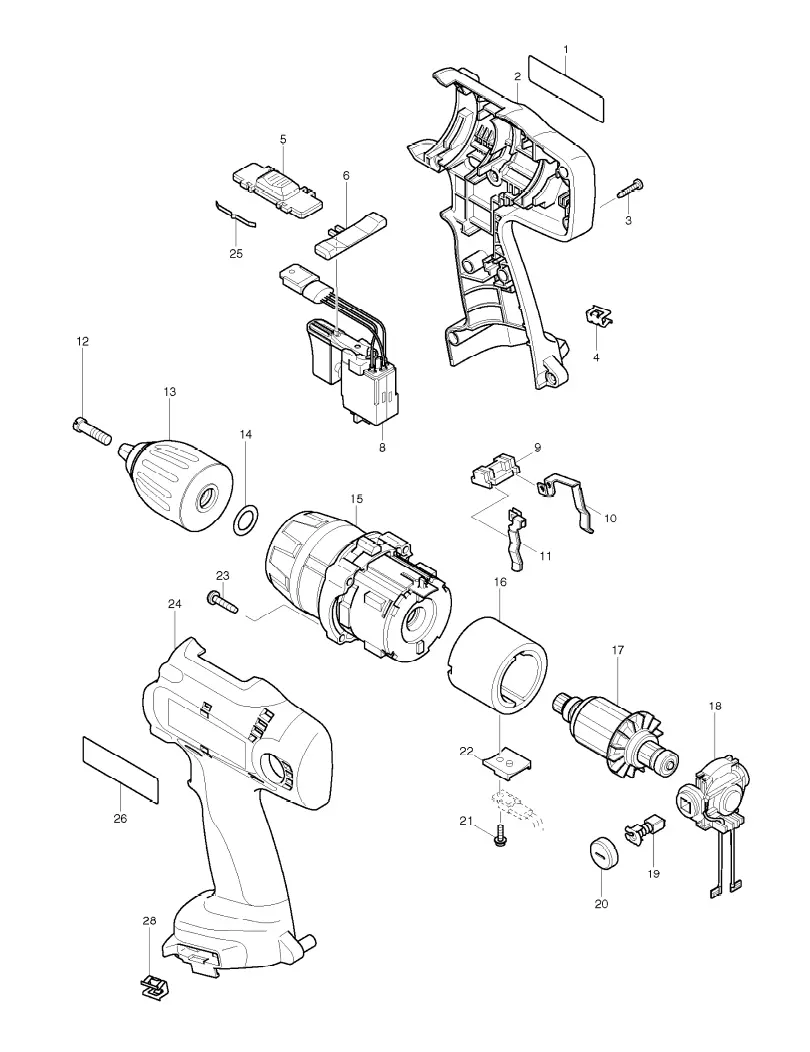

Деталировочная схема
Деталировочная схема
| П-п | Арт | Название |
|---|---|---|
| 1 | NAME PLATE 6319D | |
| 2 | HOUSING SET INC. 24 | |
| 3 |  |
TAPPING SCREW BIND PT 3X16 |
| 4 |  |
BIT HOLDER |
| 5 |  |
SPEED CHANGE LEVER ASS\\\\\'Y |
| 6 |  |
F/R CHANGE LEVER |
| 8 |  |
SWITCH C3LA-2A-ED |
| 9 |  |
HOLDER |
| 10 |  |
SPRING TERMINAL (+) |
| 11 |  |
SPRING TERMINAL (-) |
| 12 |  |
FLAT HEAD SCREW M6X22 |
| 13 |  |
KEYLESS DRILL CHUCK 13 |
| 14 |  |
FLAT WASHER 13 |
| 15 |  |
GEAR ASS\\\\\'Y |
| 16 |  |
YOKE UNIT |
| 17 |  |
ARMATURE |
| 18 |  |
ENDBELL COMPLETE |
| 19 |  |
CARBON BRUSH CB-430 |
| 20 |  |
BRUSH HOLDER CAP |
| 21 |  |
TAPPING SCREW ST3X10 |
| 22 |  |
FET SPACER |
| 23 |  |
TAPPING SCREW 4X20 |
| 24 |  |
HOUSING SET INC. 24 |
| 25 |  |
LEAF SPRING |
| 26 |  |
MAKITA LABEL |
| 28 |  |
BIT HOLDER |
| A01 |  |
GRIP ASS\\\\\'Y |
| A02 |  |
BATTERY COVER |
| A03 |  |
DC1414 BATTERY CHARGER |
| A04 |  |
NI-MH(2.6A) BATTERY 1234 SET |
| A05 |  |
BIT 2-45 |
| A06 |  |
PLASTIC CARRYING CASE |
