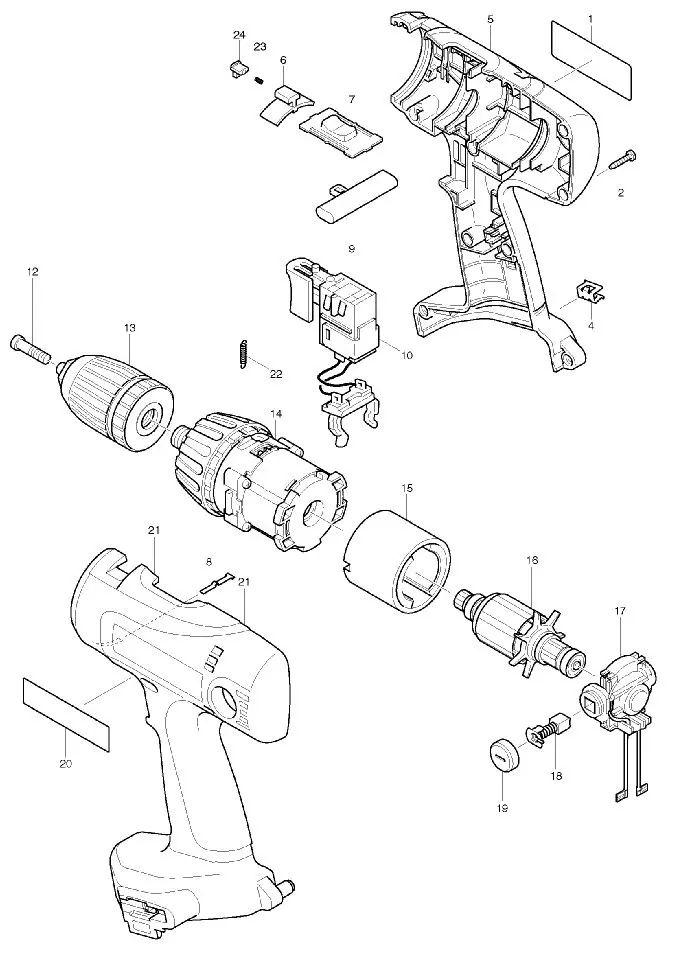

6347 DWAE Деталировка
6347 DWAE Деталировка
| П-п | Арт | Название |
|---|---|---|
| 1 | NAME PLATE 6347D | |
| 2 | TAPPING SCREW 3X16 | |
| 3 | PAN HEAD SCREW M4X2 | |
| 4 | BIT HOLDER | |
| 5 | HOUSING SET (183451-3) | |
| 6 | MODE CHANGE LEVER | |
| 7 | SPEED CHANGE LEVER ASSY (125102-2) | |
| 8 | LEAF SPRING | |
| 9 | F/R CHANGE LEVER | |
| 10 | SWITCH UNIT | |
| 12 | FLAT HEAD SCREW M6X | |
| 13 | KEYLESS DRILL CHUCK 13 (193616-9) | |
| 14 | GEAR ASSY (125574-1) | |
| 15 | YOKE UNIT | |
| 16 | ARMATURE | |
| 17 | ENDBELL COMPLETE | |
| 18 | CARBON BRUSH CB-430 | |
| 19 | BRUSH HOLDER CAP (643954-4) | |
| 20 | MAKITA MARK | |
| 21 | HOUSING SET | |
| 22 | TENSION SPRING 2 | |
| 23 | COMPRESSION SPRING | |
| 24 | LOCK LEVER | |
| А01 | BATTERY COVER | |
| А02 | BIT 2-45 | |
| А03 | PLASTIC CARRYING CAS | |
| А04 | DC1804 BATTERY CHARO | |
| А05 | BATTARY 1822 SET (193102-0) | |
| А09 | PLASTIC CASE LABEL (800G03-4) |
