6347 DWD-E/

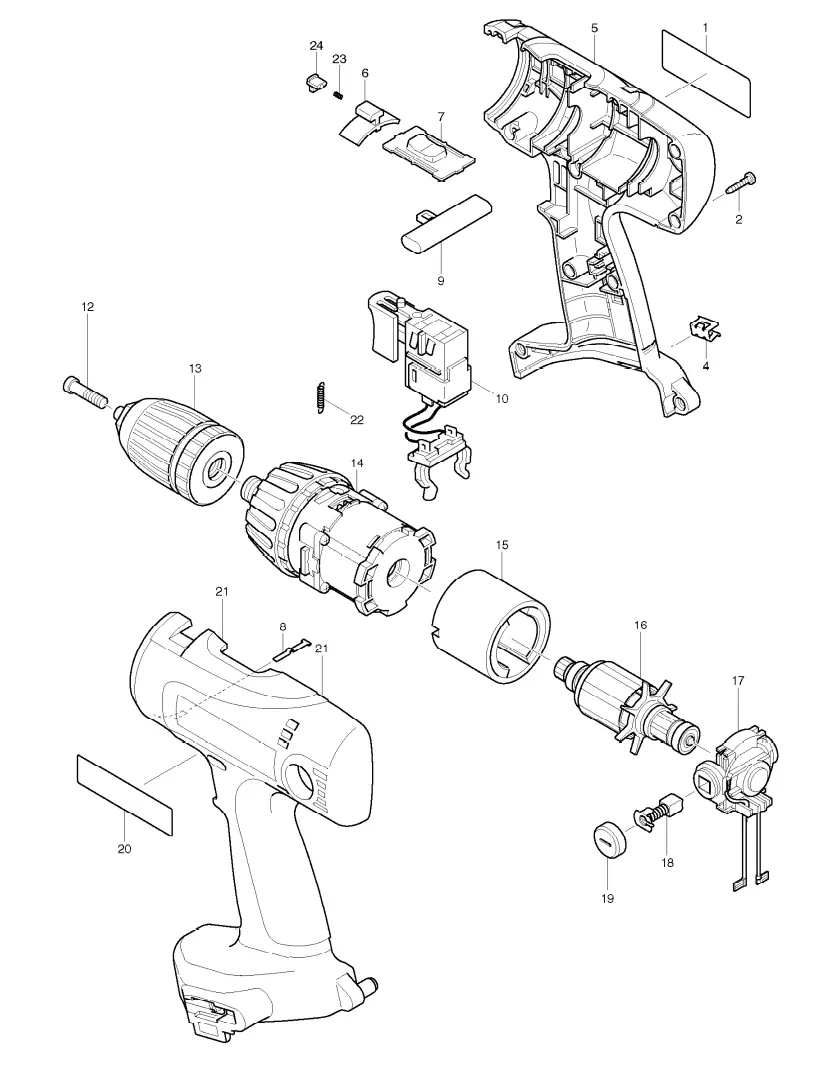

Деталировочная схема
Деталировочная схема
| П-п | Арт | Название |
|---|---|---|
| 1 |  |
NAME PLATE 6347D |
| 2 |  |
TAPPING SCREW 3X16 |
| 3 |  |
PAN HEAD SCREW M4X2 |
| 4 |  |
BIT HOLDER |
| 5 |  |
HOUSING SET (183451-3) |
| 6 |  |
MODE CHANGE LEVER |
| 7 |  |
SPEED CHANGE LEVER ASSY (125102-2) |
| 8 |  |
LEAF SPRING |
| 9 |  |
F/R CHANGE LEVER |
| 10 |  |
SWITCH UNIT |
| 12 |  |
FLAT HEAD SCREW M6X |
| 13 |  |
KEYLESS DRILL CHUCK 13 (193616-9) |
| 14 |  |
GEAR ASSY (125574-1) |
| 15 |  |
YOKE UNIT |
| 16 |  |
ARMATURE |
| 17 |  |
ENDBELL COMPLETE |
| 18 |  |
CARBON BRUSH CB-430 |
| 19 |  |
BRUSH HOLDER CAP (643954-4) |
| 20 |  |
MAKITA MARK |
| 21 |  |
HOUSING SET |
| 22 |  |
TENSION SPRING 2 |
| 23 |  |
COMPRESSION SPRING |
| 24 |  |
LOCK LEVER |
| А01 |  |
BATTERY COVER |
| А02 |  |
BIT 2-45 |
| А03 |  |
PLASTIC CARRYING CAS |
| А04 |  |
DC1804 BATTERY CHARO |
| А05 |  |
BATTARY 1822 SET (193102-0) |
| А09 |  |
PLASTIC CASE LABEL (800G03-4) |
