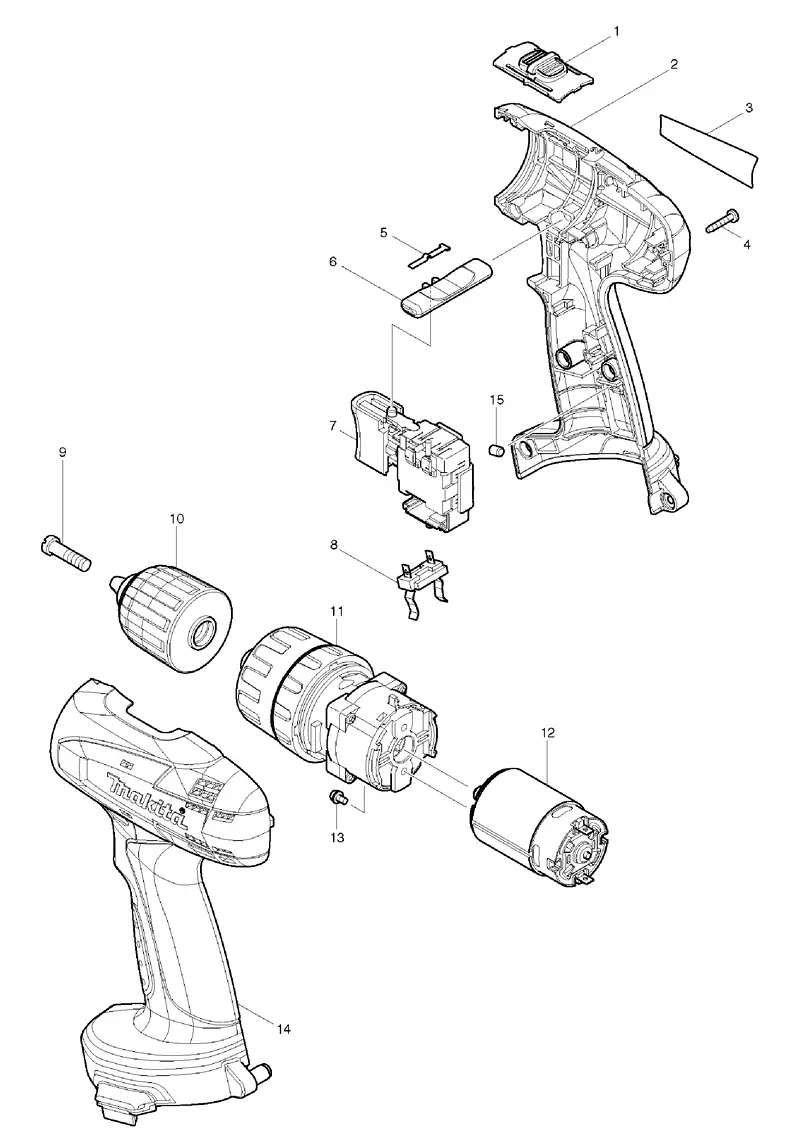

8281 D Деталировка
8281 D Деталировка
| П-п | Арт | Название |
|---|---|---|
| 1 | SPEED CHANGE LEVER ASS\\\'Y | |
| 2 | HOUSING SET (new) | |
| 2 | HOUSING SET (old) | |
| 3 | 8281D NAME PLATE | |
| 4 | TAPPING SCREW BIND PT 3X16 | |
| 5 | LEAF SPRING | |
| 6 | F/R CHANGE LEVER | |
| 7 | SWITCH TG563FSB-2 (new) | |
| 7 | SWITCH TG563FSB-2 (old) | |
| 8 | BATTERY HOLDER | |
| 9 | - FLAT HEAD SCREW M6X22 | |
| 10 | KEYLESS DRILL CHUCK 10 | |
| 11 | GEAR ASS\\\'Y | |
| 12 | DC MOTOR | |
| 13 | PAN HEAD SCREW M3X6 | |
| 14 | HOUSING SET (new) | |
| 14 | HOUSING SET (old) | |
| 15 | RUBBER PIN 4 | |
| A01 | +- BIT 2-65 | |
| A02 | BATTERY COVER | |
| A03 | DC1414 BATTERY CHARGER | |
| A04 | HIGH CAPACITY BATTERY 1422 SET | |
| A04 | BATTERY PA14 SET | |
| A05 | PLASTIC CARRYING CASE | |
| E02 | LINE FILTER | |
| E03 | LINE FILTER |
