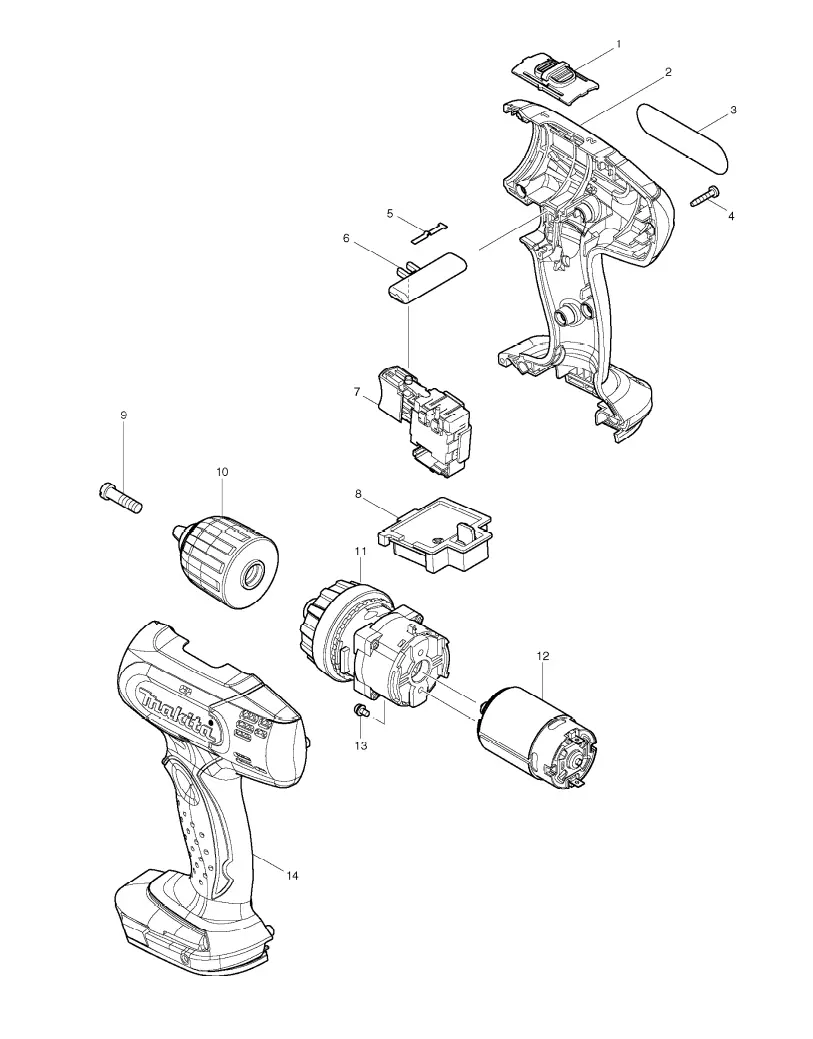

Деталировочная схема
Деталировочная схема
| П-п | Арт | Название |
|---|---|---|
| 1 | SPEED CHANGE LEVER ASS\\\\\'Y | |
| 2 | HOUSING SET INC. 14 | |
| 3 | BDF343 NAME PLATE | |
| 4 | TAPPING SCREW BIND PT 3X16 | |
| 5 | LEAF SPRING | |
| 6 | F/R CHANGE LEVER | |
| 7 | SWITCH TG563FSB-5 | |
| 8 | TERMINAL | |
| 9 | FLAT HEAD SCREW M6X22 | |
| 10 | KEYLESS DRILL CHUCK 10 | |
| 11 | GEAR ASS\\\\\'Y | |
| 12 | DC MOTOR (для моделей до 11/2011 г.) | |
| 13 | PAN HEAD SCREW M3X6 | |
| 14 | HOUSING SET INC. 2 | |
| A01 | BIT 2-65 | |
| A02 | DC18RA FAST CHARGER | |
| A03 | BATTERY BL1430 SET | |
| A04 | BATTERY COVER | |
| A05 | PLASTIC CARRYING CASE |
