BDF 456 RFE/

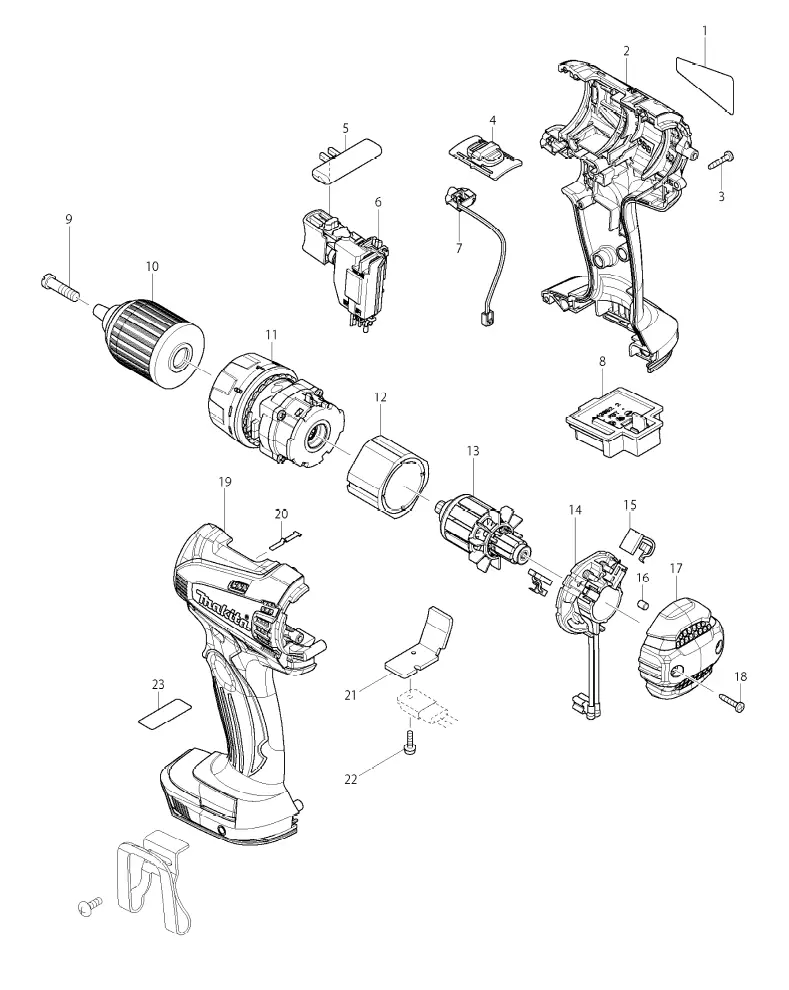

Деталировочная схема
Деталировочная схема
| П-п | Арт | Название |
|---|---|---|
| 1 |  |
BDF456 NAME PLATE |
| 2 |  |
HOUSING SET INC. 19 |
| 3 |  |
TAPPING SCREW 3X16 |
| 4 |  |
SPEED CHANGE LEVER ASSEMBLY |
| 5 |  |
F/R CHANGE LEVER |
| 6 |  |
SWITCH C3HZ-1A-TLMS |
| 7 |  |
LED CIRCUIT |
| 8 |  |
TERMINAL |
| 9 |  |
FLAT HEAD SCREW M6X22 |
| 10 |  |
KEYLESS DRILL CHUCK 13 |
| 11 |  |
GEAR ASSEMBLY |
| 12 |  |
YOKE UNIT |
| 13 |  |
ARMATURE |
| 14 |  |
BRUSH HOLDER COMPLETE |
| 15 |  |
CARBON BRUSH CB-440 |
| 16 |  |
RUBBER PIN 4 |
| 17 |  |
REAR COVER |
| 18 |  |
TAPPING SCREW 3X16 |
| 19 |  |
HOUSING SET INC. 2 |
| 20 |  |
LEAF SPRING |
| 21 |  |
HEAT SINK |
| 22 |  |
PAN HEAD SCREW M3X10 |
| A01 |  |
SCREW M4X12 |
| A02 |  |
HOOK |
| A03 |  |
BIT 2-45 |
| A04 |  |
PLASTIC CARRYING CASE COMPLETE |
| A05 |  |
BATTERY COVER |
| A06 | DC18RC FAST CHARGER | |
| A07 | BATTERY BL1830 SET | |
| A08 | BDF456RFE PLASTIC CASE LABEL | |
| E01 | LINE FILTER |
