BDF 459 RFE/

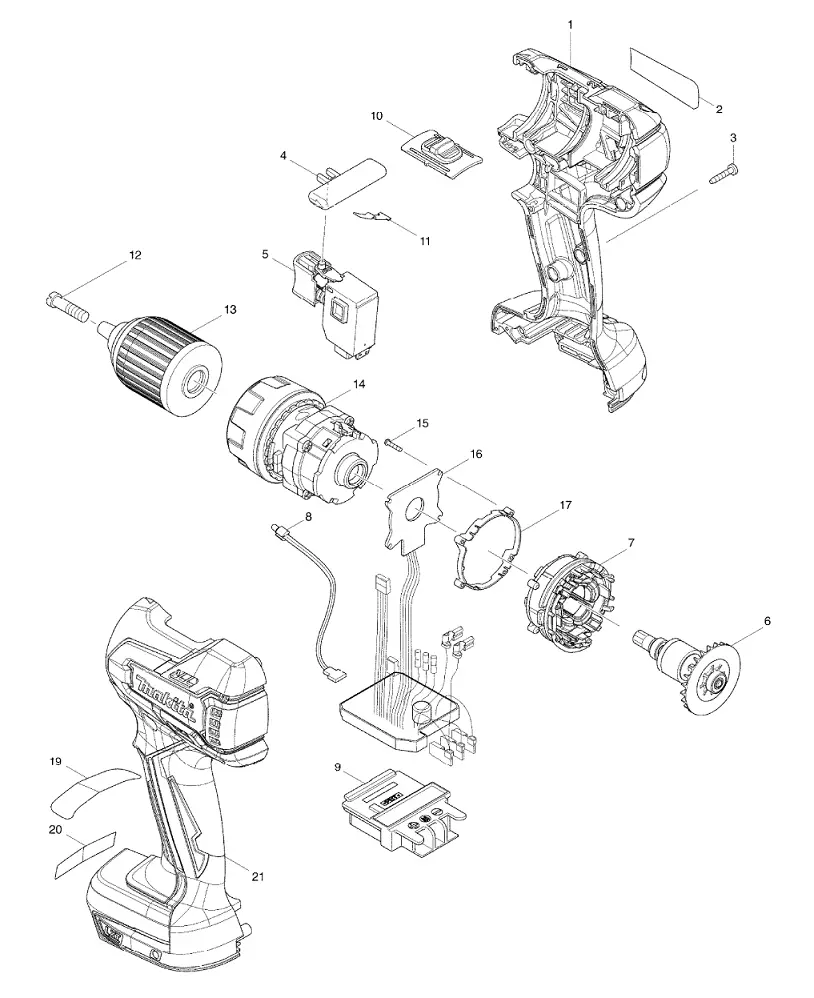

Деталировочная схема
Деталировочная схема
| П-п | Арт | Название |
|---|---|---|
| 1 | HOUSING SET | |
| 2 | BDF459 NAME PLATE | |
| 3 | TAPPING SCREW 3X16 | |
| 4 | F/R CHANGE LEVER | |
| 5 | SWITCH C3JW-2B | |
| 6 | ROTOR | |
| 7 | STATOR | |
| 8 | LED CIRCUIT | |
| 9 | TERMINAL | |
| 10 | SPEED CHANGE LEVER ASSEMBLY | |
| 11 | LEAF SPRING | |
| 12 | FLAT HEAD SCREW M6X22 | |
| 13 | KEYLESS DRILL CHUCK 13 | |
| 14 | GEAR ASSEMBLY | |
| 15 | PAN HEAD TAPPING SCREW 2X10 | |
| 16 | CONTROLLER | |
| 17 | SUPPORT | |
| 21 | HOUSING SET | |
| A01 | SCREW M4X12 | |
| A02 | HOOK (NEW) | |
| A03 | BIT 2-45 | |
| A04 | DC18RC FAST CHARGER | |
| A05 | BATTARY BL1830 SET | |
| A06 | BATTERY COVER | |
| A07 | PLASTIC CASE COMPLETE | |
| A08 | BDF459RFE PLASTIC CASE LABEL |
