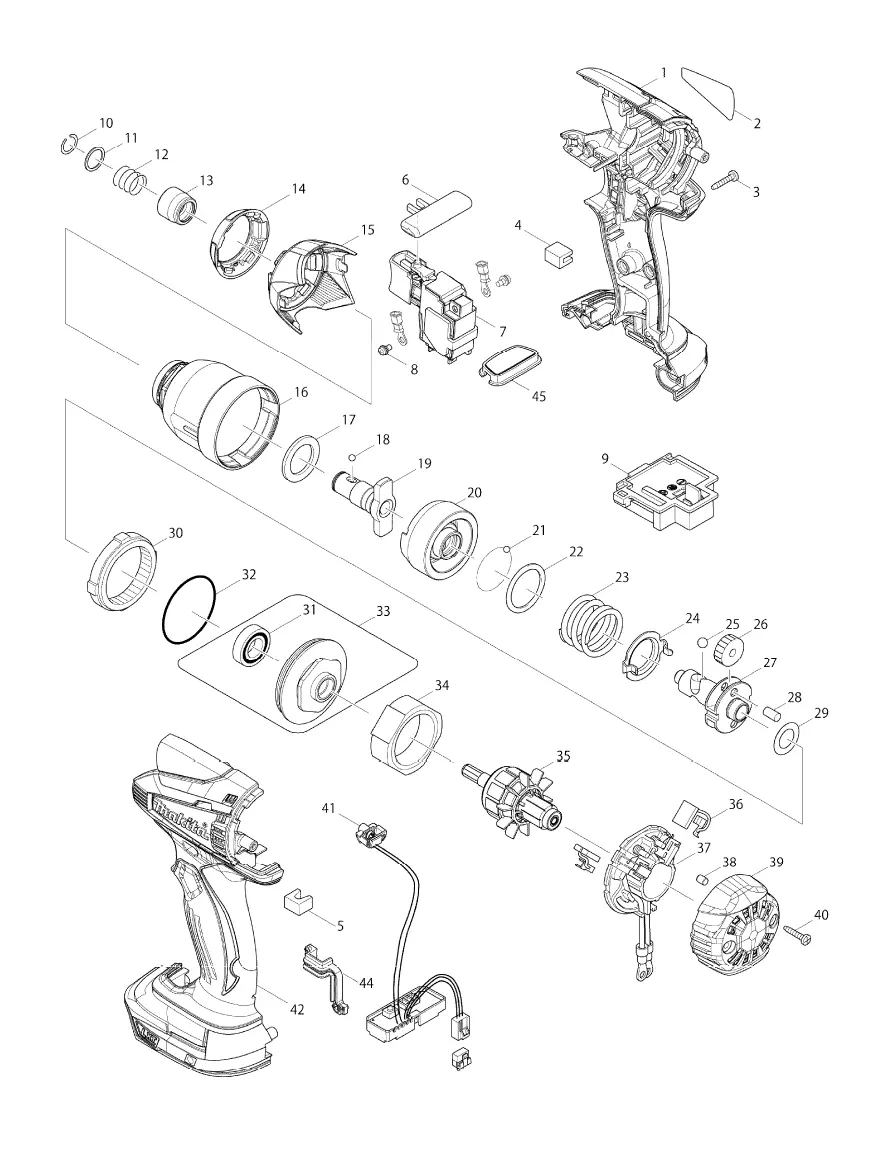

Деталировка
Деталировка
| П-п | Арт | Название |
|---|---|---|
| 1 | HOUSING SET BTD134 | |
| 2 | NAME PLATE BTD134 | |
| 3 | TAPPING SCREW 3X16 TW100D/BCL | |
| 4 | SPONGE B BTD134/146/BDF458 | |
| 5 | SPONGE A BTD134/146/BDF458 | |
| 6 | F/R CHANGE LEVER BTD130/132/14 | |
| 7 | SWITCH BTD134/146 | |
| 8 | PANHD SCREW M3.5X5 BTD130F/BTP | |
| 9 | TERMINAL BVC340 | |
| 10 | RING SPRING 11 6903VDW/6705D | |
| 11 | *NARROW WASHER 12 6705D 5PK | |
| 12 | *COMPRESSION SPRING 13 5PK | |
| 13 | BIT SLEEVE BTD134/146/136/147 | |
| 14 | BUMPER BTD134/146 | |
| 15 | HAMMER CASE COVER BTD134/146 | |
| 16 | HAMMER CASE COMP BTD134/146 | |
| 17 | NYLON WASHER 19 BTD134/136/146 | |
| 18 | *STEEL BALL 3.5 10PK | |
| 19 | ANVIL M BTD134/136/146/147 | |
| 20 | HAMMER BTD134/136/146/147 | |
| 21 | *STEEL BALL 3.5 10PK | |
| 22 | FLAT WASHER 24 6914DZ/16DZ/BTP | |
| 23 | *COMPRESSION SPRING 24 BTD130F | |
| 24 | PLATE BTD134/136/146/147 | |
| 25 | *STEEL BALL 5.6 10PK | |
| 26 | SPUR GEAR 22 BTW251/BTD132 | |
| 27 | SPINDLE BTD134/136/146/147 | |
| 28 | PIN 5 6503DW/6916D/6990D/LF10 | |
| 29 | THIN WASHER 12 BTD134/136/146 | |
| 30 | INTERNAL GEAR 51 BTD130F/132D | |
| 31 | BALL BEARING 6901LLB 6918D | |
| 32 | O RING 40 BTD144 | |
| 34 | YORK UNIT BTD130F/BTP130/140 | |
| 35 | ARMATURE BTD130F | |
| 36 | CARBON BRUSH CB-440 BFS440 | |
| 37 | BRUSH HOLDER COMP BTD134/146 | |
| 38 | RUBBER PIN 4 BFS440/BHP451 | |
| 39 | REAR COVER BTD134/146 | |
| 40 | TAPPING SCREW 3X16 TW100D/BCL | |
| 41 | LIGHT CIRCUIT BTD134 | |
| 42 | HOUSING SET BTD134 | |
| 44 | SEAL BTD134/146/BDF458 | |
| 45 | SWITCH PLATE COMP BTD134/146/B |
