BTD 145 Z/

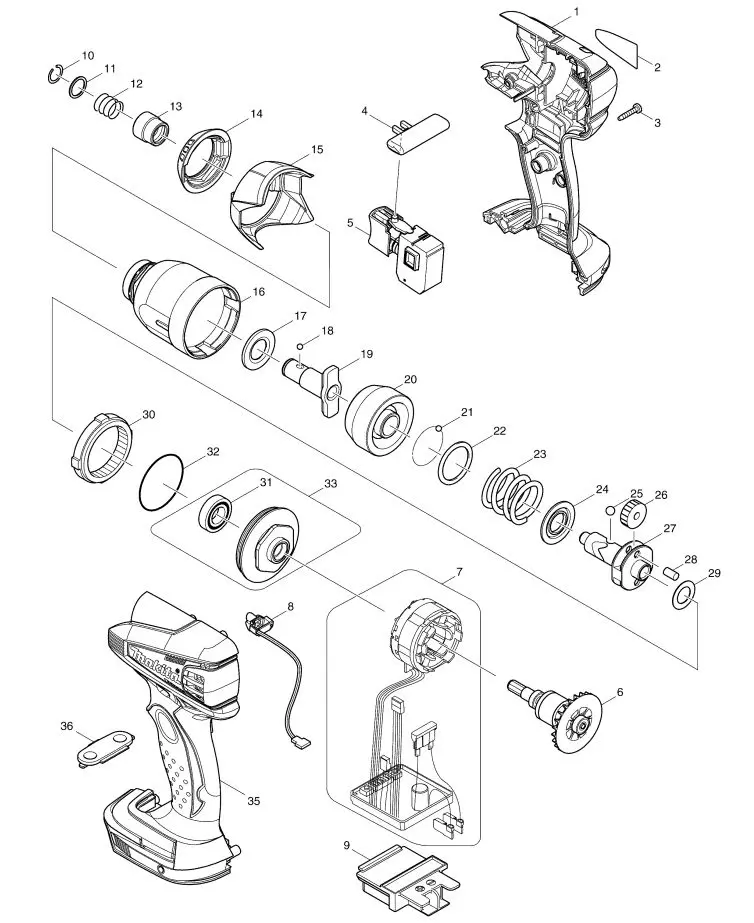

Деталировка
Деталировка
| П-п | Арт | Название |
|---|---|---|
| 1 | HOUSING SET BTD145 | |
| 2 | NAME PLATE BTD145 | |
| 3 | TAPPING SCREW 3X16 TW100D/BCL | |
| 4 | F/R CHANGE LEVER BTD130/132/14 | |
| 5 | SWITCH BTD133/145 | |
| 6 | ROTOR BTD132D/144D | |
| 7 | STATOR UNIT | |
| 8 | LED CIRCUIT BTD132D/144D | |
| 9 | TERMINAL BTD144D | |
| 10 | RING SPRING 11 6903VDW/6705D | |
| 11 | *NARROW WASHER 12 6705D 5PK | |
| 12 | *COMPRESSION SPRING 13 5PK | |
| 13 | SLEEVE 6916FD/6980FD/6932FD | |
| 14 | BUMPER BTD132D/BTD144 | |
| 15 | HAMMER CASE COVER BTD133/145 | |
| 16 | HAMMER CASE COMP BTD130F/132D | |
| 17 | NYLON WASHER 14 6916D/6990D | |
| 18 | *STEEL BALL 3.5 10PK | |
| 19 | ANVIL M 6935/80FD/BTD132/144 | |
| 20 | HAMMER BTD144 | |
| 21 | *STEEL BALL 3.5 10PK | |
| 22 | FLAT WASHER 24 6914DZ/16DZ/BTP | |
| 23 | COMPRESSION SPRING 25 BTW251 | |
| 24 | CUP WASHER 14 6916D/18D/BTP130 | |
| 25 | *STEEL BALL 5.6 10PK | |
| 26 | SPUR GEAR 22 BTW251/BTD132 | |
| 27 | SPINDLE BTD130F/BTD132/144 | |
| 28 | PIN 5 6503DW/6916D/6990D/LF10 | |
| 29 | *FLAT WASHER 12 6918D 5PK | |
| 30 | INTERNAL GEAR 51 BTD130F/132D | |
| 31 | BALL BEARING 6901LLB 6918D | |
| 32 | O RING 40 BTD144 | |
| 35 | HOUSING SET BTD145 | |
| 36 | SWITCH PLATE BTD133/145 |
