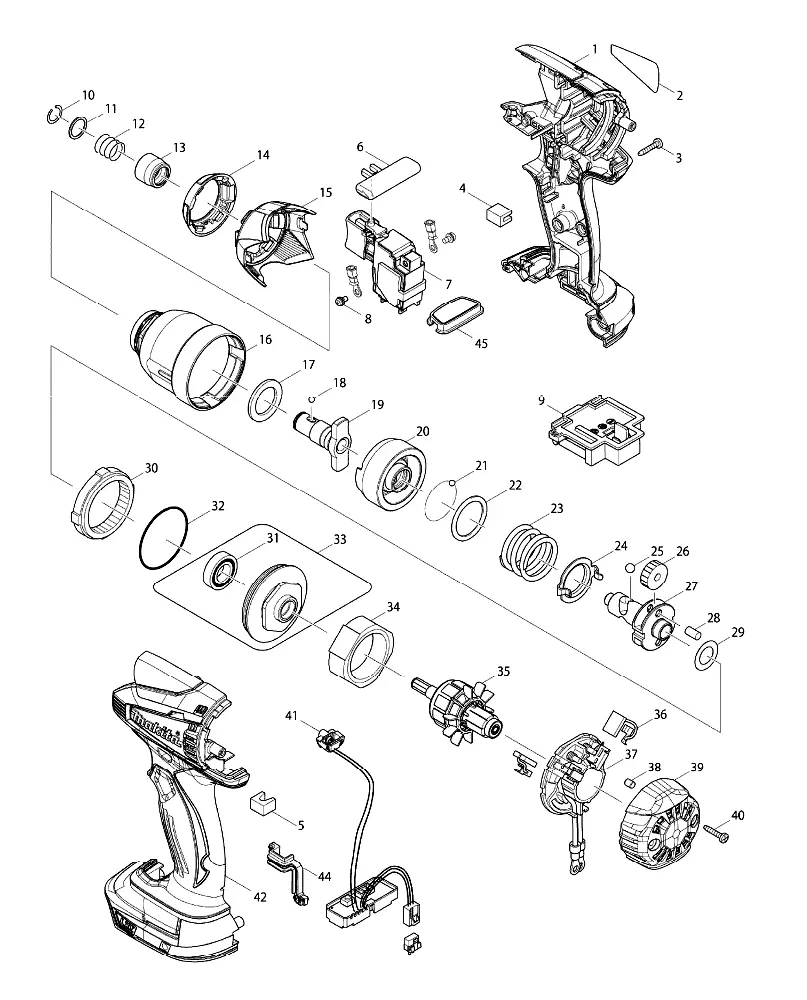

Деталировка
Деталировка
| П-п | Арт | Название |
|---|---|---|
| 1 |  |
HOUSING SET BTD146 |
| 2 |  |
NAME PLATE BTD146 |
| 3 |  |
TAPPING SCREW 3X16 TW100D/BCL |
| 4 |  |
SPONGE B BTD134/146/BDF458 |
| 5 |  |
SPONGE A BTD134/146/BDF458 |
| 6 |  |
F/R CHANGE LEVER BTD130/132/14 |
| 7 |  |
SWITCH BTD134/146 |
| 8 |  |
PANHD SCREW M3.5X5 BTD130F/BTP |
| 9 |  |
TERMINAL BVC350/BHP456/BDF456 |
| 10 |  |
RING SPRING 11 6903VDW/6705D |
| 11 |  |
*NARROW WASHER 12 6705D 5PK |
| 12 |  |
*COMPRESSION SPRING 13 5PK |
| 13 |  |
BIT SLEEVE BTD134/146/136/147 |
| 14 |  |
BUMPER BTD134/146 |
| 15 |  |
HAMMER CASE COVER BTD134/146 |
| 16 |  |
HAMMER CASE COMP BTD134/146 |
| 17 |  |
NYLON WASHER 19 BTD134/136/146 |
| 18 |  |
*STEEL BALL 3.5 10PK |
| 19 |  |
ANVIL M BTD134/136/146/147 |
| 20 |  |
HAMMER BTD134/136/146/147 |
| 21 |  |
*STEEL BALL 3.5 10PK |
| 22 |  |
FLAT WASHER 24 6914DZ/16DZ/BTP |
| 23 |  |
*COMPRESSION SPRING 24 BTD130F |
| 24 |  |
PLATE BTD134/136/146/147 |
| 25 |  |
*STEEL BALL 5.6 10PK |
| 26 |  |
SPUR GEAR 22 BTW251/BTD132 |
| 27 |  |
SPINDLE BTD134/136/146/147 |
| 28 |  |
PIN 5 6503DW/6916D/6990D/LF10 |
| 29 |  |
THIN WASHER 12 BTD134/136/146 |
| 30 |  |
INTERNAL GEAR 51 BTD130F/132D |
| 31 |  |
BALL BEARING 6901LLB 6918D |
| 32 |  |
O RING 40 BTD144 |
| 34 | YORK UNIT BTD130F/BTP130/140 | |
| 35 | ARMATURE BTD140SFE | |
| 36 | CARBON BRUSH CB-440 BFS440 | |
| 37 | BRUSH HOLDER COMP BTD134/146 | |
| 38 | RUBBER PIN 4 BFS440/BHP451 | |
| 39 | REAR COVER BTD134/146 | |
| 40 | TAPPING SCREW 3X16 TW100D/BCL | |
| 41 | LIGHT CIRCUIT BTD146 | |
| 42 | HOUSING SET BTD146 | |
| 44 | SEAL BTD134/146/BDF458 | |
| 45 | SWITCH PLATE COMP BTD134/146/B |
