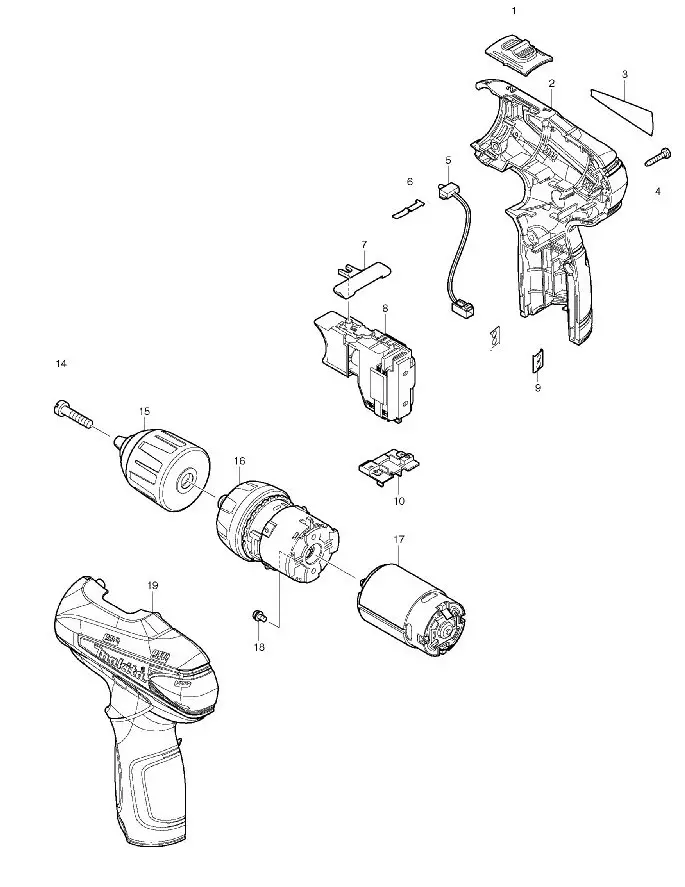

DF 330 DWLE Деталировка
DF 330 DWLE Деталировка
| П-п | Арт | Название |
|---|---|---|
| 1 | SPEED CHANGE LEVER ASSEMBLY (new) | |
| 1 | SPEED CHANGE LEVER ASSEMBLY (old) | |
| 2 | HOUSING SET INC. 19 (new) | |
| 2 | HOUSING SET INC. 19 (old) | |
| 3 | DF330D NAME PLATE | |
| 4 | TAPPING SCREW BIND PT 3X16 | |
| 5 | LED CIRCUIT | |
| 6 | LEAF SPRING | |
| 7 | F/R CHANGE LEVER | |
| 8 | SWITCH C3HW-3A-LF1M (new) | |
| 8 | SWITCH C3HY-1A-LF1M (old) | |
| 9 | SET PLATE | |
| 10 | TERMINAL | |
| 14 | - PAN HEAD SCREW M5X22 | |
| 15 | KEYLESS DRILL CHUCK 10 | |
| 16 | GEAR ASS\\\\\'Y | |
| 17 | DC MOTOR | |
| 18 | PAN HEAD SCREW M3X6 | |
| 19 | HOUSING SET INC. 2 (new) | |
| 19 | HOUSING SET INC. 2 (old) | |
| 20 | LEAD ASS\\\\\'Y | |
| 21 | LEAD ASS\\\\\'Y | |
| A01 | HOLSTER | |
| A02 | DC10WA BATTERY CHARGER | |
| A03 | BATTERY BL1013 SET | |
| A04 | BIT 2-50 | |
| A05 | PLASTIC CASE | |
| A05 | RECHARGEABLE FLASH LIGHT(BULK) | |
| A06 | PLASTIC CARRYING CASE COMPLETE (new) | |
| A06 | PLASTIC CARRYING CASE (old) | |
| E01 | LINE FILTER UNIT |
