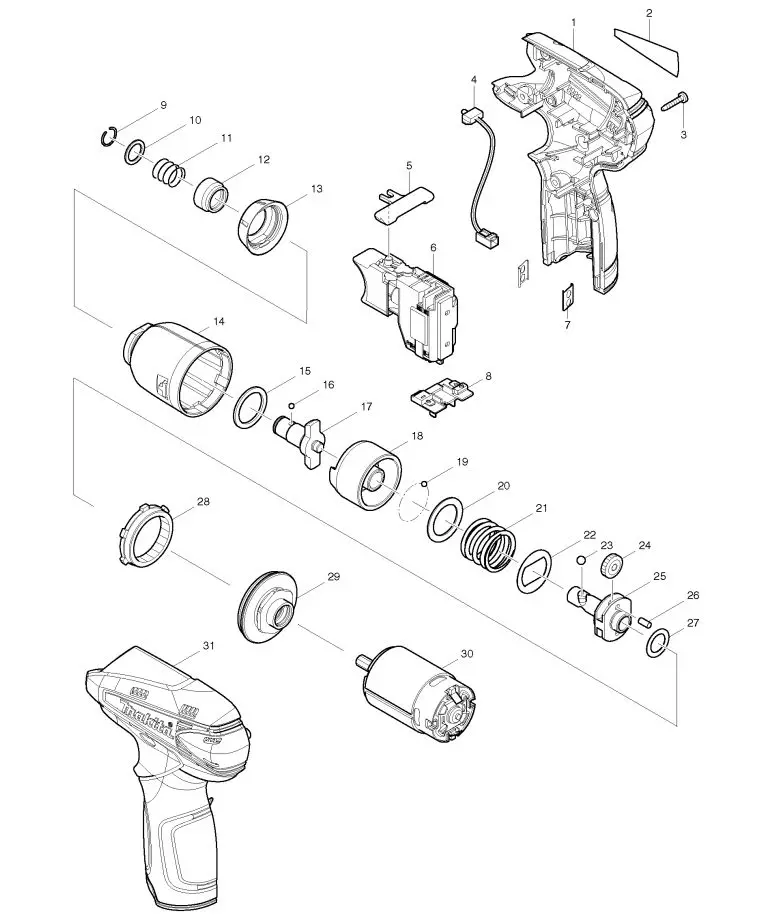

Деталировка
| П-п | Арт | Название |
|---|---|---|
| 1 |  |
HOUSING SET TW100D/TD090D |
| 1 |  |
HOUSING SET TW100D/TD090D |
| 1 |  |
HOUSING SET |
| 2 |  |
NAME PLATE TD090D |
| 3 |  |
*TAPPING SCREW BIND 3X 16 10PK |
| 4 |  |
LED CIRCUIT TD090D/DF330D |
| 5 |  |
F/R CHANGE LEVER TW100D/DF030D |
| 6 |  |
SWITCH C3HW-3A-LF1M DF090D/DF0 |
| 6 |  |
SWITCH C3HW-3A-LF1M DF090D/DF0 |
| 6 |  |
SWITCH C3HW-3A-LF1M DF090D/DF0 |
| 7 |  |
SET PLATE TW100D/UM16 |
| 8 |  |
TERMINAL TW100D/TD090D/DF330D |
| 9 |  |
RING SPRING 10 TD0101F/DF010 |
| 10 | FLAT WAHSER 11 TD0101F/6796D&F | |
| 11 | *COMPRESSION SPRING 13 5PK | |
| 12 | BIT SLEEVE TD020DSE/TD0101F | |
| 13 | BUMPER TD090D | |
| 14 | HAMMER CASE COMP TD090D | |
| 15 | NYLON WASHER 20 TW100D/TD0101F | |
| 16 | *STEEL BALL 3 10PK | |
| 17 | ANVIL M TD090D | |
| 18 | HAMMER TD0101F/TD090D | |
| 19 | *STEEL BALL 3 10PK | |
| 20 | FLAT WASHER 20 TW100D/TD0101F | |
| 21 | COMPRESSION SPRING 21 TD090D | |
| 22 | WASHER 21 TW100D/TD090D | |
| 23 | *STEEL BALL 4.8 10PK | |
| 24 | SPUR GEAR 17 TW100D/TD090D | |
| 25 | SPINDLE TW100D/TD0101F/TD090D | |
| 26 | PIN 3.5 TW100D/TD090D/TD0101F | |
| 27 | *NARROW THIN WASHER 12 10PK | |
| 28 | INTERNAL GEAR 43 TW100D/TD090D | |
| 29 | BEARING BOX COMP TW100D/TD090D | |
| 30 | DC MOTOR TD090D | |
| 31 | HOUSING SET | |
| 31 | HOUSING SET TW100D/TD090D | |
| 31 | HOUSING SET TW100D/TD090D |
