DA 392 DW/

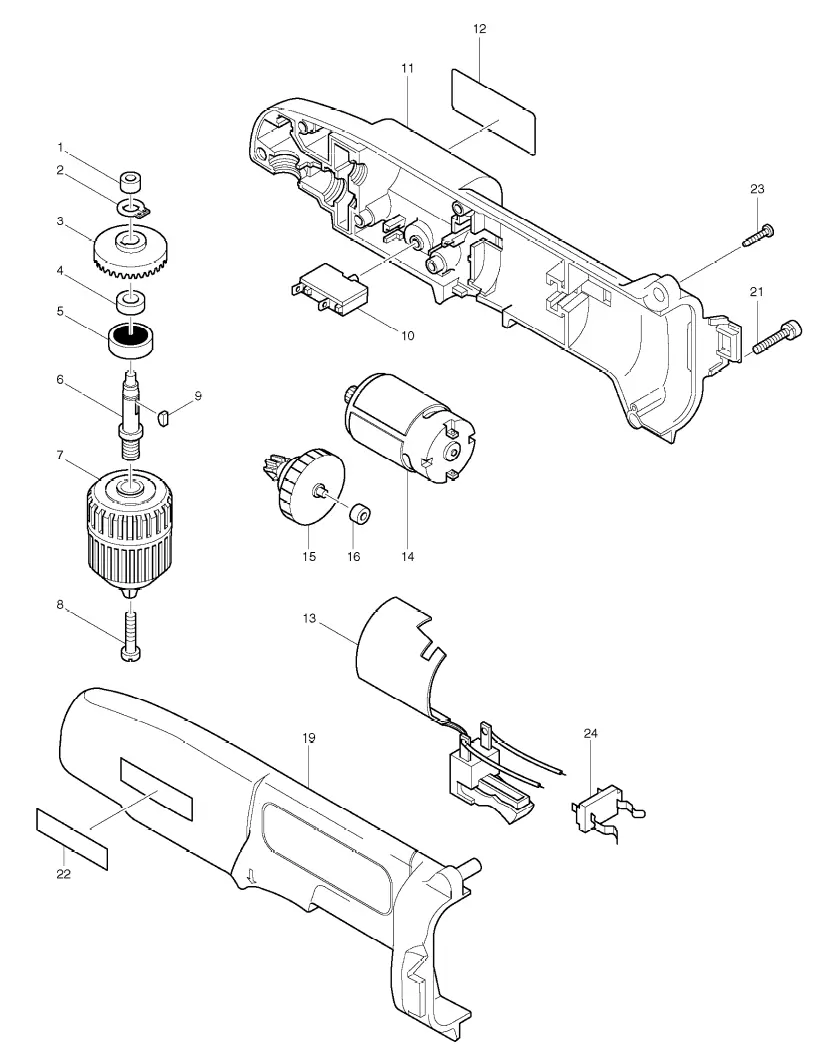

Деталировочная схема
Деталировочная схема
| П-п | Арт | Название |
|---|---|---|
| 1 | PLANE BEARING 5 | |
| 2 | RETAINING RING S-8 | |
| 3 | SPIRAL BEVEL GEAR 36 | |
| 4 | RING 8 | |
| 5 | BALL BEARING 608LLB | |
| 6 | SPINDLE | |
| 7 | KEYLESS DRILL CHUCK 10 INC. 8 | |
| 8 | PAN HEAD SCREW M5X22 | |
| 9 | WOODRUFF KEY 3 | |
| 10 | OVER CURRENT RELAY BC51 | |
| 11 | HOUSING SET INC. 19,22 | |
| 12 | NAME PLATE DA392D | |
| 13 | SWITCH TG55B-142 | |
| 14 | DC MOTOR | |
| 15 | GEAR COMPLETE | |
| 16 | PLANE BEARING 4 | |
| 19 | HOUSING SET INC. 11,22 | |
| 21 | PAN HEAD SCREW M4X22 | |
| 22 | MAKITA LABEL | |
| 23 | TAPPING SCREW BIND PT 3X16 | |
| 24 | BATTERY HOLDER | |
| A01 | BATTERY COVER | |
| A02 | BATTERY 9120 SET | |
| A03 | PLASTIC CARRYING CASE | |
| E03 | LINE FILTER |
