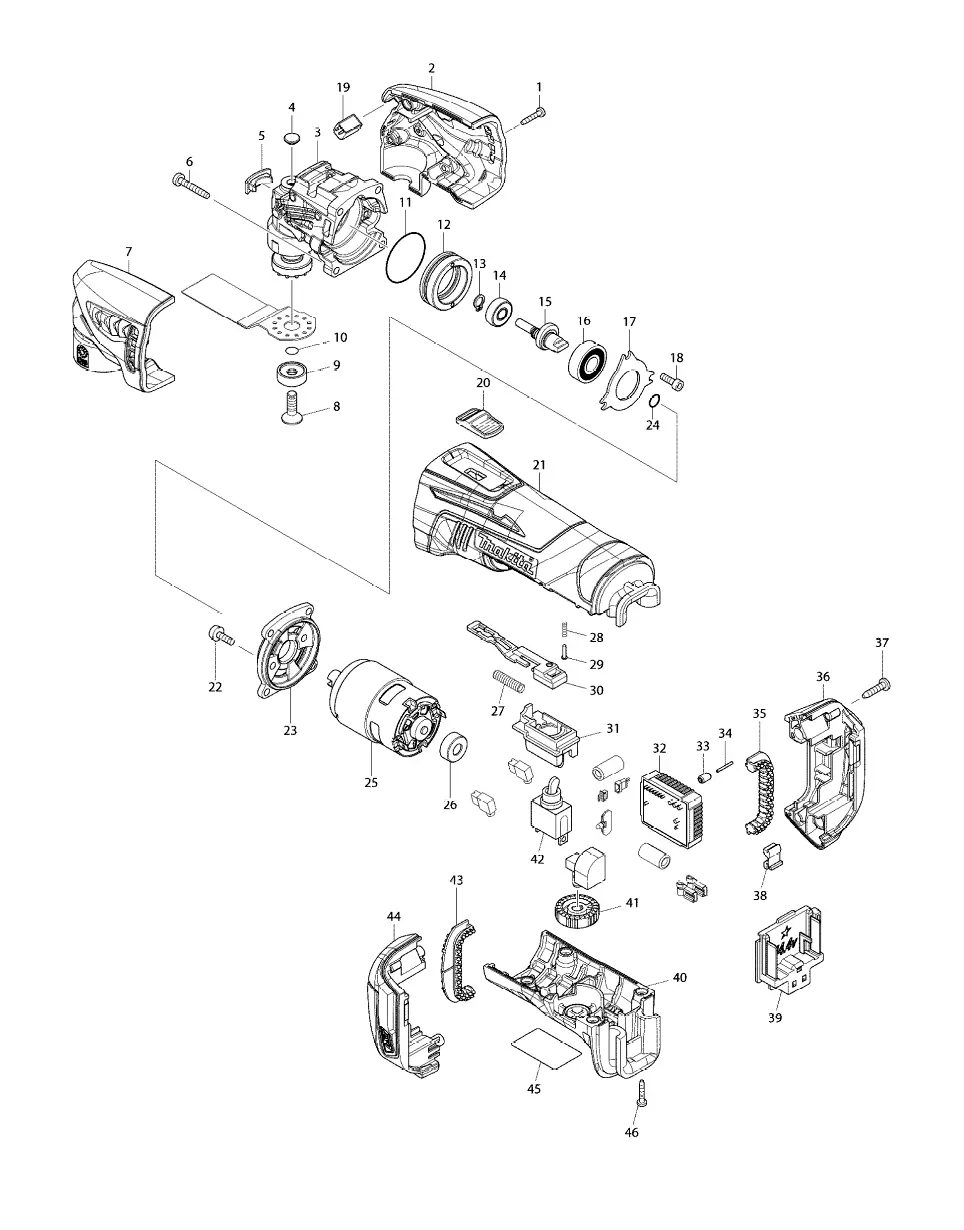

Деталировочная схема
Деталировочная схема
| П-п | Арт | Название |
|---|---|---|
| 1 |  |
TAPPING SCREW 3X16 |
| 2 |  |
HEAD COVER SET INC. 7 |
| 3 |  |
CRANK HOUSING COMPLETE |
| 4 |  |
CRANK HOUSING CAP B |
| 5 |  |
CRANK HOUSING CAP A |
| 6 |  |
TAPPING SCREW 4X25 |
| 7 |  |
HEAD COVER SET INC. 2 |
| 8 |  |
HEX.SOCKET C.S.H.SCREW M6X20 |
| 9 |  |
OUTER FLANGE 22 |
| 10 |  |
O RING 5 |
| 11 |  |
O RING 33 |
| 12 |  |
BEARING BOX |
| 13 |  |
RETAINING RING S-7 |
| 14 |  |
SPHERE BEARING 706 |
| 15 |  |
CRANK SHAFT |
| 16 |  |
BALL BEARING 6000DDW |
| 17 |  |
BEARING RETAINER |
| 18 |  |
HEX. SOCKET HEAD BOLT M4X12 |
| 19 |  |
LED CIRCUIT |
| 20 |  |
SWITCH KNOB |
| 21 |  |
MOTOR HOUSING |
| 22 |  |
PAN HEAD SCREW M4X12 |
| 23 |  |
HOUSING COVER |
| 24 |  |
O RING 8 |
| 25 |  |
DC MOTOR |
| 26 |  |
CAP |
| 27 |  |
COMPRESSION SPRING 5 |
| 28 |  |
COMPRESSION SPRING 3 |
| 29 |  |
RIVET 2 |
| 30 |  |
SWITCH LEVER |
| 31 |  |
SWITCH CASE |
| 32 |  |
CONTROLLER UNIT |
| 33 |  |
RUBBER PIN 5 |
| 34 |  |
PIN 1.5 |
| 35 |  |
CUSHION RUBBER |
| 36 |  |
BATTERY HOUSING SET INC. 44 |
| 37 |  |
TAPPING SCREW 4X18 |
| 38 |  |
CUSHION |
| 39 |  |
TERMINAL |
| 40 |  |
HANDLE COVER |
| 41 | DIAL 28 | |
| 42 | SWITCH | |
| 43 | CUSHION RUBBER | |
| 44 | BATTERY HOUSING SET INC. 36 | |
| 45 | BTM40 NAME PLATE | |
| 46 | TAPPING SCREW 3X16 | |
| A01 | HEX. WRENCH 5 | |
| A02 | DC18RC FAST CHARGER | |
| A03 | BATTERY BL1430 SET | |
| A04 | BATTERY COVER | |
| A05 | PLASTIC CASE COMPLETE | |
| A06 | BTM40RFE PLASTIC CASE LABEL | |
| A07 | TOOL SET L | |
| A08 | ADAPTER A SET | |
| A09 | SEGMENT SAW BLADE 85 TMA006 | |
| A10 | SEGMENT SAW BLADE 85 TMA007 | |
| A11 | PLUNGE CUT SAW BLADE 28 TMA009 | |
| A12 | PLUNGE CUT SAW BLADE 32 TMA010 | |
| A13 | PLUNGE CUT SAW BLADE 32 TMA012 | |
| A14 | PLUNGE CUT SAW BLADE 10 TMA017 | |
| A15 | SCRAPER 52 FLEXIBLE TMA019 | |
| A16 | ABRASIVEPAPER DELTA RED 60 | |
| A17 | ABRASIVEPAPER DELTA RED 100 | |
| A18 | ABRASIVEPAPER DELTA RED 150 | |
| A19 | SANDING PAD | |
| A20 | TOOL BOX | |
| A21 | ABRASIVEPAPER DELTA RED 100 | |
| A22 | ABRASIVEPAPER DELTA RED 150 | |
| A23 | SANDING PAD | |
| A24 | TOOL BOX |
