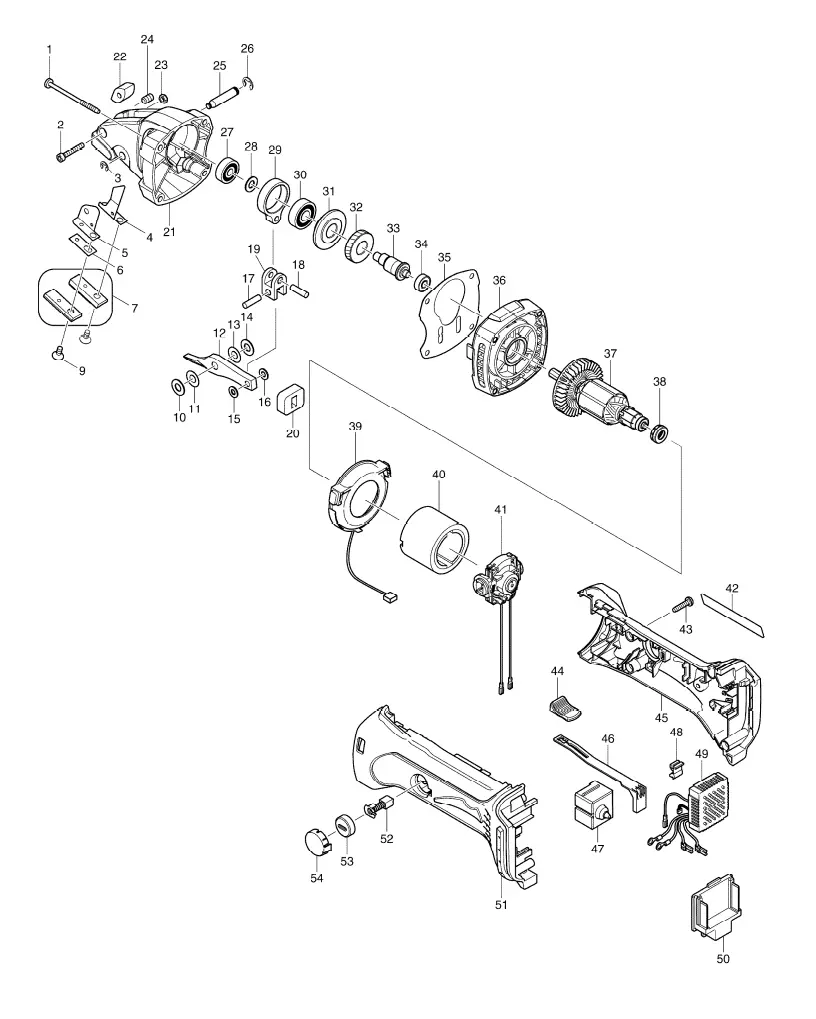

Деталировочная схема
Деталировочная схема
| П-п | Арт | Название |
|---|---|---|
| 1 | TAPPING SCREW 4X50 | |
| 2 | HEX. SOCKET HEAD BOLT M4X25 | |
| 3 | STOP RING E-4 | |
| 4 | SLIP PLATE L | |
| 5 | SLIP PLATE R | |
| 6 | SPACER | |
| 7 | SIDE BLADE SET | |
| 9 | HEX. SOCKET HEAD BOLT M5X10 | |
| 10 | TEFLON WASHER 7 | |
| 11 | THIN WASHER 7 | |
| 12 | CENTER BLADE | |
| 13 | THIN WASHER 7 | |
| 14 | TEFLON WASHER 7 | |
| 15 | FLAT WASHER 5 | |
| 16 | FLAT WASHER 5 | |
| 17 | PIN 5 | |
| 18 | PIN 5 | |
| 19 | LINK | |
| 20 | DUST COVER | |
| 21 | CRANK HOUSING COMPLETE | |
| 22 | BLOCK | |
| 23 | HEX. LOCK NUT M4-7 | |
| 24 | H.S.SET SCREW(FLAT POINT)M6X10 | |
| 25 | PIN 7 | |
| 26 | STOP RING E-6 | |
| 27 | BALL BEARING 627DDW фото1 фото2 | |
| 28 | FLAT WASHER 7 | |
| 29 | ROD | |
| 30 | BALL BEARING 6000ZZ | |
| 31 | SEALING SCREW | |
| 32 | HELICAL GEAR 34 | |
| 33 | CRANK SHAFT | |
| 34 | BALL BEARING 696ZZ | |
| 35 | GASKET | |
| 36 | GEAR HOUSING COMPLETE | |
| 37 | ARMATURE | |
| 38 | RUBBER RING 13 | |
| 39 | LED CIRCUIT | |
| 40 | YOKE UNIT | |
| 41 | ENDBELL COMPLETE | |
| 42 | BJS100 NAME PLATE | |
| 43 | TAPPING SCREW 4X18 | |
| 44 | SWITCH KNOB | |
| 45 | HOUSING SET INC. 51 | |
| 46 | SWITCH LEVER | |
| 47 | SWITCH 1246.3223 | |
| 48 | CUSHION | |
| 49 | CONTROLLER | |
| 50 | TERMINAL | |
| 51 | HOUSING SET INC. 45 | |
| 52 | CARBON BRUSH CB-430 | |
| 53 | BRUSH HOLDER CAP | |
| 54 | HOLDER CAP COVER | |
| A01 | HEX. WRENCH 3 | |
| A02 | DC18RA FAST CHARGER | |
| A03 | BATTERY BL1430 SET | |
| A04 | BATTERY COVER | |
| A05 | PLASTIC CARRYING CASE |
