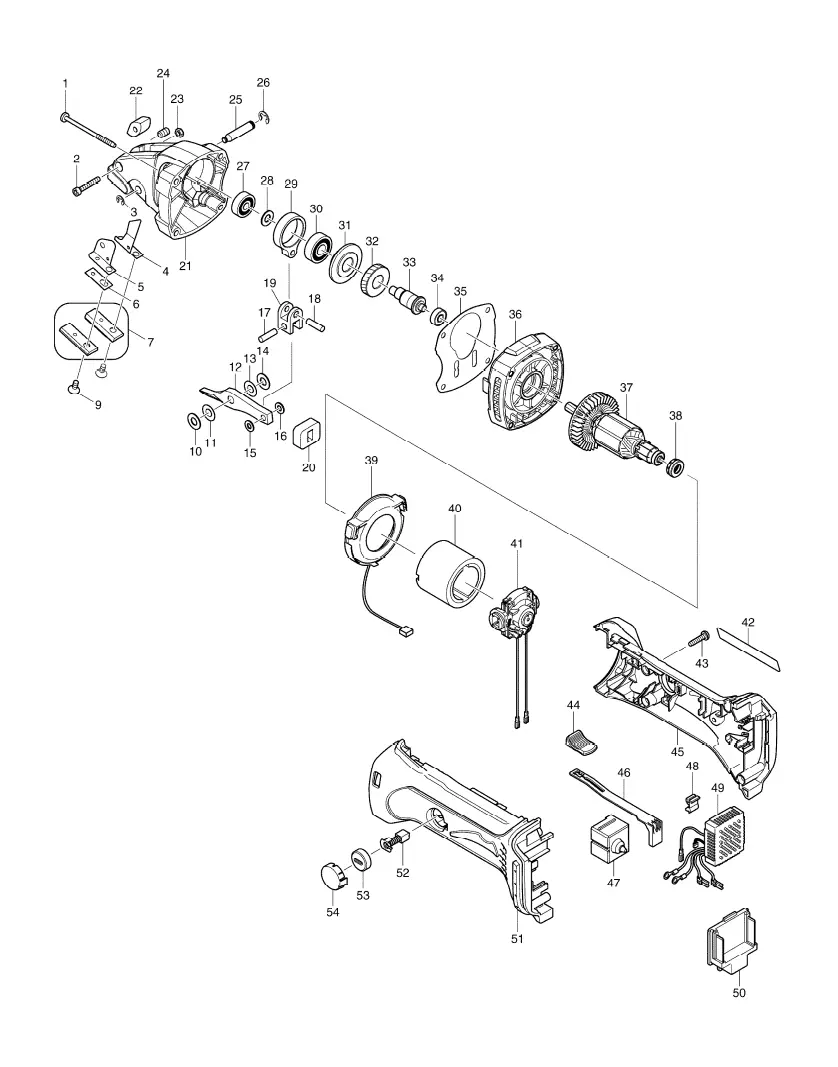

Деталировочная схема
Деталировочная схема
| П-п | Арт | Название |
|---|---|---|
| 1 | TAPPING SCREW 4X50 | |
| 2 | HEX. SOCKET HEAD BOLT M4X25 | |
| 3 | STOP RING E-4 | |
| 4 | SLIP PLATE R | |
| 5 | SLIP PLATE L | |
| 6 | SPACER | |
| 7 | SIDE BLADE SET | |
| 9 | HEX. SOCKET HEAD BOLT M5X10 | |
| 10 | TEFLON WASHER 7 | |
| 11 |  |
THIN WASHER 7 |
| 12 |  |
CENTER BLADE |
| 13 |  |
THIN WASHER 7 |
| 14 |  |
TEFLON WASHER 7 |
| 15 |  |
FLAT WASHER 5 |
| 16 |  |
FLAT WASHER 5 |
| 17 |  |
PIN 5 |
| 18 |  |
PIN 5 |
| 19 |  |
LINK |
| 20 |  |
DUST COVER |
| 21 |  |
CRANK HOUSING COMPLETE |
| 22 |  |
BLOCK |
| 23 |  |
HEX. LOCK NUT M4-7 |
| 24 |  |
H.S.SET SCREW(FLAT POINT)M6X10 |
| 25 |  |
PIN 7 |
| 26 |  |
STOP RING E-6 |
| 27 |  |
BALL BEARING 627DDW |
| 28 |  |
FLAT WASHER 7 |
| 29 |  |
ROD |
| 30 |  |
BALL BEARING 6000ZZ |
| 31 |  |
SEALING SCREW |
| 32 |  |
HELICAL GEAR 34 |
| 33 |  |
CRANK SHAFT |
| 34 |  |
BALL BEARING 696ZZ |
| 35 |  |
GASKET |
| 36 |  |
GEAR HOUSING COMPLETE |
| 37 |  |
ARMATURE |
| 38 |  |
RUBBER RING 13 |
| 39 |  |
LED CIRCUIT |
| 40 |  |
YOKE UNIT |
| 41 |  |
ENDBELL COMPLETE |
| 42 |  |
BJS101 NAME PLATE |
| 43 |  |
TAPPING SCREW 4X18 |
| 44 |  |
SWITCH KNOB |
| 45 |  |
HOUSING SET INC. 51 |
| 46 |  |
SWITCH LEVER |
| 47 |  |
SWITCH 1246.3223 |
| 48 |  |
CUSHION |
| 49 |  |
CONTROLLER |
| 50 |  |
TERMINAL |
| 51 |  |
HOUSING SET INC. 45 |
| 52 |  |
CARBON BRUSH CB-430 |
| 53 |  |
BRUSH HOLDER CAP |
| 54 |  |
HOLDER CAP COVER |
| A01 |  |
HEX. WRENCH 3 |
| A02 |  |
DC18RC FAST CHARGER |
| A03 |  |
BATTERY BL1830 SET |
| A04 |  |
BATTERY COVER |
| A05 |  |
PLASTIC CASE COMPLETE |
