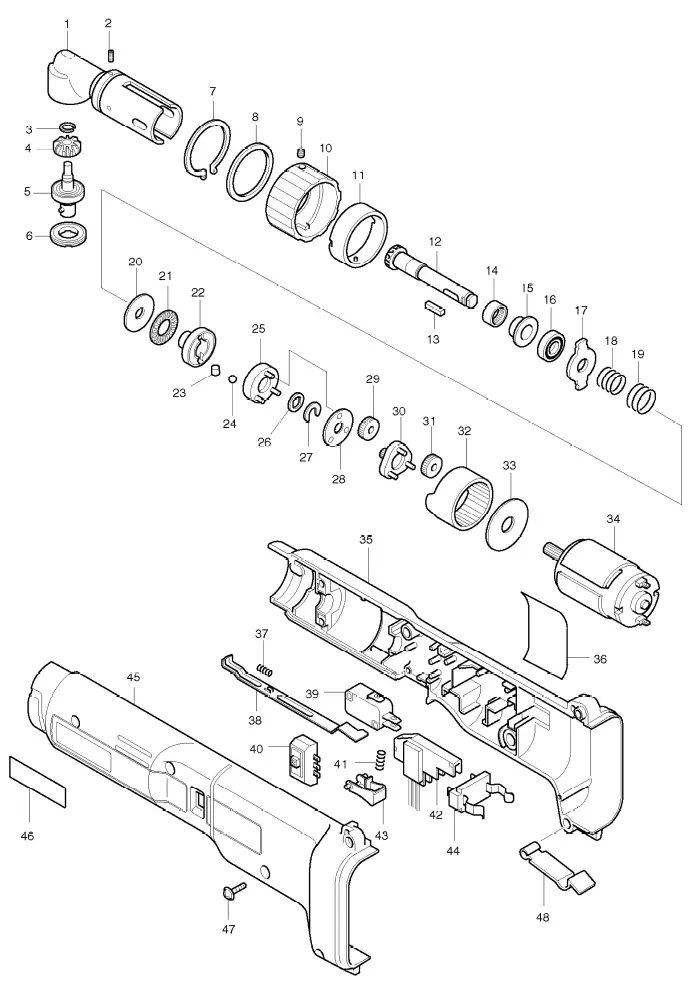

6706 D Деталировка
6706 D Деталировка
| П-п | Арт | Название |
|---|---|---|
| 1 | HEAD COMPLETE | |
| 2 | SPRING PIN 3-6 | |
| 3 | RETAINING RING S-7 | |
| 4 | ZEROL BEVEL GEAR 14 | |
| 5 | SPINDLE COMPLETE | |
| 6 | BEARING RETAINER 13-23 | |
| 7 | RETAINING RING S-34 | |
| 8 | FLAT WASHER 34 | |
| 9 | T.S.SET SCREW(CUP POINT)M4X6 | |
| 10 | CHANGE RING | |
| 11 | LOCK SLEEVE COMPLETE | |
| 12 | ZEROL BEVEL GEAR 13 | |
| 13 | KEY 4 | |
| 14 | NEEDLE BEARING 1212 | |
| 15 | SPACER | |
| 16 | BALL BEARING 6000LLB | |
| 17 | SLIDE PLATE | |
| 18 | COMPRESSION SPRING 15 | |
| 19 | COMPRESSION SPRING 20 | |
| 20 | FLAT WASHER 12 | |
| 21 | THRUST NEEDLE GAUGE 1224 | |
| 22 | RETAINER | |
| 23 | PIN 4 | |
| 24 | STEEL BALL 6 | |
| 25 | HOLDER COMPLETE | |
| 26 | LOCK WASHER 10 | |
| 27 | (U) PLATE | |
| 28 | PLATE | |
| 29 | SPUR GEAR 28 | |
| 30 | SPUR GEAR 11 COMPLETE | |
| 31 | SPUR GEAR 28 | |
| 32 | INTERNAL GEAR 67 | |
| 33 | FLAT WASHER 12 | |
| 34 | DC MOTOR 9.6V | |
| 35 | HOUSING SET INC. 45, 46 | |
| 36 | NAME PLATE 6706D | |
| 37 | COMPRESSION SPRING 2 | |
| 38 | LEVER | |
| 39 | SWITCH V15-1A6-IN | |
| 40 | SWITCH C3BC-BC | |
| 41 | COMPRESSION SPRING 4 | |
| 42 | CONTROL CIRCUIT | |
| 43 | SWITCH LEVER | |
| 44 | BATTERY HOLDER | |
| 45 | HOUSING SET INC. 35, 46 | |
| 46 | MAKITA LABEL | |
| 47 | PAN HEAD SCREW M4X22 | |
| 48 | SET PLATE |
