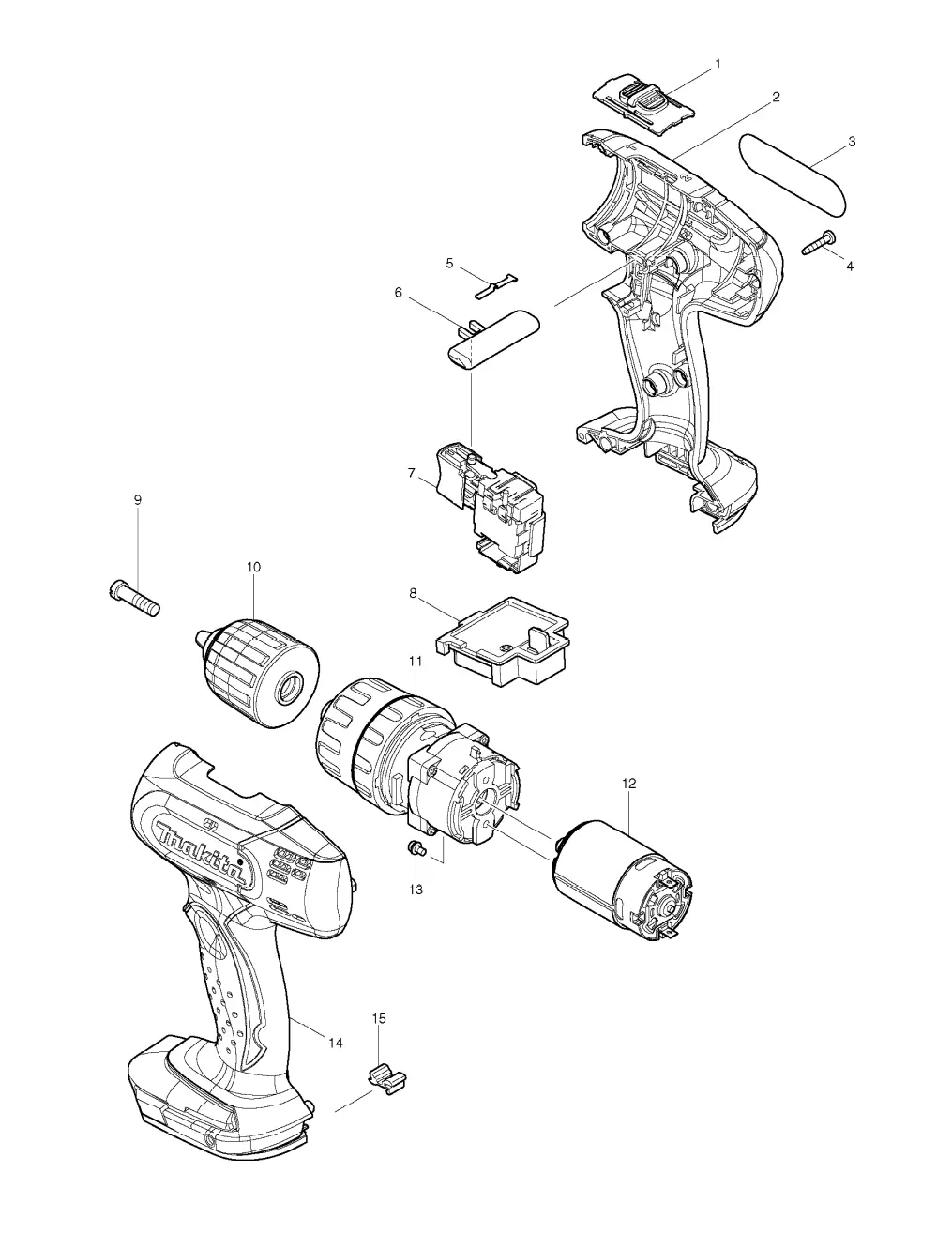

Деталировочная схема
Деталировочная схема
| П-п | Арт | Название |
|---|---|---|
| 1 |  |
SPEED CHANGE LEVER ASS\\\'Y |
| 2 |  |
HOUSING SET INC. 14 |
| 3 |  |
BHP343 NAME PLATE |
| 4 |  |
TAPPING SCREW BIND PT 3X16 |
| 5 |  |
LEAF SPRING |
| 6 |  |
F/R CHANGE LEVER |
| 7 |  |
SWITCH UNIT |
| 8 |  |
TERMINAL |
| 9 |  |
FLAT HEAD SCREW M6X22 |
| 10 |  |
KEYLESS DRILL CHUCK 10 |
| 11 |  |
GEAR ASSEMBLY |
| 12 |  |
DC MOTOR |
| 13 |  |
PAN HEAD SCREW M3X6 |
| 14 |  |
HOUSING SET INC. 2 |
| 15 |  |
CUSHION |
| A01 |  |
BIT 2-65 |
| A02 |  |
DC18RC FAST CHARGER |
| A03 |  |
BATTERY BL1430 SET |
| A04 |  |
BATTERY COVER |
| A05 |  |
PLASTIC CARRYING CASE |
