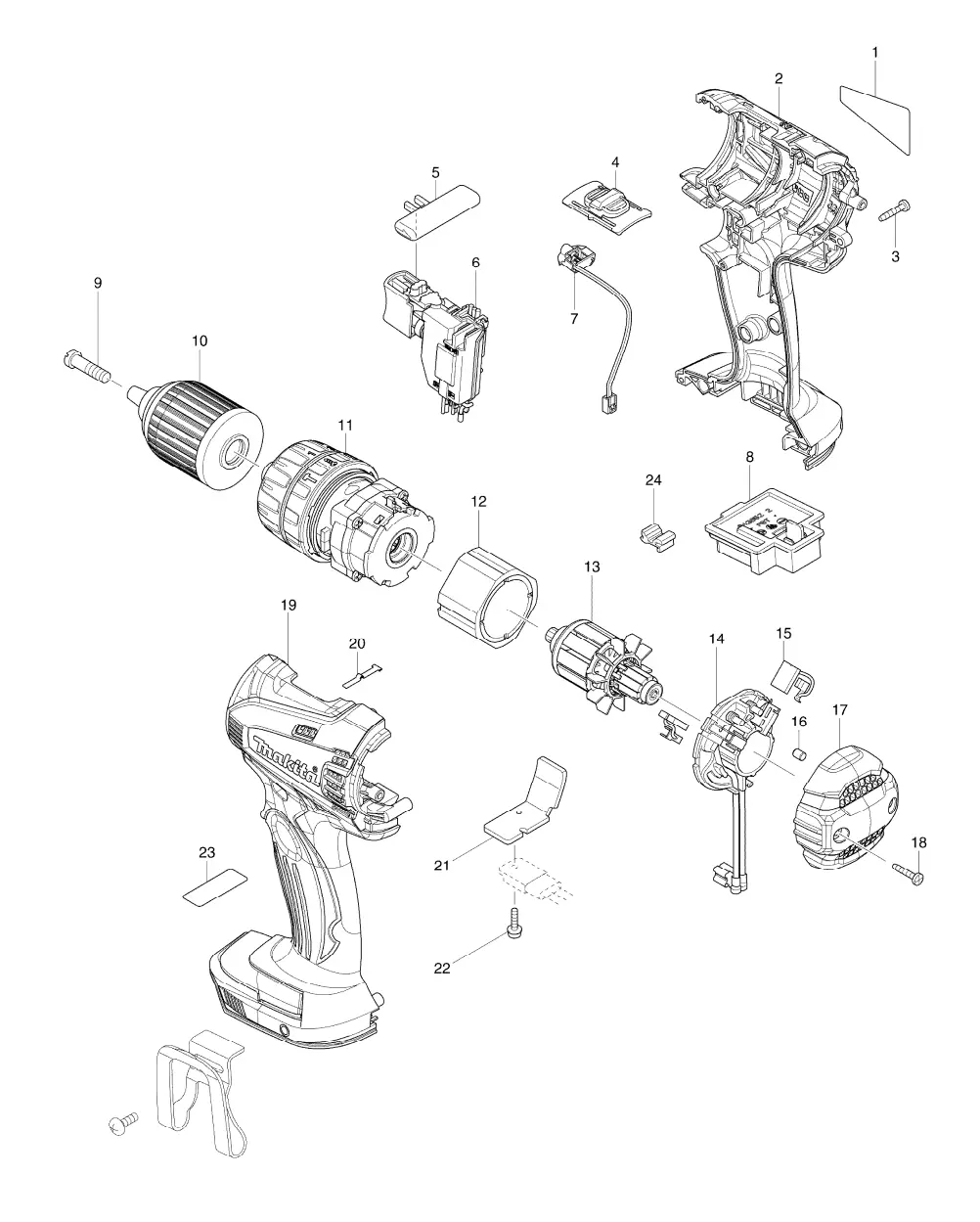

Деталировочная схема
Деталировочная схема
| П-п | Арт | Название |
|---|---|---|
| 1 | BHP456 NAME PLATE | |
| 2 | HOUSING SET INC. 19 | |
| 3 | TAPPING SCREW 3X16 | |
| 4 | SPEED CHANGE LEVER ASSY. (NEW) | |
| 5 | F/R CHANGE LEVER | |
| 6 | SWITCH (NEW) | |
| 7 | LED CIRCUIT (NEW) | |
| 8 | TERMINAL | |
| 9 | FLAT HEAD SCREW M6X22 | |
| 10 | KEYLESS DRILL CHUCK 13 | |
| 11 | GEAR ASSY. (NEW) | |
| 12 | YOKE UNIT (NEW) | |
| 13 | ARMATURE | |
| 14 | BRUSH HOLDER COMPL. (NEW) | |
| 15 | CARBON BRUSH CB-440 | |
| 16 | RUBBER PIN 4 | |
| 17 | REAR COVER | |
| 18 | TAPPING SCREW 3X16 | |
| 19 | HOUSING SET INC. 2 | |
| 20 | LEAF SPRING | |
| 21 | HEAT SINK | |
| 22 | PAN HEAD SCREW M3X10 | |
| 24 | CUSHION (NEW) | |
| A01 | SCREW M4X12 | |
| A02 | HOOK | |
| A03 | BIT 2-45 | |
| A04 | PLASTIC CARRING CASE COMPL. (NEW) | |
| A05 | BATTERY COVER | |
| A06 | DC18RC FAST CHARGER | |
| A07 | BATTERY BL1830 SET | |
| A08 | BHP456RFE PLASTIC CASE LABEL | |
| E01 | LINE FILTER |
