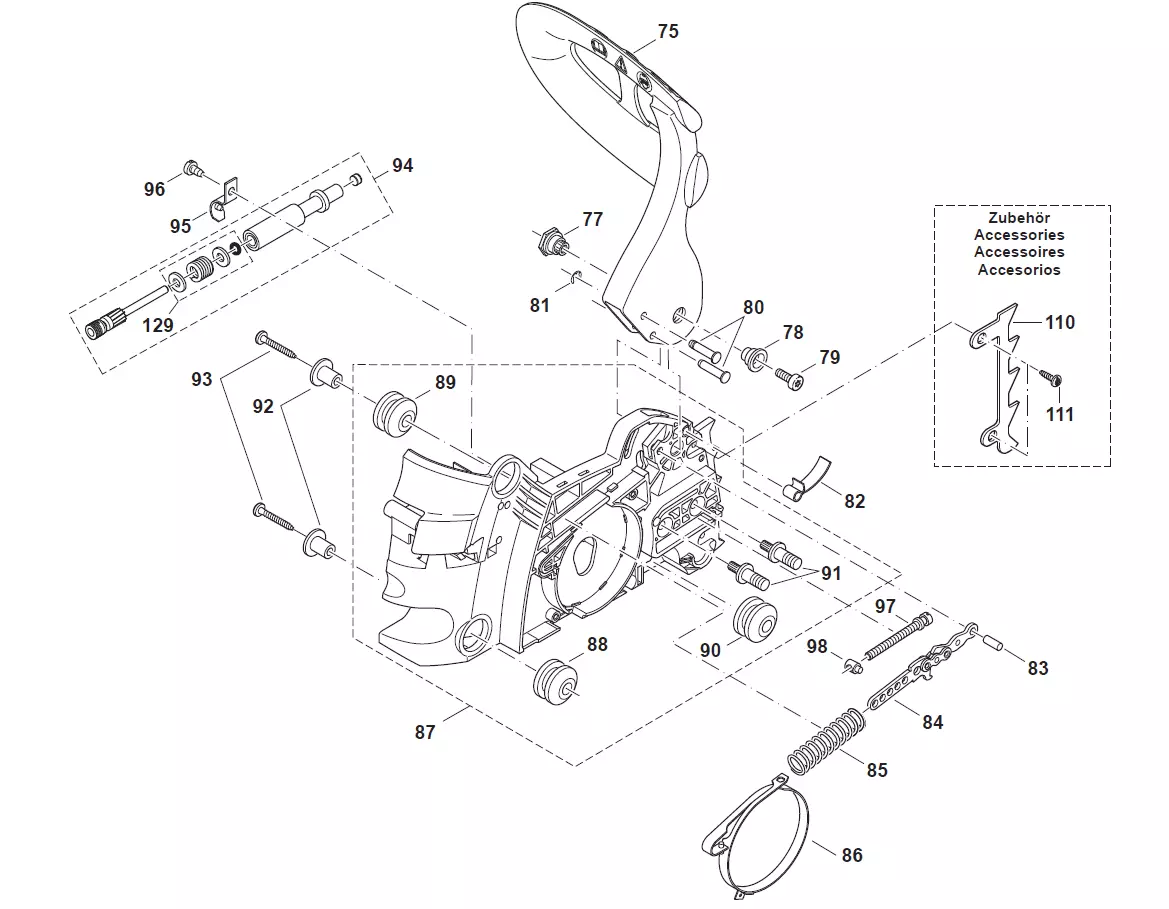

04 Oil pump, chain brake
04 Oil pump, chain brake
| П-п | Арт | Название |
|---|---|---|
| 75 | HAND GUARD BLACK | |
| 77 | BUSH | |
| 78 | BUSH | |
| 79 | SCREW M5x16 | |
| 80 | BOLT 5x22 | |
| 81 | SAFETY WASHER | |
| 82 | SPRING | |
| 83 | CYLINDRICAL PIN | |
| 84 | BRAKE SPRING HOLDER CPL. | |
| 85 | SPRING | |
| 86 | BRAKE SPRING | |
| 87 | MOTOR HOUSING, CPL., BLUE | |
| 88 | RUBBER BUFFER | |
| 89 | RUBBER BUFFER | |
| 90 | RUBBER BUFFER | |
| 91 | BOLT | |
| 92 | FIXING BUSH | |
| 93 | SCREW 5x30 | |
| 94 | OIL PUMP ASSY. | |
| 95 | HOLDER FOR OIL PUMP | |
| 96 | SCREW 3,5x6,5 | |
| 97 | STRAINING SCREW | |
| 98 | NUT WITH PIVOT | |
| 110 | SPIKE BAR ACC. | |
| 111 | SCREW 5x15 ACC. | |
| 129 | REPAIR KIT OIL PUMP |
