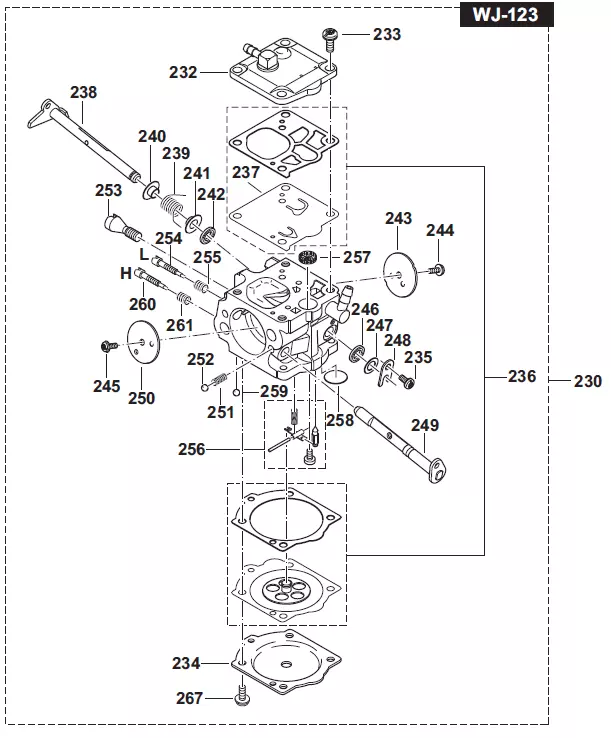

Carburetor
Carburetor
| П-п | Арт | Название |
|---|---|---|
| 230 | Carburetor WJ-123 | |
| 232 | Pump cover cpI. | |
| 233 | Screw | |
| 234 | Diaphragm cover | |
| 235 | Screw | |
| 236 | Set diaphragm / gaskets | |
| 237 | Pump diaphragm | |
| 238 | Throttle shaft | |
| 239 | Spring | |
| 240 |  |
Bushing |
| 241 |  |
Bushing |
| 242 |  |
Packing ring |
| 243 |  |
Throttle shutter |
| 244 |  |
Screw |
| 245 |  |
Screw |
| 246 |  |
Packing ring |
| 247 |  |
Disc |
| 248 |  |
Shaft dip |
| 249 |  |
Shaft |
| 250 |  |
Choke shutter |
| 251 |  |
Locking spring |
| 252 |  |
Locking ball |
| 253 |  |
Idle stop screw |
| 254 |  |
Idle adjustment screw |
| 255 |  |
Spring |
| 256 |  |
Control parts |
| 257 |  |
Screen |
| 258 |  |
Cover disc |
| 259 |  |
Locking ball |
| 260 |  |
Main adjustm. screw |
| 261 |  |
Spring |
| 267 |  |
Screw |
