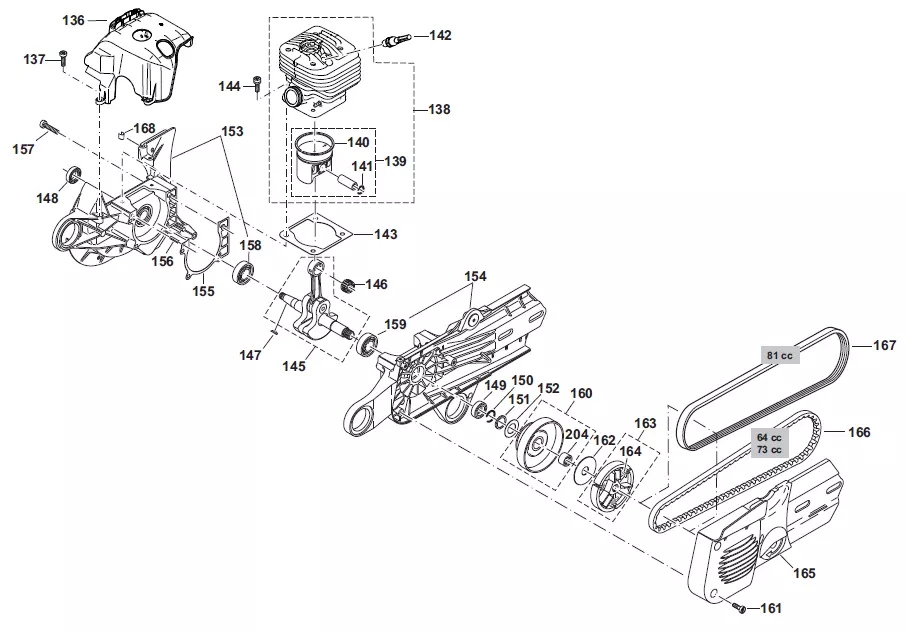

Cylinder, crankshaft, clutch
Cylinder, crankshaft, clutch
| П-п | Арт | Название |
|---|---|---|
| 136 | Hood | |
| 137 | Screw M5x14 | |
| 138 | Cytinder / piston, cpI. 52 HeadDeco | |
| 139 | Piston cpI. 52 | |
| 140 | Piston ring 52 | |
| 141 | Spring ring | |
| 142 | Valve | |
| 143 | Gasket, metal | |
| 144 | Screw M5x23 | |
| 145 | Crankshaft cpI. | |
| 146 | Needle cage | |
| 147 | Key | |
| 148 | Radial ring 015/24x7 | |
| 149 | Radial ring 015/24x7 | |
| 150 | Spring ring | |
| 151 | Stop ring | |
| 152 | Guide disc | |
| 153 | Crankc., mag. Side incl. page 3: pos. 76,205,213 | |
| 154 | Crankc., clutch side | |
| 155 | Gasket | |
| 156 | Clamping pin 3X16 | |
| 157 | Screw M5x30 | |
| 158 | Ball bearing (use glue) | |
| 159 | Ball bearing (use glue) | |
| 160 | Clutch drum assy. 0400m m-80m | |
| 161 | Screw M5x14 | |
| 162 | Disc | |
| 163 | Clutch assy. | |
| 164 | Spring | |
| 165 | Cover | |
| 167 | V-belt ø400m m-80m | |
| 168 | Rubber plate set=35 pcs. | |
| 204 | Needle bush |
