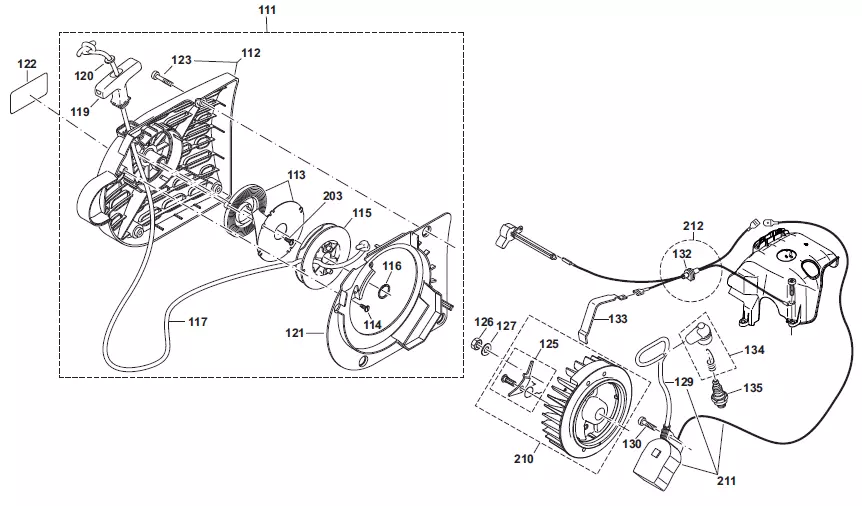

Starter assy., ignition assy.
Starter assy., ignition assy.
| П-п | Арт | Название |
|---|---|---|
| 111 |  |
Starter assy. |
| 112 |  |
Housing |
| 113 |  |
Rewind spring |
| 114 |  |
Screw 3,5x9,5 |
| 115 |  |
Cable drum |
| 116 |  |
Snap ring |
| 117 |  |
Starter rope black o4 x 1000mm |
| 117 |  |
Starter rope o4 x 1000mm |
| 119 |  |
Starter grip |
| 120 |  |
Disc |
| 121 |  |
Air guide plate |
| 122 |  |
Label |
| 123 |  |
Screw M5x20 |
| 125 |  |
Starter ratchet cpI. |
| 126 |  |
Hexagonal nut M8x1 |
| 127 |  |
Spring washer B8 DIN137 |
| 129 |  |
Ignition cable 360mm; 141/8\\\" |
| 130 |  |
Screw M5x20 |
| 132 |  |
Rubber bush |
| 133 |  |
Contact spring |
| 134 |  |
Spark plug cap cpI. |
| 135 |  |
Spark plug |
| 203 |  |
Screw 3,5x9,5 |
| 210 |  |
Flywheel assy. |
| 211 |  |
Ignition coil |
| 212 |  |
Cable with plug |
