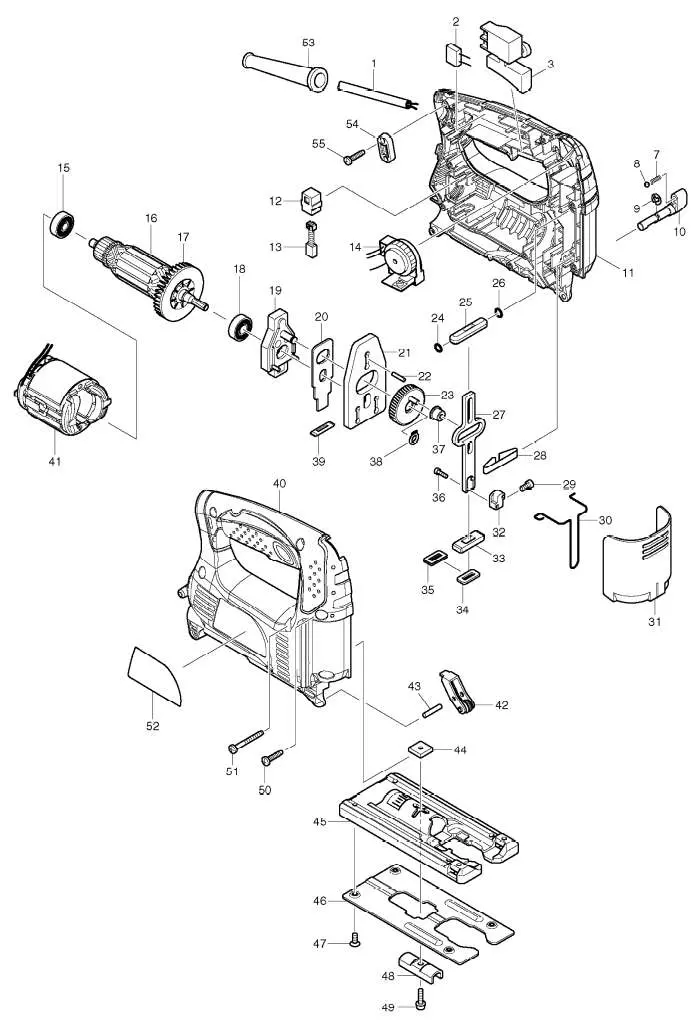

4329 Деталировка
| П-п | Арт | Название |
|---|---|---|
| 1 |  |
POWER SUPPLY CORD 1.0-2-2.0 |
| 2 |  |
NOISE SUPRESSOR |
| 3 |  |
SWITCH SGEL206C-5 |
| 7 |  |
COMPRESSION SPRING 4 |
| 8 |  |
STEEL BALL 4 |
| 9 |  |
STOP RING E-4 |
| 10 |  |
LEVER 18 |
| 11 |  |
HOUSING SET INC. 40 |
| 12 |  |
BRUSH HOLDER 5-8 |
| 13 |  |
CARBON BRUSH CB-64 |
| 14 |  |
CONTROLLER |
| 15 |  |
BALL BEARING 627LLB |
| 16 |  |
ARMATURE ASS\\\\\'Y 220V INC. 15,17,18 |
| 17 |  |
FAN 52 |
| 18 |  |
BALL BEARING 608DDW |
| 19 |  |
BEARING CASE COMPLETE |
| 20 |  |
PUSH PLATE |
| 21 |  |
BALANCE PLATE |
| 22 |  |
PIN 3 |
| 23 |  |
GEAR COMPLETE |
| 24 |  |
O RING 5 |
| 25 |  |
SLIDER GUIDE |
| 26 |  |
O RING 5 |
| 27 |  |
SLIDER |
| 28 |  |
LEAF SPRING |
| 29 |  |
HEX. SOCKET HEAD BOLT M4X8 |
| 30 |  |
SAFETY WIRE |
| 31 |  |
DUST COVER |
| 32 |  |
BLADE CLAMP |
| 33 |  |
SLIDER SUPPORT |
| 34 |  |
POLY URETANE SPONGE SEAL |
| 35 |  |
SEAL PLATE |
| 36 |  |
HEX. SOCKET HEAD BOLT M3X10 |
| 37 |  |
COLLAR SLEEVE |
| 38 |  |
RETAINING RING S-6 |
| 39 |  |
DUST SEAL |
| 40 |  |
HOUSING SET INC. 11 |
| 41 |  |
FIELD 220-240V |
| 42 |  |
RETAINER COMPLETE |
| 43 |  |
PIN 4 |
| 44 |  |
HOLDER |
| 45 |  |
BASE |
| 46 |  |
BASE PLATE |
| 47 |  |
COUNTERSUNK HEAD SCREW M4X8 |
| 48 |  |
CLAMP COMPLETE |
| 49 |  |
HEX. SOCKET HEAD BOLT M4X16 |
| 50 |  |
TAPPING SCREW 4X18 |
| 51 |  |
TAPPING SCREW 4X35 |
| 52 | 4329 NAME PLATE | |
| 53 | CORD GUARD 8-85 | |
| 54 | STRAIN RELIEF | |
| 55 | TAPPING SCREW 4X18 | |
| A01 | JIGSAW BLADE NO.B10 | |
| A02 | HEX. WRENCH 3 |
