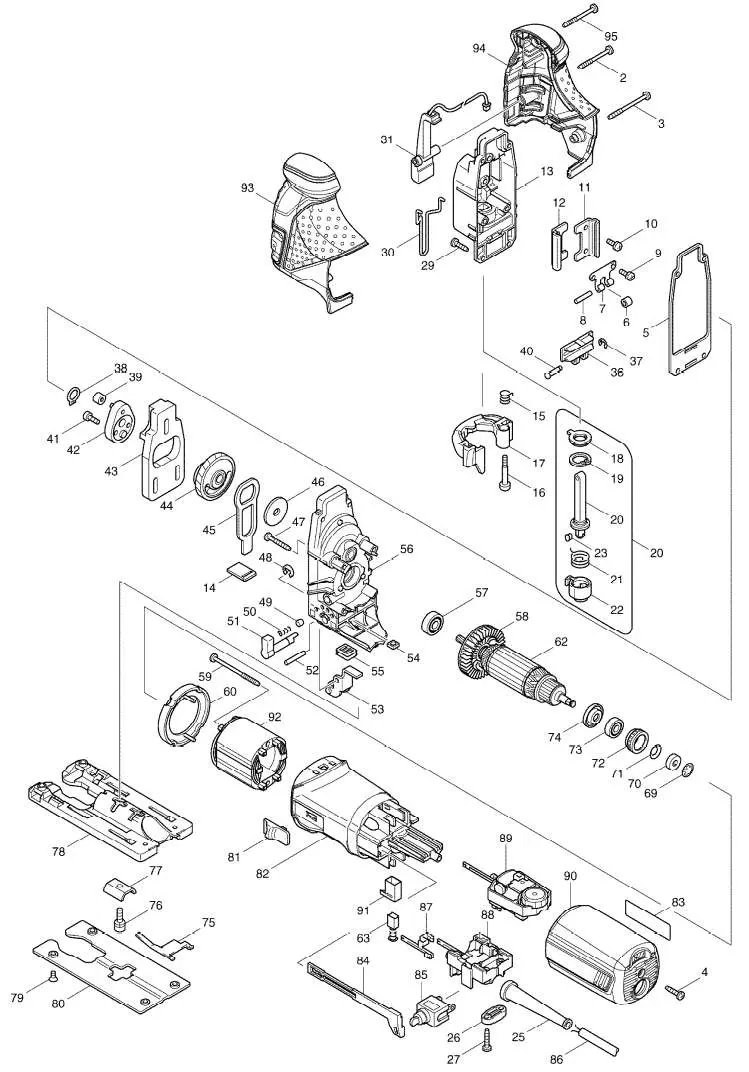

4351 FCT Деталировка
| П-п | Арт | Название |
|---|---|---|
| 2 |  |
TAPPING SCREW 4X40 |
| 3 |  |
TAPPING SCREW 4X50 |
| 4 |  |
TAPPING SCREW 4X18 |
| 5 |  |
PACKING |
| 6 | PLANE BEARING 4 | |
| 7 | LEAF SPRING | |
| 8 | PIN 4 | |
| 9 | PAN HEAD SCREW M4X10 | |
| 10 | PAN HEAD SCREW M4X10 | |
| 11 | LINEAR GUIDE | |
| 12 | LINEAR GUIDE | |
| 13 | GEAR HOUSING COVER COMPLETE | |
| 14 | SEAL PLATE | |
| 15 | TORSION SPRING 6 | |
| 16 | + PAN HEAD SCREW M4 | |
| 17 | TOOL OPENER | |
| 18 | DUST COVER | |
| 19 | RETAINING RING R-18 | |
| 20 | ROD ASS\\\\\'Y INC. 18,19,21-23 | |
| 21 | TORSION SPRING 15 | |
| 22 | BLADE HOLDER | |
| 23 | PUSH PIN | |
| 25 | CORD GUARD 8 | |
| 26 | STRAIN RELIEF | |
| 27 | TAPPING SCREW 4X18 | |
| 29 | TAPPING SCREW CT 4X16 | |
| 30 | SAFETY WIRE | |
| 31 | LED CIRCUIT | |
| 36 | SLIDER | |
| 37 | STOP RING E-3 | |
| 38 | RETAINING RING S-8 | |
| 39 | NEEDLE BEARING 407 | |
| 40 | PIN 4 | |
| 41 | HEX. SOCKET HEAD BOLT M4X12 | |
| 42 | CRANK COMPLETE | |
| 43 | BALANCE PLATE | |
| 44 | GEAR COMPLETE | |
| 45 | PUSH PLATE | |
| 46 | FLAT WASHER 8 | |
| 47 | TAPPING SCREW 4X30 | |
| 48 | STOP RING E-5 | |
| 49 | CAP 5 | |
| 50 | COMPRESSION SPRING 3 | |
| 51 | LEVER 17 | |
| 52 | PIN 4 | |
| 53 | RETAINER COMPLETE | |
| 54 | SQUARE NUT M5-8 | |
| 55 | DUST SEAL | |
| 56 | GEAR HOUSING COMPLETE | |
| 57 | BALL BEARING 608DDW | |
| 58 | FAN 52 | |
| 59 | TAPPING SCREW 4X60 | |
| 60 | BAFFLE PLATE | |
| 62 | ARMATURE ASS\\\\\'Y 220-240V INC. 57,58,73,74 | |
| 63 | CARBON BRUSH CB-419 | |
| 69 | SELF LOCK 6 | |
| 70 | MAGNET SLEEVE | |
| 71 | WAVE WASHER 6 | |
| 72 | RUBBER RING 19 | |
| 73 | BALL BEARING 607LLB | |
| 74 | INSULATION WASHER | |
| 75 | LEAF SPRING | |
| 76 | HEX. SOCKET HEAD BOLT M5X18 | |
| 77 | CRANK PLATE | |
| 78 | BASE | |
| 79 | COUNTERSUNK HEAD SCREW M4X8 | |
| 80 | BASE PLATE | |
| 81 | SWITCH LEVER | |
| 82 | MOTOR HOUSING | |
| 83 | 4351FCT NAME PLATE | |
| 84 | SWITCH ROD | |
| 85 | SWITCH STL115ADF-CD | |
| 86 | POWER SUPPLY CORD 1.0-2-2.5 | |
| 87 | TERMINAL F | |
| 88 | SWITCH BLOCK UNIT | |
| 89 | CONTROLLER | |
| 90 | REAR COVER | |
| 91 | BRUSH HOLDER | |
| 92 | FIELD 220-240V | |
| 93 | HEAD COVER SET INC. 94 | |
| 94 | HEAD COVER SET INC. 93 | |
| 95 | TAPPING SCREW 4X40 | |
| A01 | ANTI-SPLINTERING DEVICE | |
| A02 | COVER PLATE | |
| A03 | JIGSAW BLADE NO.B22 | |
| A04 | JIGSAW BLADE NO.B10 | |
| A05 | JIGSAW BLADE NO.BR13 | |
| A06 | HEX. WRENCH 4 | |
| A07 | PLASTIC CARRYING CASE | |
| A08 | DUST NOZZLE |
