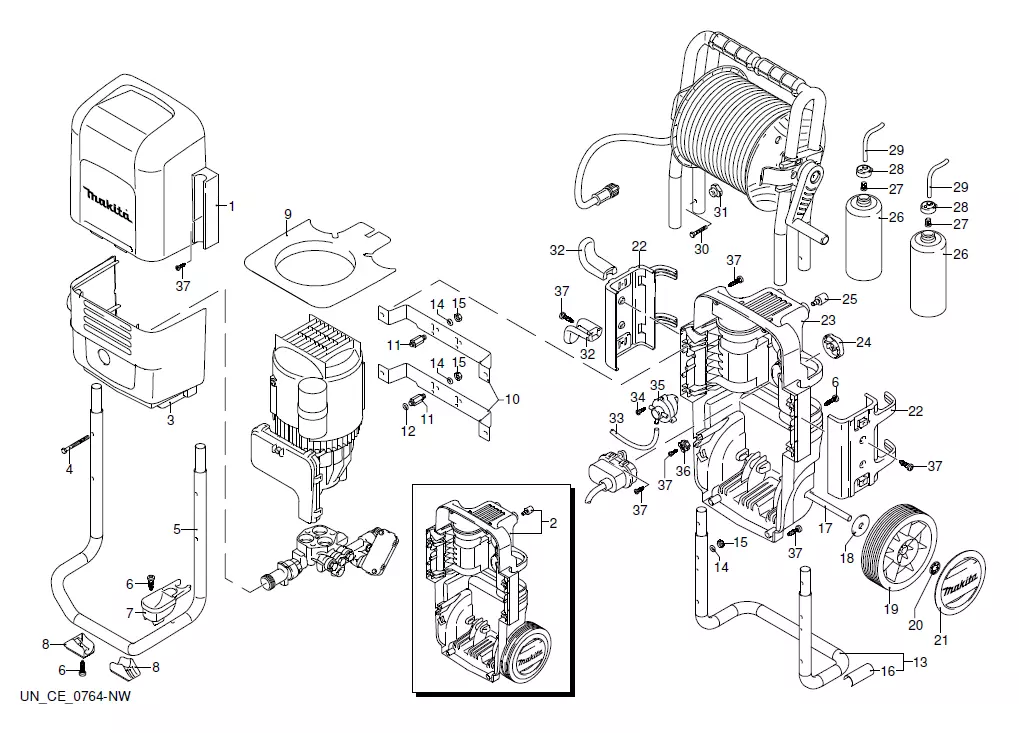

Мойка в разборе
Мойка в разборе
| П-п | Арт | Название |
|---|---|---|
| 1 |  |
Green casing |
| 2 |  |
Base assembly |
| 3 |  |
Green casing |
| 4 |  |
Screw |
| 5 |  |
Frame |
| 6 |  |
Screw |
| 7 |  |
Accessories carrier |
| 8 |  |
Support |
| 9 |  |
Support |
| 10 |  |
Support |
| 11 |  |
Stud bolt |
| 12 |  |
Spacer |
| 13 |  |
Frame |
| 14 |  |
Washer |
| 15 | Nut | |
| 16 | Guard | |
| 17 | Axle | |
| 18 | Washer | |
| 19 | Wheel | |
| 20 | Washer | |
| 21 | Guard | |
| 22 | Accessories carrier | |
| 23 | Base | |
| 24 | Knob | |
| 25 | Rubber foot | |
| 26 | Tank | |
| 27 | Filter | |
| 28 | Plug | |
| 29 | Detergent hose | |
| 30 | Screw | |
| 31 | Knob | |
| 32 | Accessories carrier | |
| 33 | Detergent hose | |
| 34 | Screw | |
| 35 | Detergent regulator | |
| 36 | Cable gland | |
| 37 | Screw |
