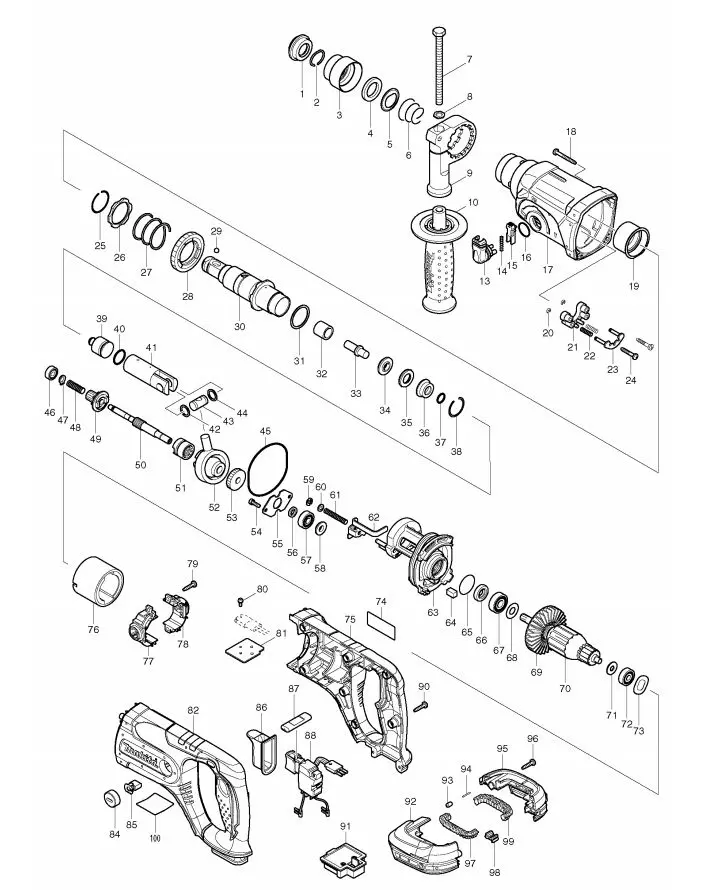

Деталировка
Деталировка
| П-п | Арт | Название |
|---|---|---|
| 1 | CAP 35 HR2020/2440/2450/2432 | |
| 2 | RING SPRING 19 HR2020/2440/245 | |
| 3 | CHUCK COVER HR2020/2440/2450 | |
| 4 | RING 21 HR2020/2440/2450/2432 | |
| 5 | GUIDE WASHER HR2020/2440/2450 | |
| 6 | CONICAL COMP SPRING 21-29 HR20 | |
| 7 | HEX BOLT M8X120 HR2020/2440/24 | |
| 8 | HEX WASHER HP1641/51/HR2440F | |
| 9 | GRIP BASE HP1641/2450/70 | |
| 10 | GRIP 36 COMP HR2230/2460/2470 | |
| 13 | CHANGE LEVER HR2470/BHR202 | |
| 14 | COMPRESSION SPRING 3 BHR162 | |
| 15 | LOCK BUTTON BHR162/HR1830 | |
| 16 | O RING 17 HR2020/2440/2450/243 | |
| 17 | GEAR HOUSING CO HR2470 | |
| 18 | TAPPING SCREW 4X35 HR2230/2460 | |
| 19 | NEEDLE BEARNG CO HR2020/HR2440 | |
| 20 | *EXT E-RING JIS JE-3 10PK | |
| 21 | GUIDE BASE HR2450/HR2432/BHR26 | |
| 22 | *COMPRESSION SPRING 4 5PK | |
| 23 | LOCK PLATE COMP HR2450/HR2432 | |
| 24 | *TAPPING SCREW 4X25 GA9020S | |
| 25 | RING SPRING HR2450T/HR2470/BHR | |
| 26 | WASHER 31 BHR262/H2470/BHR202 | |
| 26 | WASHER 31 BHR262/H2470/BHR202 | |
| 27 | COMPRESSION SPRING HR2450/BHR2 | |
| 28 | SPUR GEAR 51 HR2450T/BHR262 | |
| 29 | *STEEL BALL 7.0 10PK | |
| 30 | TOOL HOLDER CO HR2470/BHR262 | |
| 31 | FLAT WASHER 28 HR2020/2440/245 | |
| 32 | SLEEVE 9 HR2811FT/2230/2460/70 | |
| 33 | IMPACT BOLT BHR240/HR2230/2460 | |
| 34 | RING 10 HR2450T/BHR262/BHR262 | |
| 35 | CUSHION RING 13 BHR240/262 | |
| 36 | O RING CASE HR2020/2440/2450 | |
| 37 | O RING 9 HR2020/2440/2450/2432 | |
| 38 | RING SPRING 28 HR2020/2440/245 | |
| 39 | STRIKER HR2020/2440/2450/2432 | |
| 40 | O RING 16 HK0500/HR2450/2432 | |
| 41 | PISTON CYLINDER HR2470/BHR202 | |
| 42 | *NARROW WASHER 12 HR2400 5PK | |
| 43 | PISTON JOINT HR2020/2440/2450 | |
| 44 | *NARROW WASHER 12 HR2400 5PK | |
| 45 | O RING 63 BHR240 | |
| 46 | BALL BEARING 606ZZ HR2410/2450 | |
| 47 | *EXT DIN 471 CIRCLIP-7 10PK | |
| 48 | *COMPRESSION SPRING 5PK | |
| 49 | SPUR GEAR HR2470/BHR202/BHR262 | |
| 50 | CAM SHAFT BHR240/BHR202 | |
| 51 | CLUTCH CAM BHR262/BHR262T/BHR2 | |
| 51 | CLUTCH CAM BHR262/BHR262T/BHR2 | |
| 52 | SWASH BEARING 10 BHR200S/HR202 | |
| 53 | HELICAL GEAR 25 BHR240/BHR202 | |
| 54 | HEX S H BOLT M4X12 HR2020/2440 | |
| 55 | BEARING RETAINER HR2020/2440/2 | |
| 56 | FLAT WASHER 8 HR2020/2440/2450 | |
| 57 | BALL BEARING 608ZZCNM/2A HM131 | |
| 58 | RING 8 HR2020/2440/2450/2432 | |
| 59 | *EXT E-RING JIS E-4 10PK | |
| 60 | *FLAT WASHER 5 DIN125-A 10PK | |
| 61 | *COMPRESSION SPRING 6 5PK | |
| 62 | CHANGE PLATE HR2450/HR2432 | |
| 63 | INNER HOUSING CO HR2470/BHR202 | |
| 63 | INNER HOUSING CO HR2470/BHR202 | |
| 64 | FELT BHR240/HR2230/HR2460/2470 | |
| 65 | O RING 26 3901/4101RH | |
| 66 | OIL SEAL 10 HR2230/2460/2470 | |
| 67 | BALL BEARING 60002RDCM HM1317C | |
| 68 | *THIN BLUE WASHER 10 HR 5PK | |
| 70 | ARMATURE 18V BHR202 | |
| 71 | *THIN BLUE WASHER JS1600 5PK | |
| 72 | BALL BEARING 627DDW HP1641 | |
| 73 | WAVE WASHER BHR202 | |
| 74 | NAME PLATE BHR241 | |
| 75 | HOUSING SET BHR241 | |
| 76 | YOKE UNIT BTW200/BUH550RZ | |
| 77 | BRUSH HOLDER COMP BHR241 | |
| 77 | BRUSH HOLDER COMP BHR241 | |
| 78 | BRUSH HOLDER BHR241 | |
| 79 | *TAPPING SCREW M4X18 10PK | |
| 80 | *PAN HD SCREW M3X8 10PK | |
| 81 | HEAT SINK BTW200/6960DZ/6908DW | |
| 82 | HOUSING SET BHR241 | |
| 84 | HOLDER CAP BJR182/BSS611/BHR26 | |
| 85 | CARBON BRUSH CB-432 | |
| 86 | SWITCH COVER BHR202 | |
| 87 | F/R CHANGE LEVER BHR202 | |
| 88 | SWITCH TG553FSB-7 BHR240/242 | |
| 88 | SWITCH TG553FSB-7 BHR240/242 | |
| 90 | *TAPPING SCREW M4X18 10PK | |
| 91 | TERMINAL BTM50/BHS630/BDA351 | |
| 91 | TERMINAL BTM50/BHS630/BDA351 | |
| 92 | BATTERY HOUSING SET BHR202/241 | |
| 92 | BATTERY HOUSING SET BHR202/241 | |
| 93 | RUBBER PIN 5 BTW251/BHR202 | |
| 94 | PIN 1.5 BTW251/BHR202 | |
| 95 | BATTERY HOUSING SET BHR202/241 | |
| 95 | BATTERY HOUSING SET BHR202/241 | |
| 96 | *TAPPING SCREW M4X18 10PK | |
| 97 | CUSHION RUBBER BTW450/BHR202 | |
| 98 | CUSHION BST220/1/BTW251/BHR202 | |
| 99 | CUSHION RUBBER BTW450/BHR202 | |
| 100 | BHR241 SERIAL NUMBER LABEL | |
| 100 | BHR241 SERIAL NUMBER LABEL |
