Деталировка

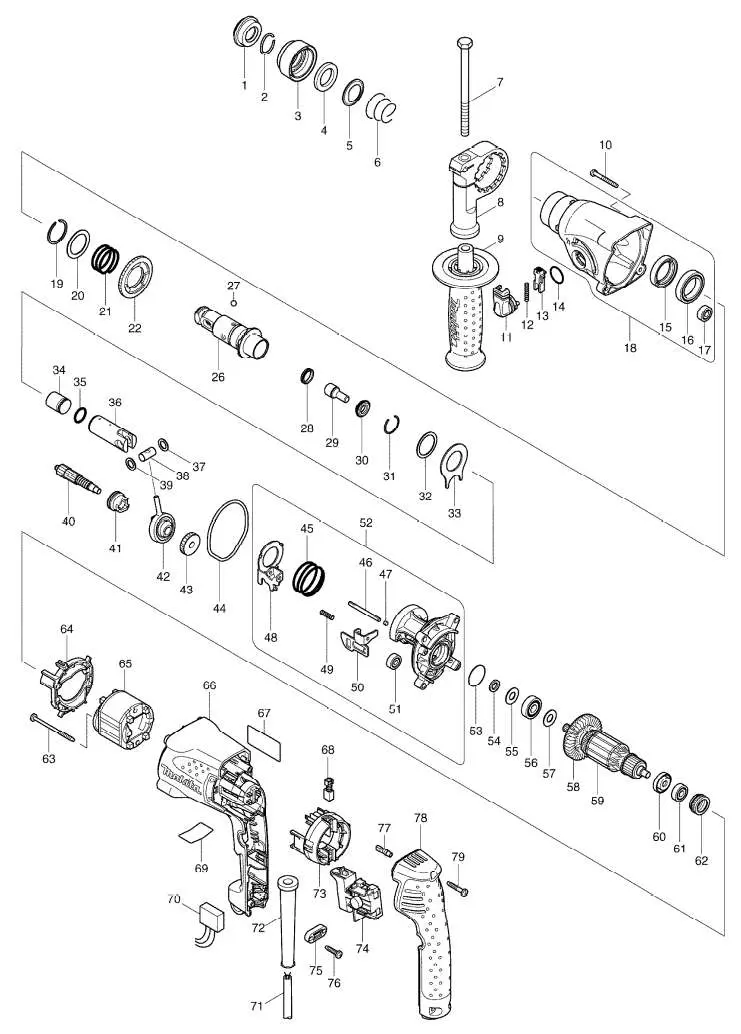

Деталировка
| П-п | Арт | Название |
|---|---|---|
| 1 | CAP 35 | |
| 2 | RING SPRING 19 | |
| 3 | CHUCK COVER | |
| 4 | RING 21 | |
| 5 | GUIDE WASHER | |
| 6 | CONICAL COMP. SPRING 21-29 | |
| 7 | HEX. BOLT M8X120 | |
| 8 | GRIP BASE | |
| 9 | GRIP 36 COMPLETE | |
| 10 | TAPPING SCREW 4X35 | |
| 11 | CHANGE LEVER COMPLETE | |
| 12 | COMPRESSION SPRING 3 | |
| 13 | LOCK BUTTON | |
| 14 | O RING 17 | |
| 15 | OIL SEAL 25 | |
| 16 | BALL BEARING 6805LLB | |
| 17 | BALL BEARING 606ZZ | |
| 18 | GEAR HOUSING COMPLETE INC. 15-17 | |
| 19 | RETAINING(EXT) WR-25 | |
| 20 | FLAT WASHER 25 | |
| 21 | COMPRESSION SPRING 25 | |
| 22 | SPUR GEAR 46 | |
| 26 | TOOL HOLDER COMPLETE | |
| 27 | STEEL BALL 7.0 | |
| 28 | X RING 13 | |
| 29 | IMPACT BOLT | |
| 30 | RING 11 | |
| 31 | RING SPRING 22 | |
| 32 | FLAT WASHER 24 | |
| 33 | JOINT PLATE | |
| 34 | STRIKER | |
| 35 | O RING 14 | |
| 36 | PISTON CYLINDER | |
| 37 | FLAT WASHER 9 | |
| 38 | PISTON JOINT | |
| 39 | FLAT WASHER 9 | |
| 40 | SPUR GEAR 10 | |
| 41 | CLUTCH CAM | |
| 42 | SWASH BEARING 9 | |
| 43 | HELICAL GEAR 23 | |
| 44 | SEAL RING | |
| 45 | COMPRESSION SPRING 32 | |
| 46 | PIN 4 | |
| 47 | FELT 4X3 | |
| 48 | CHANGE PLATE | |
| 49 | COMPRESSION SPRING 3 | |
| 50 |  |
STOPPER PLATE |
| 51 |  |
BALL BEARING 606ZZ |
| 52 |  |
INNER HOUSING COMPLETE INC. 45-51 |
| 53 |  |
O RING 24 |
| 54 |  |
FLAT WASHER 9 |
| 55 |  |
FLAT WASHER 9 |
| 56 |  |
BALL BEARING 609LLU |
| 57 |  |
FLAT WASHER 9 |
| 58 |  |
FAN 52 |
| 59 |  |
ARMATURE ASS\\\\\'Y 240V INC. 56-58,60,61 |
| 60 |  |
INSULATION WASHER |
| 61 |  |
BALL BEARING 607DDW |
| 62 |  |
LABYRINTH RUBBER RING 19 |
| 63 |  |
TAPPING SCREW 4X50 |
| 64 |  |
BAFFLE PLATE |
| 65 |  |
FIELD 220-240V |
| 66 |  |
MOTOR HOUSING |
| 67 |  |
HR1830 NAME PLATE |
| 68 |  |
CARBON BRUSH CB-419 |
| 69 |  |
HR1830 SERIAL NO.LABEL |
| 70 |  |
NOISE SUPPRESSOR |
| 71 |  |
POWER SUPPLY CORD 1.0-2-4.0 |
| 72 |  |
CORD GUARD 10 |
| 73 |  |
BRUSH HOLDER UNIT |
| 74 |  |
SWITCH TG843TB-2 |
| 75 |  |
STRAIN RELIEF |
| 76 |  |
TAPPING SCREW 4X18 |
| 77 |  |
RECEPTACLE SLEEVE |
| 78 |  |
HANDLE COVER |
| 79 |  |
TAPPING SCREW 4X25 |
| 80 |  |
CLEAR LABEL |
| 81 |  |
CLEAR LABEL |
| A01 |  |
DEPTH GAUGE |
| A02 |  |
HR1830 MODEL NO. LABEL |
| A03 |  |
PLASTIC CARRYING CASE |
