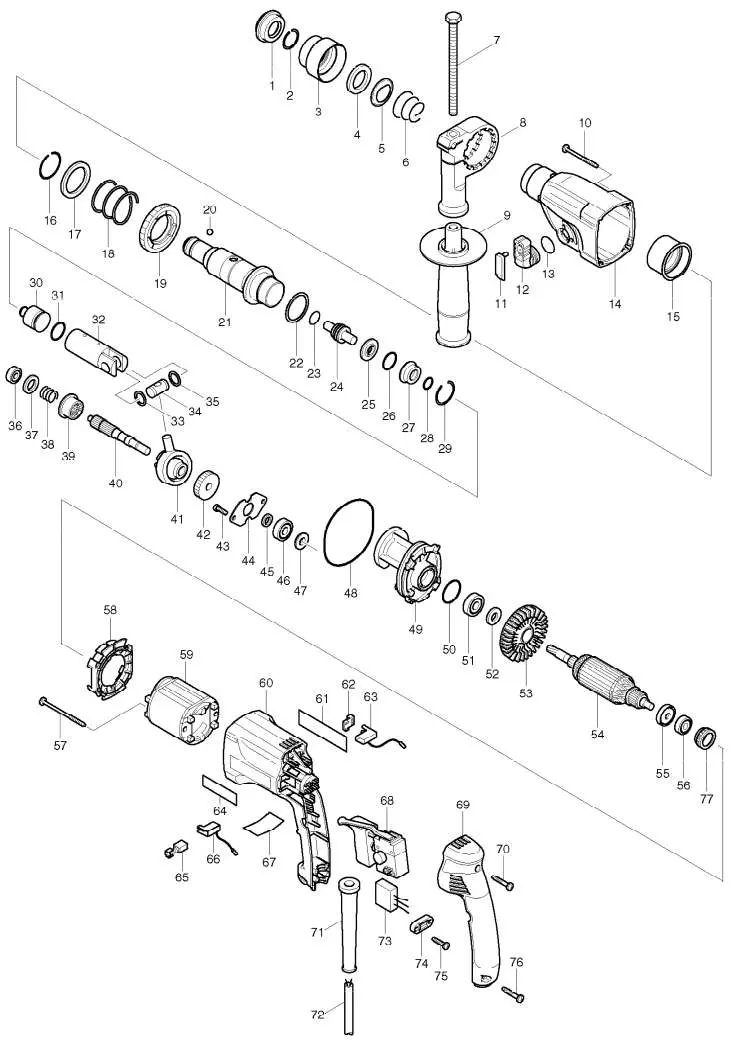

Деталировка
Деталировка
| П-п | Арт | Название |
|---|---|---|
| 1 | CAP 35 | |
| 2 | RING SPRING 19 | |
| 3 | CHUCK COVER | |
| 4 | RING 21 | |
| 5 | GUIDE WASHER | |
| 6 | CONICAL COMP. SPRING 21-29 | |
| 7 | HEX. BOLT M8X120 | |
| 8 | GRIP BASE | |
| 9 | GRIP 36 ASS\\\\\'Y INC. 7,8,78 | |
| 10 | TAPPING SCREW 4X45 | |
| 11 | CAP | |
| 12 | CHANGE LEVER ASS\\\\\'Y INC. 11,39 | |
| 13 | O RING 17 | |
| 14 | GEAR HOUSING SET INC. 15 | |
| 15 | NEEDLE BEARING COMPLETE | |
| 16 | RING SPRING 28 | |
| 17 | WASHER 30 | |
| 18 | COMPRESSION SPRING 31 | |
| 19 | SPUR GEAR 51 | |
| 20 | STEEL BALL 7.0 | |
| 21 | TOOL HOLDER COMPLETE фото | |
| 22 | FLAT WASHER 28 | |
| 23 | O RING 12 | |
| 24 | IMPACT BOLT | |
| 25 | RING 9 | |
| 26 | O RING 15 | |
| 27 | O RING CASE | |
| 28 | O RING 9 | |
| 29 | RING SPRING 28 | |
| 30 | STRIKER | |
| 31 | O RING 16 | |
| 32 | PISTON CYLINDER | |
| 33 | FLAT WASHER 12 | |
| 34 | PISTON JOINT | |
| 35 | FLAT WASHER 12 | |
| 36 | BALL BEARING 606ZZ | |
| 37 | FLAT WASHER 12 | |
| 38 | COMPRESSION SPRING 12 | |
| 39 | CLUTCH CAM | |
| 40 | SPUR GEAR 10 | |
| 41 | SWASH BEARING 10 | |
| 42 | HELICAL GEAR 26 | |
| 43 | HEX. SOCKET HEAD BOLT M4X12 | |
| 44 | BEARING RETAINER | |
| 45 | FLAT WASHER 8 | |
| 46 | BALL BEARING 608ZZ | |
| 47 | RING 8 | |
| 48 | O RING 68 | |
| 49 | INNER HOUSING COMPLETE | |
| 50 | O RING 24 | |
| 51 | BALL BEARING 609LLU | |
| 52 | FLAT WASHER 9 | |
| 53 | FAN 60 | |
| 54 | ARMATURE ASS\\\\\'Y 240V INC. 51,52,53,55,56 | |
| 55 | INSULATION WASHER | |
| 56 | BALL BEARING 607LLB | |
| 57 | TAPPING SCREW 4X60 | |
| 58 | BAFFLE PLATE | |
| 59 | FIELD 220-240V | |
| 60 | MOTOR HOUSING | |
| 61 | NAME PLATE HR2020 | |
| 62 | SPACER | |
| 63 | BRUSH HOLDER | |
| 65 | CARBON BRUSH CB-419 | |
| 66 | BRUSH HOLDER | |
| 67 | HR2020 SERIAL N0.LABEL | |
| 68 | SWITCH TG813TLB-1 | |
| 69 | HANDLE COVER COMPLETE | |
| 70 | TAPPING SCREW 4X25 | |
| 71 | CORD GUARD 10 | |
| 72 | POWER SUPPLY CORD 1.0-2-4.0 | |
| 73 | NOISE SUPPRESSOR | |
| 74 | STRAIN RELIEF | |
| 75 | TAPPING SCREW 4X18 | |
| 76 | TAPPING SCREW 4X25 | |
| 77 | RUBBER RING 19 | |
| 78 | HEX. WASHER | |
| 79 | FLAT WASHER 9 | |
| 80 | STOPPER PLATE | |
| 81 | COMPRESSION SPRING 5 | |
| 82 | STOP RING E-4 | |
| A01 | DEPTH GAUGE | |
| A02 | PLASTIC CARRYING CASE |
