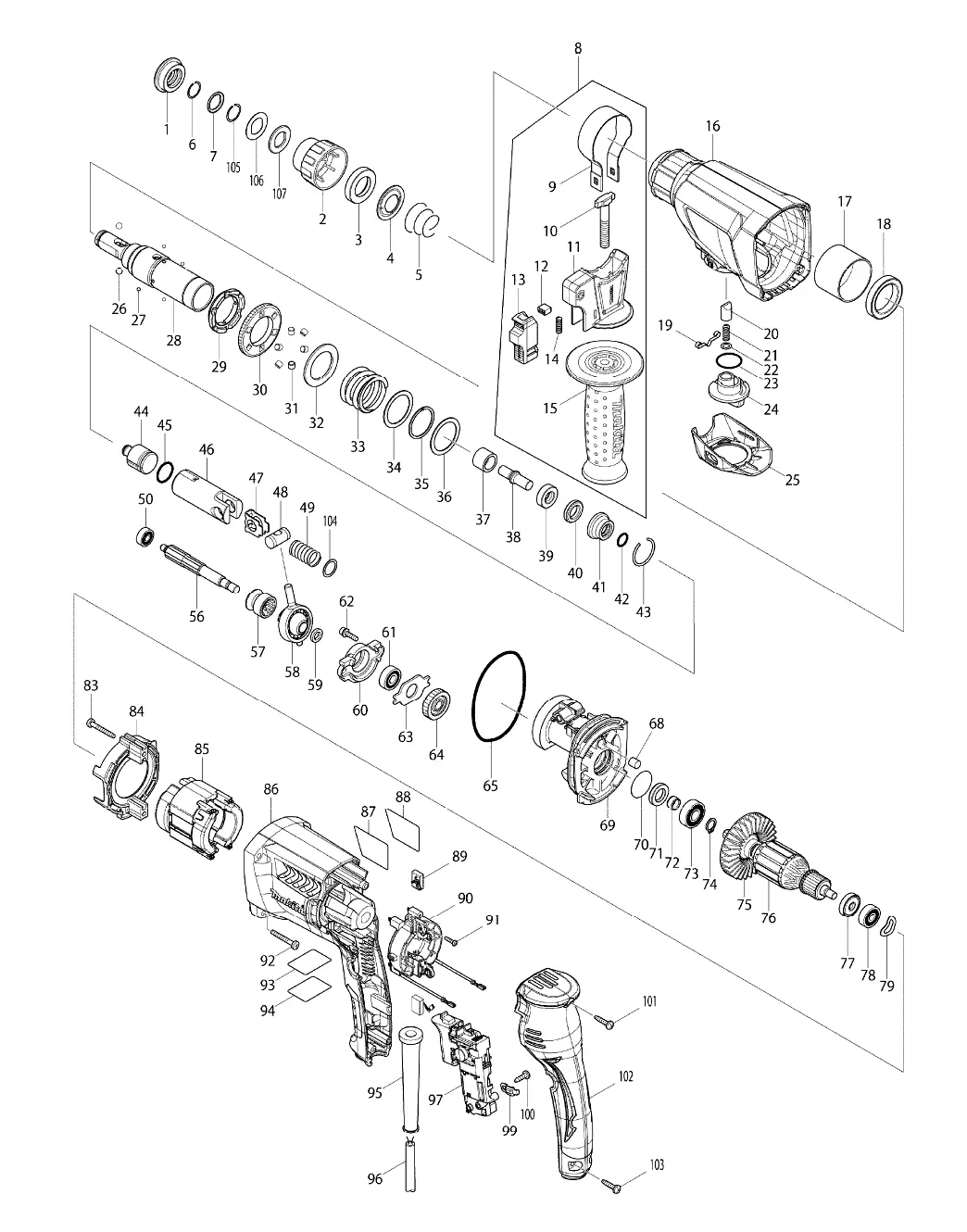

Деталировочная схема
Деталировочная схема
| П-п | Арт | Название |
|---|---|---|
| 1 |  |
CAP 35 |
| 2 |  |
CHUCK COVER |
| 3 |  |
RING 21 |
| 4 | GUIDE WASHER | |
| 5 | CONICAL COMP. SPRING 21-29 | |
| 6 | RING SPRING 14 | |
| 7 | WASHER 16 | |
| 8 | GRIP ASSEMBLY INC. 9-15 | |
| 9 | GRIP SPRING 50 | |
| 10 | SQUARE BOLT M8X50 | |
| 11 | GRIP BASE | |
| 12 | RACK | |
| 13 | LOCK BUTTON COMPL. (NEW) | |
| 14 | COMPRESSION SPRING 4 | |
| 15 | GRIP 36 COMPLETE | |
| 16 | GEAR HOUSING COMPLETE | |
| 17 | CUP SLEEVE | |
| 18 | BALL BEARING 6806LLU | |
| 19 | LEAF SPRING | |
| 20 | PUSH CORN | |
| 21 | COMPRESSION SPRING 5 | |
| 22 | THIN WASHER 6 | |
| 23 | O RING 21 | |
| 24 | CHANGE LEVER B | |
| 25 | CHANGE LEVER COVER B | |
| 26 | STEEL BALL 7.0 | |
| 27 | STEEL BALL 3 | |
| 28 | TOOL HOLDER COMPLETE | |
| 29 | DRIVING FLANGE | |
| 30 | SPUR GEAR 51 | |
| 31 | PIN 6 | |
| 32 | FLAT WASHER 30 | |
| 33 | COMPRESSION SPRING 31 | |
| 34 | FLAT WASHER 30 | |
| 35 | SPIRO LOCK WASHER 30 | |
| 36 | FLAT WASHER 30 | |
| 37 | SLEEVE 9A | |
| 38 | IMPACT BOLT A | |
| 39 | RING 10A | |
| 40 | CUSHION RING 12 | |
| 41 | O-RING CASE A | |
| 42 | O RING 9 | |
| 43 | RING SPRING 28 | |
| 44 | STRIKER | |
| 45 | O RING 17.5 | |
| 46 | PISTON CYLINDER | |
| 47 | GUIDE PLATE | |
| 48 | PISTON JOINT | |
| 49 | COMPRESSION SPRING 14 | |
| 50 | BALL BEARING 606ZZ | |
| 56 | SPUR GEAR 10 | |
| 57 | CLUTCH CAM B | |
| 58 | SWASH BEARING 10 | |
| 59 | FLAT WASHER 8 | |
| 60 | BEARING BOX | |
| 61 | BALL BEARING 608ZZ | |
| 62 | HEX. SOCKET HEAD BOLT M4X16 | |
| 63 | BEARING RETAINER | |
| 64 | HELICAL GEAR 26 | |
| 65 | O-RING 68 | |
| 68 | FELT | |
| 69 | INNER HOUSING COMPL. (NEW) | |
| 70 | O RING 26 | |
| 71 | OIL SEAL 12 (NEW) | |
| 72 | SLEEVE 9 | |
| 73 | BALL BEARING 6000LLB | |
| 74 | RETAINING RING S-10 | |
| 75 | FAN 65 | |
| 76 | ARMATURE ASSEMBLY 240V INC. 72-75,77,78 | |
| 77 | INSULATION WASHER | |
| 78 | BALL BEARING 627DDW | |
| 79 | WAVE WASHER 15 | |
| 83 | TAPPING SCREW 4X30 | |
| 84 | BAFFLE PLATE | |
| 85 | FIELD 240V | |
| 86 | MOTOR HOUSING | |
| 87 | HR2300 NAME PLATE | |
| 88 | CLEAR LABEL | |
| 89 | CARBON BRUSH CB-325 | |
| 90 | BRUSH HOLDER UNIT | |
| 91 | TAPPING SCREW 3X12 | |
| 92 | TAPPING SCREW 4X30 | |
| 93 | HR2300 SERIAL NO.LABEL | |
| 94 | CLEAR LABEL | |
| 95 | CORD GUARD 10 | |
| 96 | POWER SUPPLY CORD 1.0-2-4.0 | |
| 97 | SWITCH | |
| 99 | STRAIN RELIEF | |
| 100 | TAPPING SCREW 4X14 | |
| 101 | TAPPING SCREW 4X18 | |
| 102 | HANDLE COVER | |
| 103 | TAPPING SCREW 4X18 | |
| 104 | FLAT WASHER 14 | |
| 105 | RING SPRING 15 | |
| 106 | FLAT WASHER 17 | |
| 107 | RUBBER WASHER 16 | |
| A01 | DEPTH GAUGE | |
| A02 | PLASTIC CARRYING CASE | |
| A03 | HR2300 PLASTIC CASE LABEL | |
| A04 | DUSTCUP SET |
