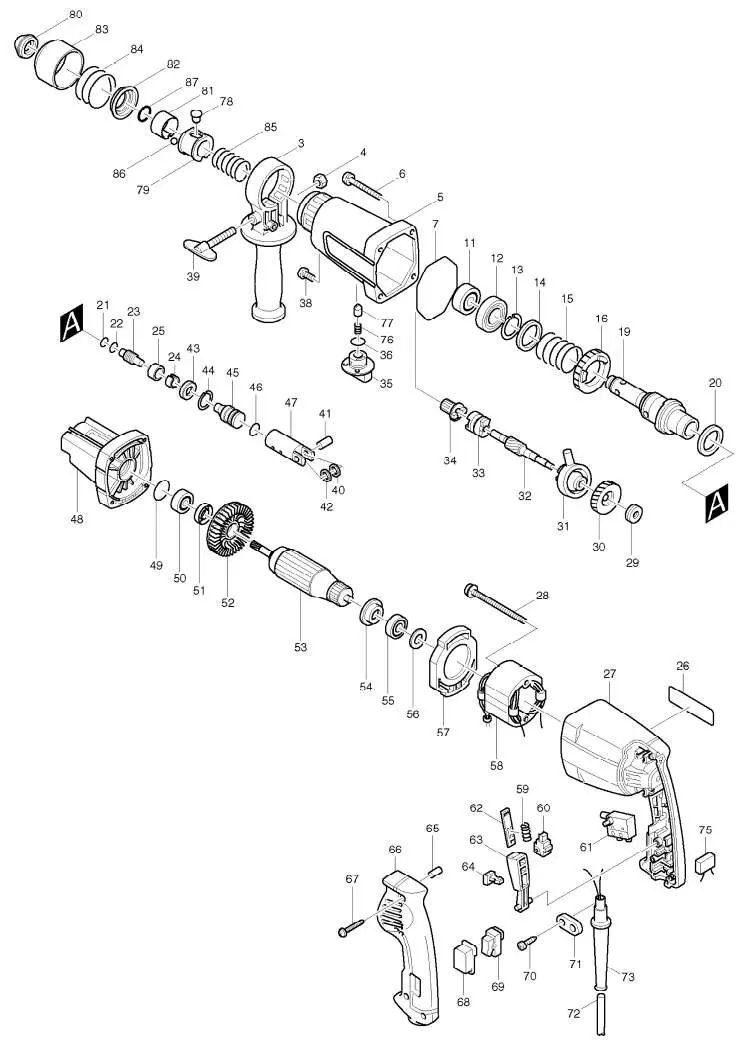

Деталировка
Деталировка
| П-п | Арт | Название |
|---|---|---|
| 3 | GRIP ASS\\\\\'Y INC. 4,39 | |
| 4 | HEX. NUT M6 | |
| 5 | GEAR HOUSING COMPLETE | |
| 6 | PAN HEAD SCREW M5X50 | |
| 7 | O RING 67 | |
| 11 | BALL BEARING 6904LLU | |
| 12 | OIL SEAL 28 | |
| 13 | RING SPRING 28 | |
| 14 | FLAT WASHER 31 | |
| 15 | COMPRESSION SPRING 31 | |
| 16 | SPUR GEAR 46 | |
| 19 | TOOL HOLDER ASS\\\\\'Y INC. 13-16,21-25,43,44 | |
| 20 | FLAT WASHER 29 | |
| 21 | O RING 10 | |
| 22 | O RING 10 | |
| 23 | IMPUCT BOLT | |
| 24 | IDLER | |
| 25 | RUBBER RING 17 | |
| 26 | NAME PLATE HR2400 | |
| 27 | MOTOR HOUSING | |
| 28 | PAN HEAD SCREW M4X55 | |
| 29 | THRUST NEEDLE BEARING 819 | |
| 30 | HELICAL GEAR 31 | |
| 31 | SWASH BEARING 9 | |
| 32 | CAM SHAFT | |
| 33 | CLUTCH | |
| 34 | SPUR GEAR 10 | |
| 35 | CHANGE LEVER | |
| 36 | O RING 17 | |
| 38 | + PAN HEAD SCREW M4 | |
| 39 | SCREW 6X40 | |
| 40 | FLAT WASHER 12 | |
| 41 | PISTON JOINT | |
| 42 | FLAT WASHER 12 | |
| 43 | FLAT WASHER 13.5 | |
| 44 | RING SPRING 23 | |
| 45 | STRIKER | |
| 46 | O RING 16 | |
| 47 | PISTON CYLINDER | |
| 48 | GEAR HOUSING COVER INC. 49 | |
| 49 | O RING 24 | |
| 50 | BALL BEARING 609LLB | |
| 51 | OIL SEAL 12 | |
| 52 | FAN 60 | |
| 53 | ARMATURE ASS\\\\\'Y 220V INC. 52,54,55 | |
| 54 | INSULATION WASHER | |
| 55 |  |
BALL BEARING 608LLB |
| 56 |  |
FLAT WASHER 14 |
| 57 |  |
BAFFLE PLATE |
| 58 |  |
FIELD 220V |
| 59 |  |
COMPRESSION SPRING 3 |
| 60 |  |
A.C. CARBON BRUSH CB-417 |
| 61 |  |
SWITCH SGE106CV-1P |
| 62 |  |
LOCK PLATE |
| 63 |  |
SWITCH LEVER |
| 64 |  |
LOCK BUTTON |
| 65 |  |
RUBBER PIN 4 |
| 66 |  |
HANDLE COVER INC. 65 |
| 67 |  |
TAPPING SCREW 4X18 |
| 68 |  |
DUST COVER |
| 69 |  |
SWITCH VLX11 |
| 70 |  |
TAPPING SCREW 4X18 |
| 71 |  |
STRAIN RELIEF |
| 72 |  |
POWER SUPPLY CORD 1.0-2-2.5 |
| 73 |  |
CORD GUARD 9.3-85 |
| 75 |  |
NOISE SUPPRESSOR |
| 76 |  |
COMPRESSION SPRING 6 |
| 77 |  |
PUSH CONE |
| 78 |  |
PIN 8 |
| 79 |  |
CHUCK RING |
| 80 |  |
CAP 31 |
| 81 |  |
LEAF SPRING 26 |
| 82 |  |
SPRING GUIDE |
| 83 |  |
CHUCK COVER |
| 84 |  |
COMPRESSION SPRING 38 |
| 85 |  |
COMPRESSION SPRING 20 |
| 86 |  |
STEEL BALL 7.0 |
| 87 |  |
RING SPRING 17 |
| A01 |  |
DEPTH GAUGE |
| A02 |  |
PLASTIC CARRYING CASE |
| E07 |  |
CHISEL ADAPTER |
