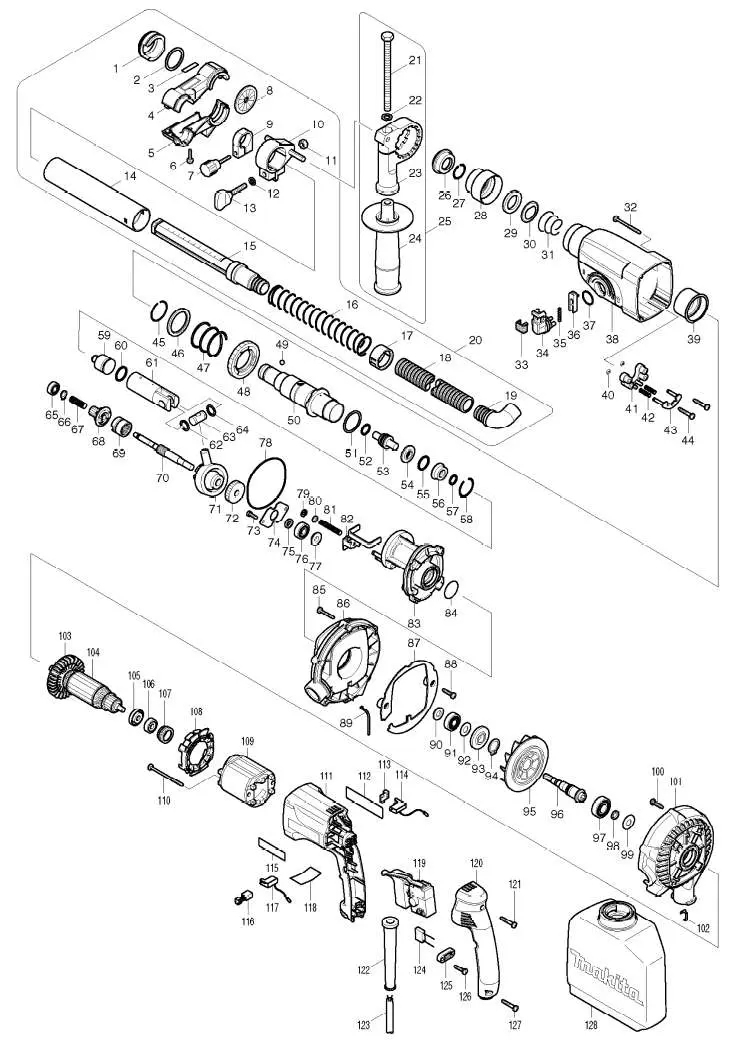

Деталировка
Деталировка
| П-п | Арт | Название |
|---|---|---|
| 1 | FITTING RUBBER | |
| 2 | FLAT WASHER 28 | |
| 3 | MAKITA LABEL | |
| 4 | COLLECTOR 25R | |
| 5 | COLLECTOR 25L | |
| 6 | TAPPING SCREW 4X16 | |
| 7 | THUMB SCREW M4X24 | |
| 8 | SEALING CAP 40 | |
| 9 | STOPPER RING | |
| 10 | PIPE HOLDER | |
| 11 | HEX. NUT M6 | |
| 12 | FLAT WASHER 6 | |
| 13 | THUMB SCREW M6X30 | |
| 14 | SUPPORT PIPE | |
| 15 | SLIDE PIPE | |
| 16 | COMPRESSION SPRING 25 | |
| 17 | SPRING STOPPER | |
| 18 | HOSE 19 | |
| 19 | CUFFS 19-22 | |
| 20 | DUST COLLECTOR ASS\\\\\'Y INC. 1-19 | |
| 21 | HEX. BOLT M8X120 | |
| 22 | HEX. WASHER | |
| 23 | GRIP BASE | |
| 24 | GRIP 36 COMPLETE | |
| 25 | GRIP 36 ASS\\\\\'Y INC. 21-24 | |
| 26 | CAP 35 | |
| 27 | RING SPRING 19 | |
| 28 | CHUCK COVER | |
| 29 | RING 21 | |
| 30 | GUIDE WASHER | |
| 31 | CONICAL COMP. SPRING 21-29 | |
| 32 | TAPPING SCREW 4X45 | |
| 33 | CAP | |
| 34 | CHANGE LEVER COMPLETE | |
| 35 | COMPRESSION SPRING 3 | |
| 36 | LOCK BUTTON | |
| 37 | O RING 17 | |
| 38 | GEAR HOUSING SET INC. 39 | |
| 39 | NEEDLE BEARING COMPLETE | |
| 40 | STOP RING E-3 | |
| 41 | GUIDE BASE | |
| 42 | COMPRESSION SPRING 4 | |
| 43 | LOCK PLATE COMPLETE | |
| 44 | TAPPING SCREW 4X25 | |
| 45 | RING SPRING 28 | |
| 46 | WASHER 30 | |
| 47 | COMPRESSION SPRING 31 | |
| 48 | SPUR GEAR 51 | |
| 49 | STEEL BALL 7.0 | |
| 50 | TOOL HOLDER COMPLETE фото аналога | |
| 51 | FLAT WASHER 28 | |
| 52 | O RING 12 | |
| 53 | IMPACT BOLT | |
| 54 | RING 9 | |
| 55 | O RING 15 | |
| 56 | O RING CASE | |
| 57 | O RING 9 | |
| 58 | RING SPRING 28 | |
| 59 | STRIKER | |
| 60 | O RING 16 | |
| 61 | PISTON CYLINDER | |
| 62 | FLAT WASHER 12 | |
| 63 | PISTON JOINT | |
| 64 | FLAT WASHER 12 | |
| 65 | BALL BEARING 606ZZ | |
| 66 | RETAINING RING S-7 | |
| 67 | COMPRESSION SPRING 7 | |
| 68 | SPUR GEAR 10 | |
| 69 | CLUTCH CAM | |
| 70 | CAM SHAFT | |
| 71 | SWASH BEARING 10 | |
| 72 | HELICAL GEAR 26 | |
| 73 | HEX. SOCKET HEAD BOLT M4X12 | |
| 74 | BEARING RETAINER | |
| 75 | FLAT WASHER 8 | |
| 76 | BALL BEARING 608ZZ | |
| 77 | RING 8 | |
| 78 | O RING 68 | |
| 79 | STOP RING E-4 | |
| 80 | FLAT WASHER 5 | |
| 81 | COMPRESSION SPRING 6 | |
| 82 | CHANGE PLATE | |
| 83 | INNER HOUSING COMPLETE | |
| 84 | O RING 24 | |
| 85 | TAPPING SCREW 4X25 | |
| 86 | FAN HOUSING A | |
| 87 | DUST COVER PLATE | |
| 88 | TAPPING SCREW 4X18 | |
| 89 | EARTH PLATE A | |
| 90 | FLAT WASHER 9 | |
| 91 | BALL BEARING 609LLU | |
| 92 | FLAT WASHER 9 | |
| 93 | DUST GUARD | |
| 94 | RETAINING RING S-15 | |
| 95 | FAN 81 | |
| 96 | HELICAL GEAR 5 | |
| 97 | BALL BEARING 6001DDW | |
| 98 | URETHANE RING 8 | |
| 99 | FLAT WASHER 9 | |
| 100 | TAPPING SCREW 4X18 | |
| 101 | FAN HOUSING B | |
| 102 | EARTH PLATE B | |
| 103 | FAN 60 | |
| 104 | ARMATURE ASS\\\\\'Y 240V INC. 103,105,106 | |
| 105 | INSULATION WASHER | |
| 106 | BALL BEARING 607LLB | |
| 107 | RUBBER RING 19 | |
| 108 | BAFFLE PLATE | |
| 109 | FIELD 220-240V | |
| 110 | TAPPING SCREW 4X60 | |
| 111 | MOTOR HOUSING | |
| 112 | HR2432 NAME PLATE | |
| 113 | SPACER | |
| 114 | BRUSH HOLDER | |
| 115 | MAKITA LABEL | |
| 116 | CARBON BRUSH CB-419 | |
| 117 | BRUSH HOLDER | |
| 118 | HR2432 SERIAL NO. LABEL | |
| 119 | SWITCH TG813TLB-1 | |
| 120 | HANDLE COVER COMPLETE | |
| 121 | TAPPING SCREW 4X25 | |
| 122 | CORD GUARD 10 | |
| 123 | POWER SUPPLY CORD 1.0-2-4.0 | |
| 124 | NOISE SUPPRESSOR | |
| 125 | STRAIN RELIEF | |
| 126 | TAPPING SCREW 4X18 | |
| 127 | TAPPING SCREW 4X25 | |
| 128 | DUST BAG ASS\\\\\'Y | |
| 129 | RING 8 | |
| A01 | PLASTIC CARRYING CASE | |
| A02 | CAP | |
| E01 | LINE FILTER |
