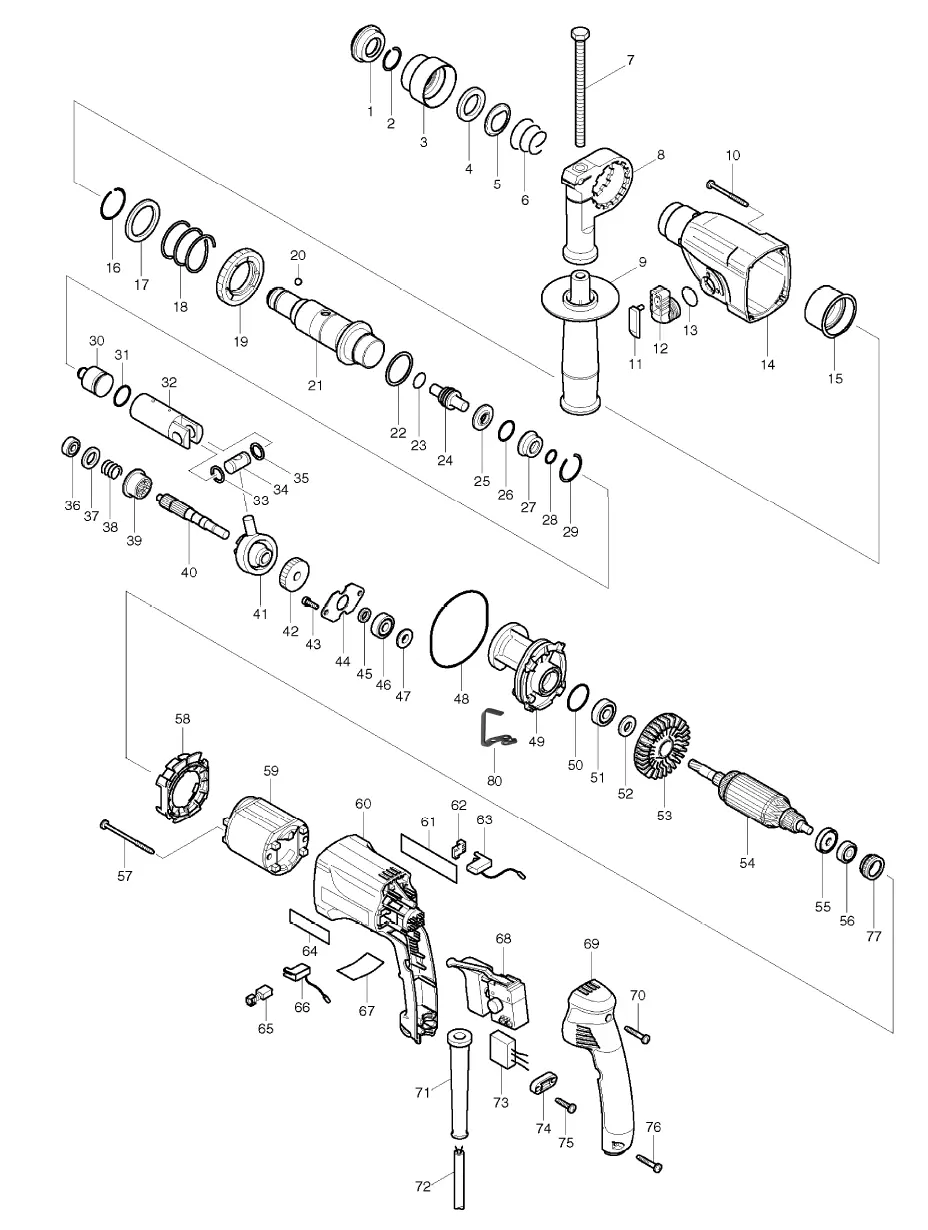

Деталировка
Деталировка
| П-п | Арт | Название |
|---|---|---|
| 1 |  |
CAP 35 |
| 2 |  |
RING SPRING 19 |
| 3 |  |
CHUCK COVER |
| 4 |  |
RING 21 |
| 5 |  |
GUIDE WASHER |
| 6 |  |
CONICAL COMP. SPRING 21-29 |
| 7 |  |
HEX. BOLT M8X120 |
| 8 |  |
GRIP BASE |
| 9 |  |
GRIP 36 ASS\\\'Y INC. 7,8,78 |
| 10 |  |
TAPPING SCREW 4X45 |
| 11 |  |
CAP |
| 12 |  |
CHANGE LEVER ASS\\\'Y INC. 11,39 |
| 13 |  |
O RING 17 |
| 14 |  |
GEAR HOUSING SET INC. 15 |
| 15 |  |
NEEDLE BEARING COMPLETE |
| 16 |  |
RING SPRING 28 |
| 17 |  |
WASHER 30 |
| 18 |  |
COMPRESSION SPRING 31 |
| 19 |  |
SPUR GEAR 51 |
| 20 |  |
STEEL BALL 7.0 |
| 21 |  |
TOOL HOLDER COMPLETE |
| 22 |  |
FLAT WASHER 28 |
| 23 |  |
O RING 12 |
| 24 |  |
IMPACT BOLT |
| 25 |  |
RING 9 |
| 26 |  |
O RING 15 |
| 27 |  |
O RING CASE |
| 28 |  |
O RING 9 |
| 29 |  |
RING SPRING 28 |
| 30 |  |
STRIKER |
| 31 |  |
O RING 16 |
| 32 |  |
PISTON CYLINDER |
| 33 |  |
FLAT WASHER 12 |
| 34 |  |
PISTON JOINT |
| 35 |  |
FLAT WASHER 12 |
| 36 |  |
BALL BEARING 606ZZ |
| 37 |  |
FLAT WASHER 12 |
| 38 |  |
COMPRESSION SPRING 12 |
| 39 |  |
CLUTCH CAM |
| 40 |  |
SPUR GEAR 10 |
| 41 |  |
SWASH BEARING 10 |
| 42 |  |
HELICAL GEAR 26 |
| 43 |  |
HEX. SOCKET HEAD BOLT M4X12 |
| 44 |  |
BEARING RETAINER |
| 45 |  |
FLAT WASHER 8 |
| 46 |  |
BALL BEARING 608ZZ |
| 47 | RING 8 | |
| 48 | O RING 68 | |
| 49 | INNER HOUSING COMPLETE | |
| 50 | O RING 24 | |
| 51 |  |
BALL BEARING 609LLU |
| 52 |  |
FLAT WASHER 9 |
| 53 |  |
FAN 60 |
| 54 |  |
ARMATURE ASS\\\'Y 220-240V INC. 51,52,53,55,56 |
| 55 |  |
INSULATION WASHER |
| 56 |  |
BALL BEARING 607LLB |
| 57 |  |
TAPPING SCREW 4X60 |
| 58 |  |
BAFFLE PLATE |
| 59 |  |
FIELD 220-240V |
| 60 |  |
MOTOR HOUSING |
| 61 |  |
NAME PLATE HR2440 |
| 62 |  |
SPACER |
| 63 |  |
BRUSH HOLDER |
| 65 |  |
CARBON BRUSH CB-419 |
| 66 |  |
BRUSH HOLDER |
| 67 |  |
HR2440 SERIAL N0.LABEL |
| 68 |  |
SWITCH TG813TLB-1 |
| 69 |  |
HANDLE COVER COMPLETE |
| 70 |  |
TAPPING SCREW 4X25 |
| 71 |  |
CORD GUARD 10 |
| 72 |  |
POWER SUPPLY CORD 1.0-2-4.0 |
| 73 |  |
NOISE SUPPRESSOR |
| 74 |  |
STRAIN RELIEF |
| 75 |  |
TAPPING SCREW 4X18 |
| 76 |  |
TAPPING SCREW 4X25 |
| 77 |  |
RUBBER RING 19 |
| 78 |  |
HEX. WASHER |
| 79 |  |
FLAT WASHER 9 |
| 80 |  |
STOPPER PLATE |
| 81 |  |
COMPRESSION SPRING 5 |
| 82 |  |
STOP RING E-4 |
| A01 |  |
DEPTH GAUGE |
| A02 |  |
PLASTIC CARRYING CASE |
