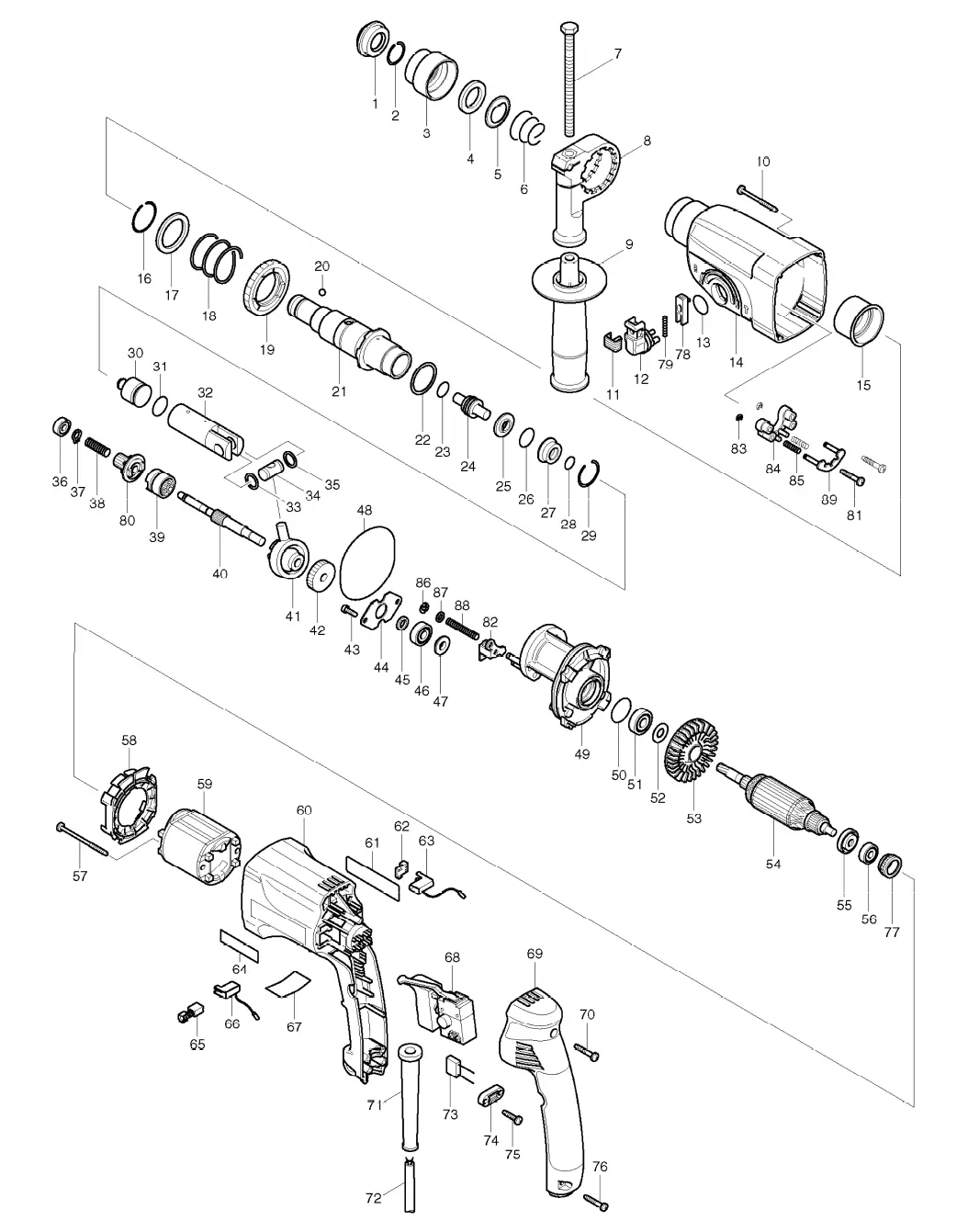

HR 2450 Деталировка
HR 2450 Деталировка
| П-п | Арт | Название |
|---|---|---|
| 1 |  |
CAP 35 |
| 2 |  |
RING SPRING 19 |
| 3 |  |
CHUCK COVER |
| 4 |  |
RING 21 |
| 5 |  |
GUIDE WASHER |
| 6 |  |
CONICAL COMP. SPRING 21-29 |
| 7 |  |
HEX. BOLT M8X120 |
| 8 |  |
GRIP BASE |
| 9 |  |
GRIP 36 ASS\\\\\'Y (new) |
| 9 |  |
GRIP 36 ASS\\\\\'Y (old) |
| 10 |  |
TAPPING SCREW 4X45 (new) |
| 10 |  |
TAPPING SCREW 4X45 (old) |
| 11 |  |
CAP |
| 12 |  |
CHANGE LEVER COMPLETE |
| 13 |  |
O RING 17 |
| 14 |  |
GEAR HOUSING SET INC. 15 |
| 15 |  |
NEEDLE BEARING COMPLETE |
| 16 |  |
RING SPRING 28 |
| 17 | WASHER 30 | |
| 18 | COMPRESSION SPRING 31 | |
| 19 | SPUR GEAR 51 | |
| 20 | STEEL BALL 7.0 | |
| 21 | TOOL HOLDER COMPLETE | |
| 22 | FLAT WASHER 28 | |
| 23 | O RING 12 | |
| 24 | IMPACT BOLT | |
| 25 | RING 9 | |
| 26 | O RING 15 | |
| 27 | O RING CASE | |
| 28 | O RING 9 | |
| 29 | RING SPRING 28 | |
| 30 | STRIKER | |
| 31 | O RING 16 | |
| 32 | PISTON CYLINDER | |
| 33 | FLAT WASHER 12 | |
| 34 | PISTON JOINT | |
| 35 | FLAT WASHER 12 | |
| 36 | BALL BEARING 606ZZ | |
| 37 | RETAINING RING S-7 | |
| 38 | COMPRESSION SPRING 7 | |
| 39 | CLUTCH CAM (new) | |
| 39 | CLUTCH CAM (old) | |
| 40 | CAM SHAFT | |
| 41 | SWASH BEARING 10 | |
| 42 | HELICAL GEAR 26 | |
| 43 | HEX. SOCKET HEAD BOLT M4X12 | |
| 44 | BEARING RETAINER | |
| 45 | FLAT WASHER 8 | |
| 46 | BALL BEARING 608ZZ | |
| 47 | RING 8 | |
| 48 | O RING 68 | |
| 49 | INNER HOUSING COMPLETE | |
| 50 |  |
O RING 24 |
| 51 |  |
BALL BEARING 609LLU |
| 52 |  |
FLAT WASHER 9 |
| 53 |  |
FAN 60 |
| 54 |  |
ARMATURE ASS\\\\\'Y 220-240V INC. 51,52,53,55,56 |
| 55 |  |
INSULATION WASHER |
| 56 |  |
BALL BEARING 607LLB |
| 57 |  |
TAPPING SCREW 4X60 (new) |
| 57 |  |
TAPPING SCREW 4X60 (old) |
| 58 |  |
BAFFLE PLATE |
| 59 |  |
FIELD 220-240V |
| 60 |  |
MOTOR HOUSING (new) |
| 60 |  |
MOTOR HOUSING SET (old) |
| 61 |  |
NAME PLATE HR2450 |
| 62 |  |
SPACER |
| 63 |  |
BRUSH HOLDER |
| 64 |  |
MAKITA LABEL |
| 65 |  |
CARBON BRUSH CB-419 |
| 66 |  |
BRUSH HOLDER |
| 67 |  |
HR2450 SERIAL NUMBER LABEL |
| 68 |  |
SWITCH TG813TLB-1 фото1 аналога, фото2 аналога |
| 69 |  |
HANDLE COVER COMPLETE |
| 70 |  |
TAPPING SCREW 4X25 (new) |
| 70 |  |
TAPPING SCREW 4X25 (old) |
| 71 |  |
CORD GUARD 10 |
| 72 |  |
POWER SUPPLY CORD 1.0-2-4.0 |
| 73 |  |
NOISE SUPPRESSOR |
| 74 |  |
STRAIN RELIEF |
| 75 |  |
TAPPING SCREW 4X18 (new) |
| 75 |  |
TAPPING SCREW 4X18 (old) |
| 76 |  |
TAPPING SCREW 4X25 (new) |
| 76 |  |
TAPPING SCREW 4X25 (old) |
| 77 |  |
RUBBER RING 19 |
| 78 |  |
LOCK BUTTON |
| 79 |  |
COMPRESSION SPRING 3 |
| 80 |  |
SPUR GEAR 10 |
| 81 |  |
TAPPING SCREW 4X25 (new) |
| 81 |  |
TAPPING SCREW 4X25 (old) |
| 82 |  |
CHANGE PLATE |
| 83 |  |
STOP RING E-3 |
| 84 |  |
GUIDE BASE |
| 85 |  |
COMPRESSION SPRING 4 |
| 86 |  |
STOP RING E-4 |
| 87 |  |
FLAT WASHER 5 |
| 88 |  |
COMPRESSION SPRING 6 |
| 89 |  |
LOCK PLATE COMPLETE |
| 90 |  |
HEX. WASHER |
| 91 |  |
FLAT WASHER 9 |
| A01 |  |
DEPTH GAUGE |
| A02 | PLASTIC CARRYING CASE | |
| A03 | HR2450 PLASTIC CASE LABEL |
