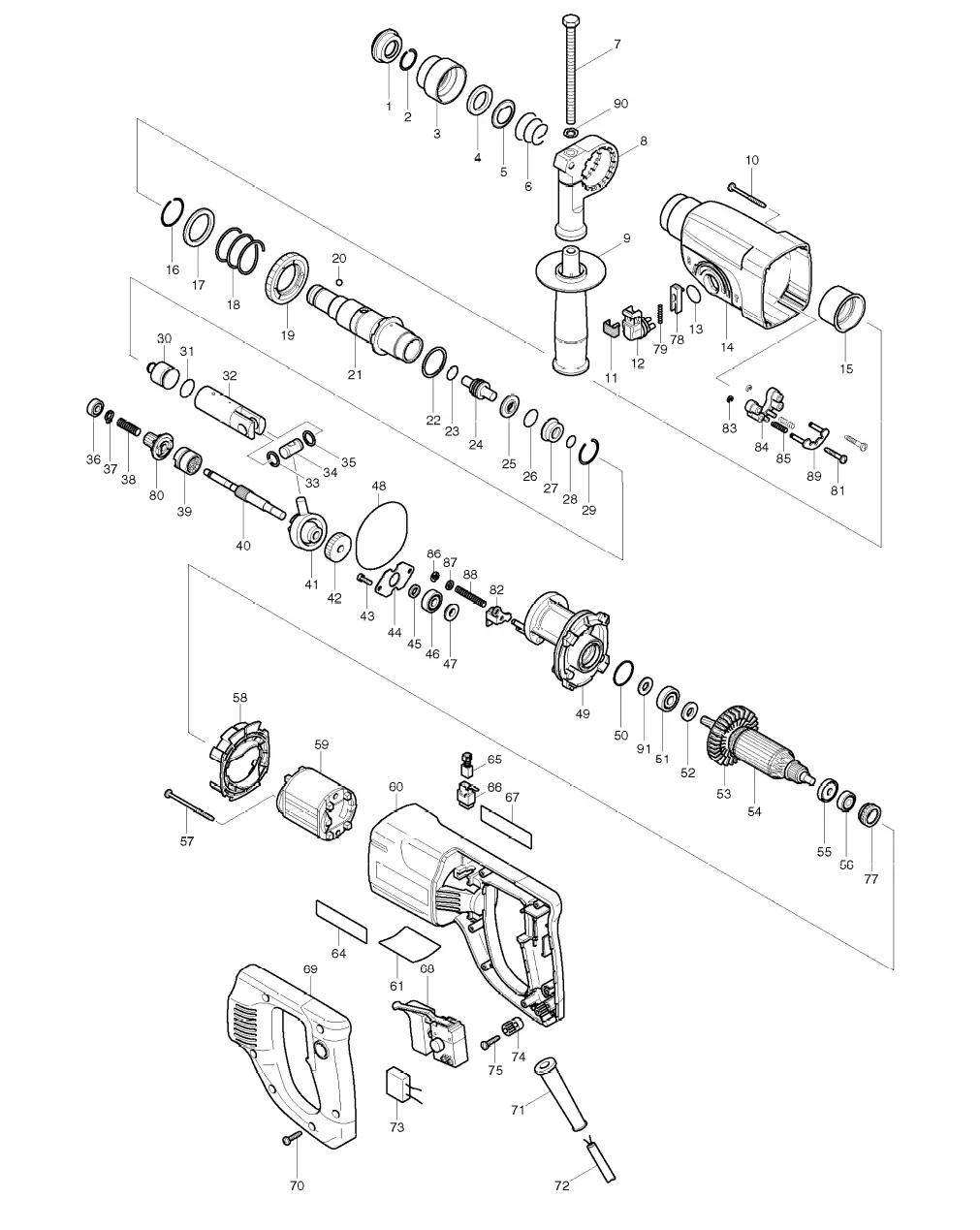

Деталировка
Деталировка
| П-п | Арт | Название |
|---|---|---|
| 1 | CAP 35 | |
| 2 | RING SPRING 19 | |
| 3 | CHUCK COVER | |
| 4 | RING 21 | |
| 5 | GUIDE WASHER | |
| 6 | CONICAL COMP. SPRING 21-29 | |
| 7 | HEX. BOLT M8X120 | |
| 8 | GRIP BASE | |
| 9 | GRIP 36 ASS\\\'Y INC. 7,8,90 | |
| 10 | TAPPING SCREW 4X45 | |
| 11 | CAP | |
| 12 | CHANGE LEVER COMPLETE | |
| 13 | O RING 17 | |
| 14 | GEAR HOUSING SET INC. 15 | |
| 15 | NEEDLE BEARING COMPLETE | |
| 16 | RING SPRING 28 | |
| 17 | WASHER 30 | |
| 18 | COMPRESSION SPRING 31 | |
| 19 | SPUR GEAR 51 | |
| 20 | STEEL BALL 7.0 | |
| 21 | TOOL HOLDER COMPLETE | |
| 22 | FLAT WASHER 28 | |
| 23 | O RING 12 | |
| 24 | IMPACT BOLT | |
| 25 | RING 9 | |
| 26 | O RING 15 | |
| 27 | O RING CASE | |
| 28 | O RING 9 | |
| 29 | RING SPRING 28 | |
| 30 | STRIKER | |
| 31 | O RING 16 | |
| 32 | PISTON CYLINDER | |
| 33 | FLAT WASHER 12 | |
| 34 | PISTON JOINT | |
| 35 | FLAT WASHER 12 | |
| 36 | BALL BEARING 606ZZ | |
| 37 | RETAINING RING S-7 | |
| 38 | COMPRESSION SPRING 7 | |
| 39 | CLUTCH CAM | |
| 40 | CAM SHAFT | |
| 41 | SWASH BEARING 10 | |
| 42 | HELICAL GEAR 26 | |
| 43 | HEX. SOCKET HEAD BOLT M4X12 | |
| 44 | BEARING RETAINER | |
| 45 | FLAT WASHER 8 | |
| 46 | BALL BEARING 608ZZ | |
| 47 | RING 8 | |
| 48 | O RING 68 | |
| 49 | INNER HOUSING COMPLETE | |
| 50 | O RING 24 | |
| 51 | BALL BEARING 609LLU | |
| 52 | FLAT WASHER 9 | |
| 53 | FAN 60 | |
| 54 | ARMATURE ASS\\\'Y 220-240V INC. 51-53,55,56 | |
| 55 | INSULATION WASHER | |
| 56 | BALL BEARING 607LLB | |
| 57 | TAPPING SCREW 4X60 | |
| 58 | BAFFLE PLATE | |
| 59 | FIELD 220-240V | |
| 60 | MOTER HOUSING INC. 64,67 | |
| 61 | NAME PLATE HR2455 | |
| 64 | MAKITA MARK | |
| 65 | CARBON BRUSH CB-419 | |
| 66 | BRUSH HOLDER | |
| 67 | MAKITA MARK | |
| 68 | SWITCH TG813TLB-1 | |
| 69 | HANDLE COVER | |
| 70 | TAPPING SCREW 4X18 | |
| 71 | CORD GUARD 10 | |
| 72 |  |
POWER SUPPLY CORD 1.0-2-4.0 |
| 73 |  |
NOISE SUPPRESSOR |
| 74 |  |
STRAIN RELIEF |
| 75 |  |
TAPPING SCREW 4X18 |
| 77 |  |
RUBBER RING 19 |
| 78 |  |
LOCK BUTTON |
| 79 |  |
COMPRESSION SPRING 3 |
| 80 |  |
SPUR GEAR 10 |
| 81 |  |
TAPPING SCREW 4X25 |
| 82 |  |
CHANGE PLATE |
| 83 |  |
STOP RING E-3 |
| 84 |  |
GUIDE BASE |
| 85 |  |
COMPRESSION SPRING 4 |
| 86 |  |
STOP RING E-4 |
| 87 |  |
FLAT WASHER 5 |
| 88 |  |
COMPRESSION SPRING 6 |
| 89 |  |
LOCK PLATE COMPLETE |
| 90 |  |
HEX. WASHER |
| 91 |  |
FLAT WASHER 9 |
| A01 |  |
DEPTH GAUGE |
| A02 |  |
PLASTIC CARRYING CASE |
