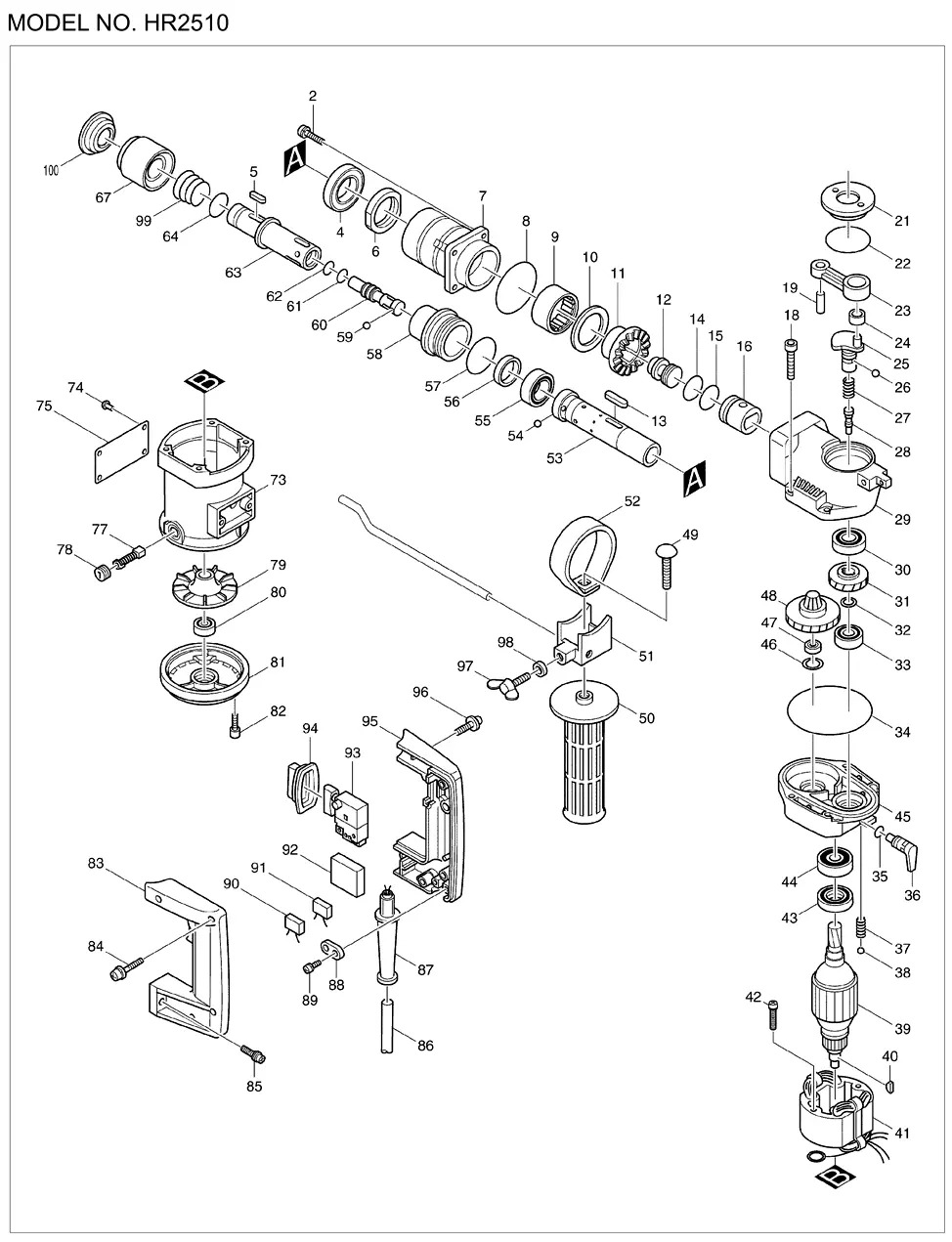

HR2510 Деталировка
HR2510 Деталировка
| П-п | Арт | Название |
|---|---|---|
| 2 | HEX. SOCKET HEAD BOLT M6X25 | |
| 4 | BALL BEARING 3009 | |
| 5 | ROLLER 6.5 | |
| 6 | NUT M30.3-36 | |
| 7 | BARREL | |
| 8 | O RING 48 | |
| 9 | NEEDLE BEARING 3516 | |
| 10 | FLAT WASHER 35 | |
| 11 | SPIRAL BEVEL GEAR 33 | |
| 12 | STRIKER | |
| 13 | KEY 4 | |
| 14 | O RING 19 | |
| 15 | O RING 19 | |
| 16 | PISTON | |
| 18 | HEX. SOCKET HEAD BOLT M6X45 | |
| 19 | PIN 6 | |
| 21 | CRANK CAP (new) | |
| 21 | CRANK CAP COMPLETE (old) | |
| 22 | O RING 44 | |
| 23 | ROD | |
| 24 | NEEDLE BEARING 810 | |
| 25 | CRANK SHAFT | |
| 26 | STEEL BALL 5.6 | |
| 27 | COMPRESSION SPRING 6 | |
| 28 | CHANGE PIN 8 | |
| 29 | CRANK HOUSING | |
| 30 | BALL BEARING 6002 | |
| 31 | HELICAL GEAR 36 | |
| 32 | FLAT WASHER 15 | |
| 33 | BALL BEARING 6902 | |
| 34 | O RING 90 | |
| 35 | O RING 7 | |
| 36 | CHANGE LEVER | |
| 37 | COMPRESSION SPRING 2 | |
| 38 | STEEL BALL 4 | |
| 39 | ARMATURE 220V | |
| 40 | WOODRUFF KEY 3 | |
| 41 | FIELD ASS\\\'Y 220V | |
| 42 | + HEX. BOLT M5X45 | |
| 43 | OIL SEAL 13 | |
| 44 | BALL BEARING 6200 | |
| 45 | GEAR HOUSING | |
| 46 | THIN WASHER 15 | |
| 47 | BALL BEARING 608 | |
| 48 | TORQUE LIMITER COMPLETE | |
| 49 | CAP SQUARE NECK BOLT M8X35 | |
| 50 | GRIP 32 | |
| 51 | GRIP BASE | |
| 52 | BELT | |
| 53 | CYLINDER LINER 24 | |
| 54 | STEEL BALL 6.4 | |
| 55 | OIL SEAL 21 | |
| 56 | FELT RING 20 | |
| 57 | O RING 44 | |
| 58 | SEAL HOLDER | |
| 59 | STEEL BALL 6.4 | |
| 60 | IMPACT BOLT | |
| 61 | O RING 10 | |
| 62 | O RING 10 | |
| 63 | DRILL HOLDER | |
| 64 | O RING 10 | |
| 67 | CHANGE RING | |
| 73 | MOTOR HOUSING | |
| 74 | RIVET 0-5 | |
| 75 | NAME PLATE HR2510 | |
| 77 | A.C. CARBON BRUSH CB-105 | |
| 78 | BRUSH HOLDER CAP 6-10 | |
| 79 | FAN 65 | |
| 80 | BALL BEARING 608LB | |
| 81 | BEARING BOX COMPLETE | |
| 82 | PAN HEAD SCREW M5X25 | |
| 83 | HANDLE SET INC. 95 | |
| 84 | PAN HEAD SCREW M5X25 | |
| 85 | PAN HEAD SCREW M6X25 | |
| 86 | POWER SUPPLY CORD 1.0-2-5.0 | |
| 87 | CORD GUARD 9.3-90 | |
| 88 | STRAIN RELIEF | |
| 89 | PAN HEAD SCREW M4X18 | |
| 90 | NOISE SUPPRESSOR | |
| 92 | SPONGE SHEET | |
| 93 | SWITCH SGE106CV-1A 220/240V | |
| 94 | DUST COVER | |
| 95 | HANDLE SET INC. 83 | |
| 96 | PAN HEAD SCREW M6X18 | |
| 97 | WING BOLT M5X15 | |
| 98 | RUBBER WASHER 4.5 | |
| 99 | CONICAL COMPR. SPRING 21-25 | |
| 100 | CAP 34 | |
| 400 | DEPTH GAUGE | |
| 404 | PLASTIC CARRYING CASE COMPLETE (new) | |
| 404 | STEEL CARRYING CASE COMPLETE INC.408 (old) | |
| 407 | DUST COLLECTER ASS\\\'Y | |
| 408 | INNER CASE | |
| 900 | LINE COIL |
