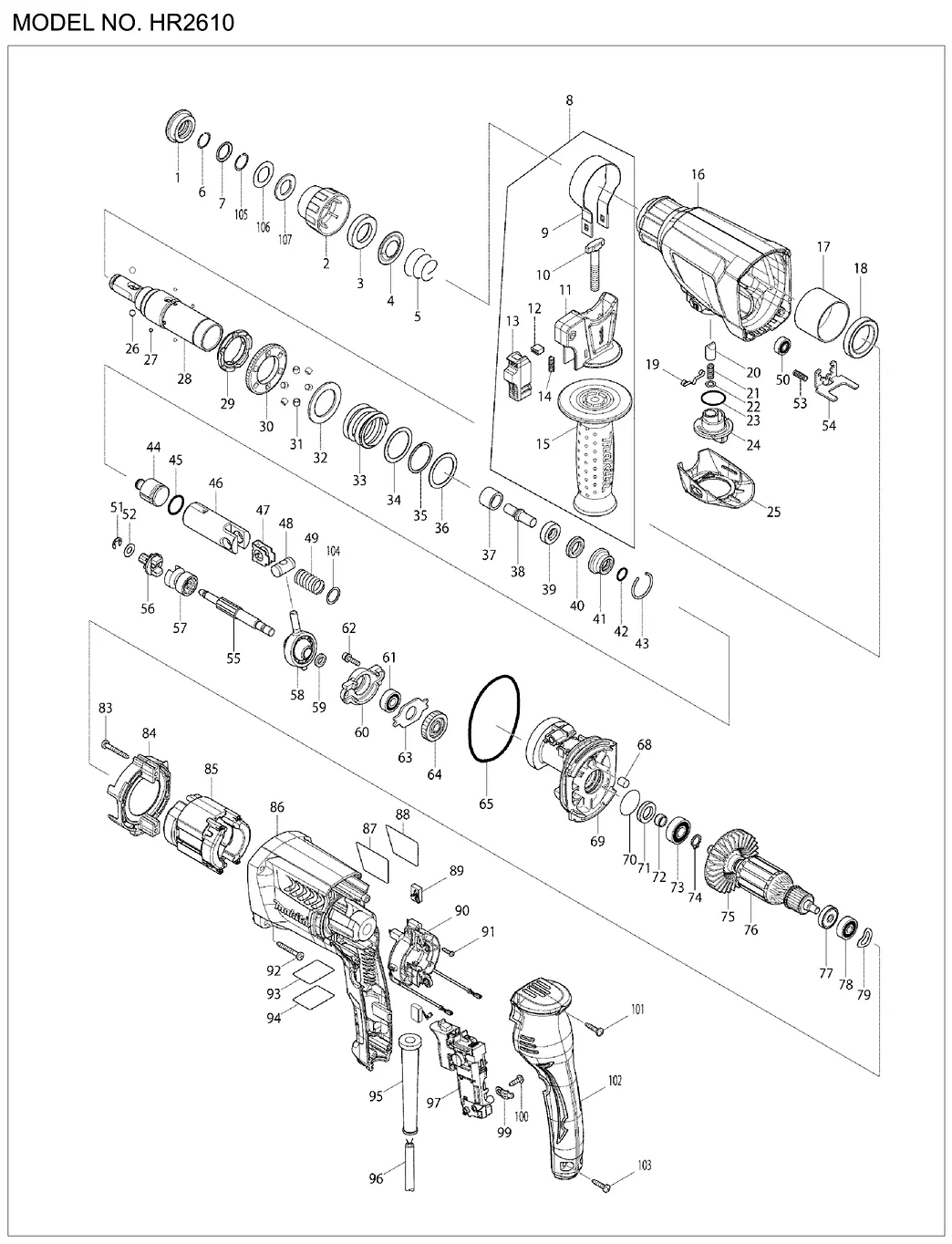

HR 2610 Деталировка
HR 2610 Деталировка
| П-п | Арт | Название |
|---|---|---|
| 1 | CAP 35 | |
| 2 | CHUCK COVER | |
| 3 | RING 21 | |
| 4 | GUIDE WASHER | |
| 5 | CONICAL COMP. SPRING 21-29 | |
| 6 | RING SPRING 14 | |
| 7 | WASHER 16 | |
| 8 | GRIP ASSEMBLY INC. 9-15 | |
| 9 | GRIP SPRING 50 | |
| 10 | SQUARE BOLT M8X50 | |
| 11 | GRIP BASE | |
| 12 | RACK | |
| 13 | LOCK BUTTON COMPLETE (new) | |
| 13 | LOCK BUTTON (old) | |
| 14 | COMPRESSION SPRING 4 | |
| 15 | GRIP 36 COMPLETE | |
| 16 | GEAR HOUSING COMPLETE | |
| 17 | CUP SLEEVE | |
| 18 | BALL BEARING 6806LLU | |
| 19 | LEAF SPRING | |
| 20 | PUSH CORN | |
| 21 | COMPRESSION SPRING 5 | |
| 22 | THIN WASHER 6 | |
| 23 | O RING 21 | |
| 24 | CHANGE LEVER A | |
| 25 | CHANGE LEVER COVER A | |
| 26 | STEEL BALL 7.0 | |
| 27 | STEEL BALL 3 | |
| 28 | TOOL HOLDER COMPLETE | |
| 29 | DRIVING FLANGE | |
| 30 | SPUR GEAR 51 | |
| 31 | PIN 6 | |
| 32 | FLAT WASHER 30 | |
| 33 | COMPRESSION SPRING 31 | |
| 34 | FLAT WASHER 30 | |
| 35 | SPIRO LOCK WASHER 30 | |
| 36 | FLAT WASHER 30 | |
| 37 | SLEEVE 9A | |
| 38 | IMPACT BOLT A | |
| 39 | RING 10A | |
| 40 | CUSHION RING 12 | |
| 41 | O-RING CASE A | |
| 42 | O RING 9 | |
| 43 | RING SPRING 28 | |
| 44 | STRIKER | |
| 45 | O RING 17.5 | |
| 46 | PISTON CYLINDER | |
| 47 | GUIDE PLATE | |
| 48 | PISTON JOINT | |
| 49 | COMPRESSION SPRING 14 | |
| 50 | BALL BEARING 606ZZ | |
| 51 | STOP RING EXT U-6 (new) | |
| 51 | STOP RING E-6 (old) | |
| 52 | FLAT WASHER 7 (new) | |
| 52 | FLAT WASHER 7 (old) | |
| 53 | COMPRESSION SPRING 4 | |
| 54 | LOCK PLATE | |
| 55 | CAM SHAFT | |
| 56 | SPUR GEAR 10 | |
| 57 | CLUTCH CAM A | |
| 58 | SWASH BEARING 10 | |
| 59 | FLAT WASHER 8 | |
| 60 | BEARING BOX | |
| 61 | BALL BEARING 608ZZ | |
| 62 | HEX. SOCKET HEAD BOLT M4X16 | |
| 63 |  |
BEARING RETAINER |
| 64 |  |
HELICAL GEAR 26 |
| 65 |  |
O-RING 68 |
| 68 |  |
FELT |
| 69 |  |
INNER HOUSING COMPLETE (new) |
| 69 |  |
INNER HOUSING COMPLETE (old1) |
| 69 |  |
INNER HOUSING COMPLETE (old2) |
| 70 |  |
O RING 26 |
| 71 |  |
OIL SEAL 12 (new) |
| 71 |  |
OIL SEAL 12 (old) |
| 72 |  |
SLEEVE 9 |
| 73 |  |
BALL BEARING 6000LLB |
| 74 |  |
RETAINING RING S-10 |
| 75 |  |
FAN 65 |
| 76 |  |
ARMATURE ASSEMBLY 240V INC. 72-75,77,78 |
| 77 |  |
INSULATION WASHER |
| 78 |  |
BALL BEARING 627DDW |
| 79 |  |
WAVE WASHER 15 |
| 83 |  |
TAPPING SCREW 4X30 |
| 84 |  |
BAFFLE PLATE |
| 85 |  |
FIELD 240V |
| 86 |  |
MOTOR HOUSING |
| 87 |  |
HR2610 NAME PLATE |
| 88 |  |
CLEAR LABEL |
| 89 |  |
CARBON BRUSH CB-325 |
| 90 |  |
BRUSH HOLDER UNIT |
| 91 |  |
TAPPING SCREW 3X12 |
| 92 |  |
TAPPING SCREW 4X30 |
| 93 |  |
HR2610 SERIAL NO.LABEL |
| 94 |  |
CLEAR LABEL |
| 95 |  |
CORD GUARD 10 |
| 96 |  |
POWER SUPPLY CORD 1.0-2-4.0 |
| 97 |  |
SWITCH |
| 99 |  |
STRAIN RELIEF |
| 100 |  |
TAPPING SCREW 4X14 |
| 101 |  |
TAPPING SCREW 4X18 |
| 102 |  |
HANDLE COVER |
| 103 |  |
TAPPING SCREW 4X18 |
| 104 |  |
FLAT WASHER 14 |
| 105 |  |
RING SPRING 15 |
| 106 |  |
FLAT WASHER 17 |
| 107 |  |
RUBBER WASHER 16 |
| A01 |  |
DEPTH GAUGE |
| A02 |  |
PLASTIC CASE COMPLETE |
| A03 |  |
HR2610 PLASTIC CASE LABEL |
| A04 |  |
DUSTCUP SET |
