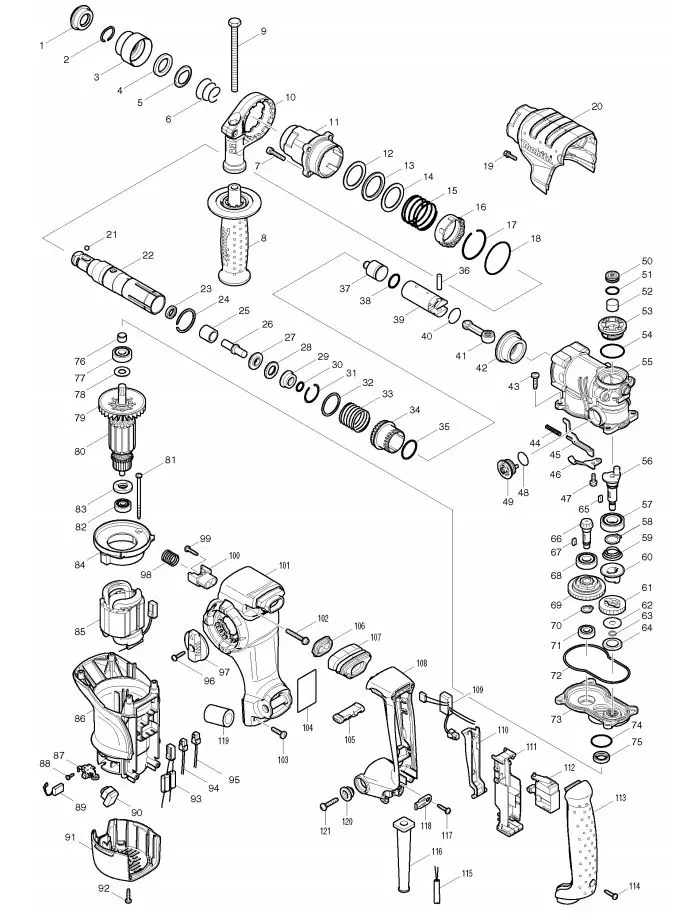

Деталировка
Деталировка
| П-п | Арт | Название |
|---|---|---|
| 1 | CAP 35 HR2020/2440/2450/2432 | |
| 2 | RING SPRING 19 HR2020/2440/245 | |
| 3 | CHUCK COVER HR2020/2440/2450 | |
| 4 | RING 21 HR2020/2440/2450/2432 | |
| 5 | GUIDE WASHER HR2020/2440/2450 | |
| 6 | CONICAL COMP SPRING 21-29 HR20 | |
| 7 | *HEX SOCKET HD BOLT M5X25 5PK | |
| 8 | GRIP 36 COMP HR2230/2460/2470 | |
| 9 | *BOLT M8X110 8413D/HP1500/8451 | |
| 10 | GRIP BASE 20 HR2811FT | |
| 11 | BARREL COMPLETE HR2811FT | |
| 12 | FLAT WASHER 31 HR2811FT | |
| 13 | URETHANE RING 31 HR2811FT | |
| 14 | FLAT WASHER 31 HR2811FT | |
| 15 |  |
COMPRESSION SPRING 37 HR2811FT |
| 16 |  |
LOCK SLEEVE HR2811FT |
| 17 |  |
RING SPRING 41 HR2811FT |
| 18 |  |
O RING 46 BSR730S/6980FD |
| 19 |  |
*HEX SOCKET BOLT M4x16 |
| 20 |  |
CRANK HOUSING COVER HR2811FT |
| 21 |  |
*STEEL BALL 7.0 10PK |
| 22 |  |
TOOL HOLDER ASSY HR2811F |
| 23 |  |
OIL SEAL HR2811FT |
| 24 |  |
RETAINING RING HR2811FT |
| 25 |  |
SLEEVE 9 HR2811FT/2230/2460/70 |
| 26 |  |
IMPACT BOLT BHR240/HR2230/2460 |
| 27 |  |
RING 10 HR2450T/BHR262/BHR262 |
| 28 |  |
CUSHION RING 13 BHR240/262 |
| 29 |  |
O RING CASE HR2020/2440/2450 |
| 30 |  |
O RING 9 HR2020/2440/2450/2432 |
| 31 |  |
RING SPRING 28 HR2020/2440/245 |
| 32 |  |
*NARROW WASHER 29 HR2400 5PK |
| 33 |  |
COMPRESSION SPRING 30 HR2811FT |
| 34 |  |
DRIVING SLEEVE HR2811FT |
| 35 |  |
O RING 26 BSS500/BSS501/HR3000 |
| 36 |  |
PIN 6 HR2210/HR2410/HR2420 |
| 37 |  |
STRIKER HR2811FT/HR2230/2460/7 |
| 38 |  |
O RING 16 HK0500/HR2450/2432 |
| 39 |  |
PISTON CYLINDER HR2811FT |
| 40 |  |
RING SPRING 21 HR2811FT |
| 41 |  |
CONNECTING ROD COMPL HR2811FT |
| 42 |  |
SPIRAL BEVEL GEAR 9 HR2811FT |
| 43 |  |
TAPPING SCREW 5X20 HR2811FT |
| 44 |  |
COMPRESSION SPRING 4 HR2811FT |
| 45 |  |
LINK PLATE HR2811FT |
| 46 |  |
GUIDE PLATE HR2811FT |
| 47 |  |
*PAN HEAD SCREW M4X12 10PK |
| 48 |  |
O RING 16 BFS440/AN942/BFR540 |
| 49 |  |
LINK LEVER COMPL HR2811FT |
| 50 |  |
FILTER CAP HR2811FT/HK1820L |
| 51 |  |
O RING 16 2414K/HK1820L |
| 52 |  |
FILTER HR2811FT/HK1820L/HM0870 |
| 53 |  |
CRANK CAP HR2811FT |
| 54 |  |
O RING 30 HM1303B/HR2210/5000 |
| 55 |  |
CRANK HOUSING COMPL HR2811FT |
| 56 |  |
CRANK SHAFT HR2811FT |
| 57 |  |
BALL BEARING 6002LLU HK1800 |
| 58 |  |
*EXT DIN471 CIRCLIP-15 10PK |
| 59 |  |
C.C.SPRING 16-26 HR2811FT |
| 60 |  |
CLUTCH HR2811FT |
| 61 |  |
HELICAL GEAR HR2811FT |
| 62 |  |
FLAT WASHER 8 BO3710/11/HR2811 |
| 63 |  |
RETAININIG RING HR2811FT |
| 64 |  |
CUP WASHER 16 HR2811FT |
| 65 |  |
*KEY 4 HR3000C 10PK |
| 66 | SPIRAL BEVEL GEAR 9 HR2811FT | |
| 67 | *KEY 4 HR3000C 10PK | |
| 68 | BALL BEARING 6001LLU PW5000C | |
| 69 | TORQUE LIMITTER ASSY HR2811FT | |
| 70 | *EXT DIN 471 CIRCLIP-10 10PK | |
| 71 | BALL BEARING 608 2RS HR5001C | |
| 72 | SEAL RING HR2811FT | |
| 73 | GEAR HOUSING COMPL HR2811FT | |
| 74 | O-RING 26 BGA450/9553-55NB/GA4 | |
| 75 | OIL SEAL 12 HR2811FT/HR3540/41 | |
| 76 | SLEEVE 10 HR2811FT | |
| 77 | BALL BEARING 6000LLU HM1100C | |
| 78 | *THIN WASHER 10 10PK | |
| 80 | ARMATURE ASSY 110V HR2811FT | |
| 80 | ARMATURE ASSY 240V HR2811FT | |
| 81 | *TAPPING SCREW M4X70 10PK | |
| 82 | BALL BEARING 627DDW HP1641 | |
| 83 | INSULATION WASHER GD0810C/9564 | |
| 84 | BUFFLE PLATE HR2811FT | |
| 85 | FIELD ASSY 240V HR2811FT | |
| 85 | FIELD ASSY 115V HR2811FT | |
| 86 | MOTOR HOUSING HR2811FT | |
| 87 | BRUSH HOLDER HR2811FT | |
| 88 | TAPPING SCREW 3X10 HR2811FT | |
| 89 | CARBON BRUSH CB-325 9553-9555 | |
| 90 | LEAD CIRCUIT HR2811FT | |
| 91 | REAR COVER HR2811FT | |
| 92 | *TAPPING SCREW M4X18 10PK | |
| 93 | CHOKE COIL UNIT HR2811FT | |
| 94 | LEAD UNIT HR2811FT | |
| 95 | LEAD UNIT HR2811FT | |
| 96 | *TAPPING SCREW M4X18 10PK | |
| 97 | CHANGE LEVER COMPL HR2811FT | |
| 98 | COMPRESSION SPRING 14 HR2811FT | |
| 99 | *TAPPING SCREW M4X18 10PK | |
| 100 | SPRING GUIDE HR2811FT | |
| 101 | HANDLE BASE HR2811FT | |
| 102 | *PAN HDSCREW M5X35 W/CP 10PK | |
| 103 | TAPPING SCREW 5X20 HR2811FT | |
| 104 | HR2811F NAME PLATE | |
| 105 | F/R CHANGE LEVER HR2811FT | |
| 106 | DUST COVER SUPPORT HR2811FT | |
| 107 | DUST COVER HR2811FT | |
| 108 | HANDLE HR2811FT | |
| 109 | POWER SUPPLY CIRCUIT | |
| 109 | POWER SUPPLY CIRCUIT | |
| 110 | SWITCH LEVER HR2811FT | |
| 111 | SWITCH HOLDER COMPL HR2811FT | |
| 112 | SWITCH HR2811FT | |
| 113 | HANDLE COVER HR2811FT | |
| 114 | *TAPPING SCREW M4X18 10PK | |
| 115 | POWER SUPPLY CORD 1.0-2-4.0 | |
| 115 | POWER SUPPLY CORD 1.0-2-4.0 | |
| 116 | \\\'CORD GUARD 10 GA7010/9010/SA7 | |
| 117 | *TAPPING SCREW M4X18 10PK | |
| 118 | STRAIN RELIEF HM1317C/CB/HP162 | |
| 119 | SPONGE SHEET RP1110C/8406/3620 | |
| 120 | SHOULDER SLEEVE 6 HR2811FT | |
| 121 | *PT SCREW 5X25 10PK |
