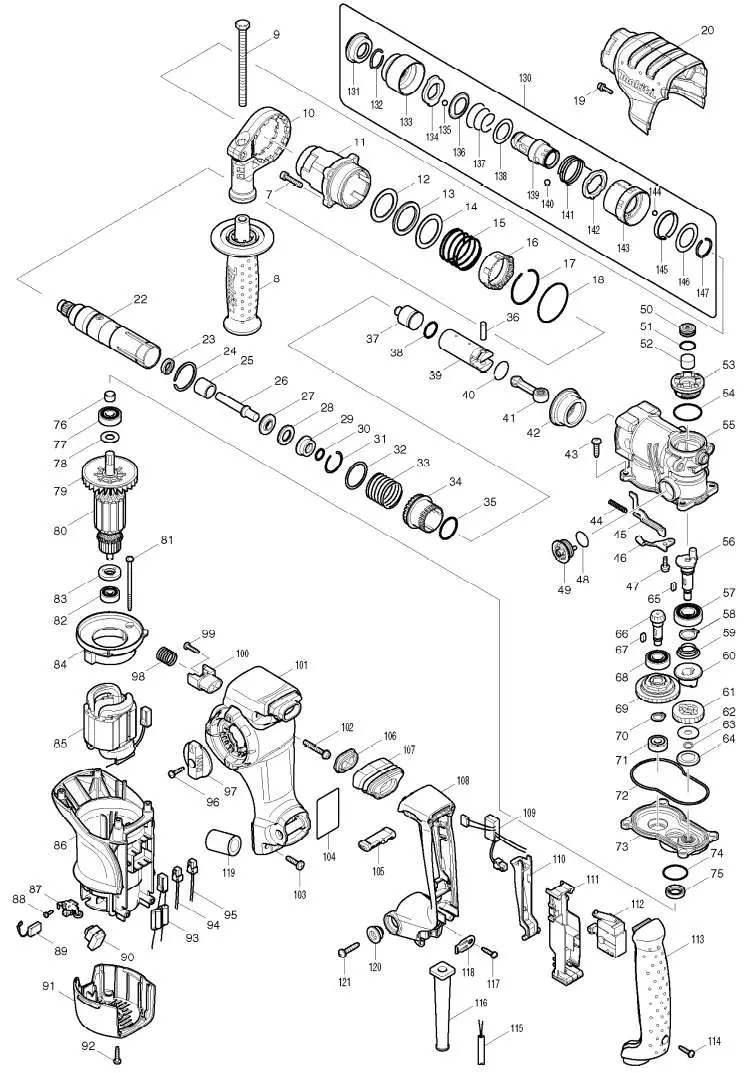

Деталировка
Деталировка
| П-п | Арт | Название |
|---|---|---|
| 7 | HEX. SOCKET HEAD BOLT M5X25 | |
| 8 | GRIP 36 COMPLETE | |
| 9 | HEX. BOLT M8X110 | |
| 10 | GRIP BASE 20 | |
| 11 | BARREL COMPLETE | |
| 12 | FLAT WASHER 31 | |
| 13 | URETHANE RING 31 | |
| 14 | FLAT WASHER 31 | |
| 15 | COMPRESSION SPRING 37 | |
| 16 | LOCK SLEEVE | |
| 17 | RING SPRING 41 | |
| 18 | O RING 46 | |
| 19 | HEX. SOCKET HEAD BOLT M4X16 | |
| 20 | CRANK HOUSING COVER | |
| 22 | TOOL HOLDER GUIDE COMPLETE | |
| 23 | OIL SEAL 9 | |
| 24 | RETAINING RING | |
| 25 | SLEEVE 9 | |
| 26 | IMPACT BOLT | |
| 27 | RING 10 | |
| 28 | CUSHION RING 13 | |
| 29 | O RING CASE | |
| 30 | O RING 9 | |
| 31 | RING SPRING 28 | |
| 32 | FLAT WASHER 29 | |
| 33 | COMPRESSION SPRING 30 | |
| 34 | DRIVING SLEEVE | |
| 35 | O RING 26 | |
| 36 | PIN 6 | |
| 37 | STRIKER | |
| 38 | O RING 16 | |
| 39 | PISTON CYLINDER | |
| 40 | RING SPRING 21 | |
| 41 | CONNECTING ROD COMPLETE | |
| 42 | SPIRAL BEVEL GEAR 31 | |
| 43 | TAPPING SCREW 5X20 | |
| 44 | COMPRESSION SPRING 4 | |
| 45 | LINK PLATE | |
| 46 | GUIDE PLATE | |
| 47 | PAN HEAD SCREW M4X12 | |
| 48 | O RING 18 | |
| 49 | LINK LEVER COMPLETE | |
| 50 | FILTER CAP | |
| 51 | O RING 16 | |
| 52 | FILTER | |
| 53 | CRANK CAP | |
| 54 | O RING 30 | |
| 55 | CRANK HOUSING COMPLETE | |
| 56 | CRANK SHAFT | |
| 57 | BALL BEARING 6002LLU | |
| 58 | RETAINING RING S-15 | |
| 59 | C. C. SPRING 16-26 | |
| 60 | CLUTCH | |
| 61 | HELICAL GEAR 29 | |
| 62 | FLAT WASHER 8 | |
| 63 | RETAINING RING | |
| 64 | CUP WASHER 16 | |
| 65 | KEY 4 | |
| 66 | SPIRAL BEVEL GEAR 9 | |
| 67 | KEY 4 | |
| 68 | BALL BEARING 6001LLU | |
| 69 | TORQUE LIMITTER ASS\\\\\'Y | |
| 70 | RETAINING RING S-10 | |
| 71 | BALL BEARING 608LLU | |
| 72 | SEAL RING | |
| 73 | GEAR HOUSING COMPLETE | |
| 74 | O-RING 26 | |
| 75 | OIL SEAL 12 | |
| 76 | SLEEVE 10 | |
| 77 | BALL BEARING 6000LLU | |
| 78 | FLAT WASHER 10 | |
| 79 | FAN 64 | |
| 80 | ARMATURE ASS\\\\\'Y 240V INC. 79,82,83 | |
| 81 | TAPPING SCREW 4X70 | |
| 82 | BALL BEARING 627DDW | |
| 83 | INSULATION WASHER | |
| 84 | BUFFLE PLATE | |
| 85 | FIELD ASS\\\\\'Y 240V | |
| 86 | MOTOR HOUSING | |
| 87 | BRUSH HOLDER | |
| 88 | TAPPING SCREW 3X10 | |
| 89 |  |
CARBON BRUSH CB-325 |
| 90 |  |
LED CIRCUIT |
| 91 |  |
REAR COVER |
| 92 |  |
TAPPING SCREW 4X18 |
| 93 |  |
CHOKE COIL UNIT |
| 94 |  |
LEAD UNIT |
| 95 |  |
LEAD UNIT |
| 96 |  |
TAPPING SCREW 4X18 |
| 97 |  |
CHANGE LEVER COMPLETE |
| 98 |  |
COMPRESSION SPRING 14 |
| 99 |  |
TAPPING SCREW 4X18 |
| 100 |  |
SPRING GUIDE |
| 101 |  |
HANDLE BASE |
| 102 |  |
PAN HEAD SCREW M5X35 |
| 103 |  |
TAPPING SCREW 5X20 |
| 104 |  |
HR2811FT NAME PLATEE |
| 105 |  |
F/R CHANGE LEVER |
| 106 |  |
DUST COVER SUPPORT |
| 107 |  |
DUST COVER |
| 108 |  |
HANDLE |
| 109 |  |
POWER SUPPLY CIRCUIT |
| 110 |  |
SWITCH LEVER |
| 111 |  |
SWITCH HOLDER COMPLETE |
| 112 |  |
SWITCH |
| 113 |  |
HANDLE COVER |
| 114 |  |
TAPPING SCREW 4X18 |
| 115 |  |
POWER SUPPLY CORD 1.0-2-4.0 |
| 116 |  |
CORD GUARD 10 |
| 117 |  |
TAPPING SCREW 4X18 |
| 118 |  |
STRAIN RELIEF |
| 119 |  |
SPONGE |
| 120 |  |
SHOULDER SLEEVE 6 |
| 121 |  |
TAPPING SCREW 5X25 |
| 130 |  |
TOOL HOLDER SET INC. 131-147 |
| 131 |  |
CAP 35 |
| 132 |  |
RING SPRING 19 |
| 133 |  |
CHUCK COVER |
| 134 |  |
STOPPER |
| 135 |  |
STEEL BALL 7.0 |
| 136 |  |
GUIDE WASHER |
| 137 |  |
CONICAL COMP. SPRING 21-29 |
| 138 |  |
FLAT WASHER 21 |
| 139 |  |
TOOL HOLDER |
| 140 |  |
STEEL BALL 6 |
| 141 |  |
TORSION SPRING 31 |
| 142 |  |
CHANGE RING |
| 143 |  |
CHANGE COVER |
| 144 |  |
STEEL BALL 5.0 |
| 145 |  |
LEAF SPRING |
| 146 |  |
FLAT WASHER 24 |
| 147 |  |
RING SPRING 21 |
| 148 | CLEAR LABEL | |
| A01 | DEPTH GAUGE | |
| A02 | PLASTIC CARRYING CASE | |
| A03 | HR2811FT PLASTIC CASE LABEL | |
| A04 | DRILL CHUCK SET |
