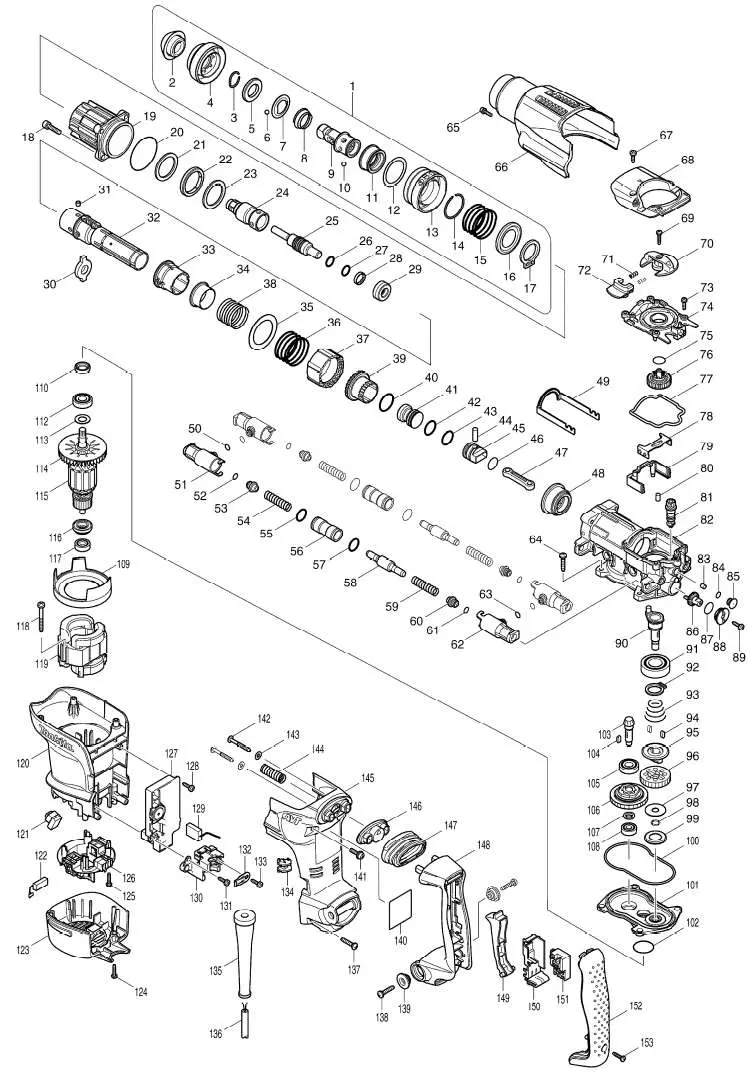

Деталировка

A B C D E F G H I J K L M N O P R S T U V W Y Z

П-п	Арт	Название
1		TOOL HOLDER ASS\\\\\'Y INC. 2-17
2		TOOL HOLDER CAP
3		RING SPRING 19
4		CHUCK COVER
5		RING 21
6		STEEL BALL 7.0
7		GUIDE WASHER
8		CONICAL COMPRESSIONSPRING22-32
9		TOOL HOLDER
10		STEEL BALL 6
11		CHANGE RING
12		FLAT WASHER 37
13		CHANGE COVER
14		RING SPRING 34
15		COMPRESSION SPRING 42
16		WASHER 28
17		RETAINING RING S-28
18		HEX. SOCKET HEAD BOLT M6X25
19		BARREL COMPLETE
20		O RING 53
21		FLAT WASHER 34
22		URETHAN RING 34
23		FLAT WASHER 34
24		TOOL HOLDER GUIDE
25		IMPACT BOLT
26		O RING 15
27		O RING 15
28		FLUORO CARBON RESIN RING 20
29		RUBBER RING 13
30		SLIDE PLATE
31		PIN 6
32		CYLINDER 25
33		SLIDE SLEEVE
34		RING 29
35		FLAT WASHER 40
36		COMPRESSION SPRING 42
37		LOCK SLEEVE
38		COMPRESSION SPRING 34
39		DRIVING SLEEVE
40		O RING 26
41		STRIKER
42		O-RING 18
43		O-RING 18
44		PIN 7
45		PISTON
46		O RING 18
47		CONECTING ROD
48		SPIRAL BEVEL GEAR 37
49		LINK ARM
50		O RING 8
51		PIPE HOLDER
52		O RING 8
53		SPRING GUIDE
54		COMPRESSION SPRING 10
55		O RING 18
56		PIPE 15
57		O RING 18
58		COUNTER WEIGHT
59		COMPRESSION SPRING 10
60		SPRING GUIDE
61		O RING 8
62		PIPE HOLDER
63		O RING 8
64		TAPPING SCREW 5X25
65		HEX. SOCKET HEAD BOLT M4X14
66		CRANK HOUSING COVER
67		TAPPING SCREW 4X14
68		CRANK CAP COVER
69		TAPPING SCREW 4X18
70		CHANGE LEVER
71		COMPRESSION SPRING 3
72		LOCK BUTTON
73		PAN HEAD SCREW M4X16
74		CRANK CAP
75		O RING 16
76		SPUR GEAR 33 COMPLETE
77		SEAL RING B
78		LINK PLATE
79		AIR PIPE
80		RUBBER PIN 6
81		GEAR SHAFT
82		CRANK HOUSING COMPLETE
83		FILTER
84		O RING 8
85		FILTER CAP
86		CRANK GEAR
87		O RING 14
88		CAP HOLDER
89		TAPPING SCREW 4X14
90		CRANK SHAFT
91		BALL BEARING 6004LLU
92		RETAINING RING S-20
93		CONICAL COMP. SPRING 21-31
94		KEY 4
95		CLUTCH
96		SPUR GEAR 33
97		FLAT WASHER 10
98		RETAINING RING WR-10
99		CUP WASHER 18
100		SEAL RING A
101		GEAR HOUSING COMPLETE
102		O RING 28
103		SPIRAL BEVEL GEAR 9
104		KEY 4
105		BALL BEARING 6001LLU
106		TORQUE LIMITER ASS\\\\\'Y
107		RING 10
108		BALL BEARING 608DDW
109		BAFFLE PLATE
110		OIL SEAL 12
112		BALL BEARING 6001LLU
113		FLAT WASHER 12
114		FAN 70
115		ARMATURE ASS\\\\\'Y 220-240V INC. 112-114,116,117
116		INSULATION WASHER
117		BALL BEARING 608DDW
118		TAPPING SCREW 5X45
119		FIELD 220-240V
120		MOTOR HOUSING
121		LED CIRCUIT
122		CARBON BRUSH CB-350
123		REAR COVER
124		TAPPING SCREW 4X18
125		TAPPING SCREW 4X18
126		BRUSH HOLDER UNIT
127		CONTROLLER
128		TAPPING SCREW 4X14
129		LEAD UNIT
130		CORD CLAMP BASE
131		TAPPING SCREW 4X14
132		STRAIN RELIEF
133		TAPPING SCREW 4X14
134		LENS
135		CORD GUARD 10
136		POWER SUPPLY CORD 1.5-2-4.0
137		TAPPING SCREW 5X25
138		TAPPING SCREW 5X25
139		SHOULDER SLEEVE 6
140		HR3210FCT NAME PLATE
141		PAN HEAD SCREW M5X20
142		TAPPING SCREW 5X40
143		FLAT WASHER 5
144		COMPRESSION SPRING 11
145		HANDLE BASE
146		DUST COVER SUPPORT
147		DUST COVER
148		HANDLE
149		SWITCH LEVER
150		SWITCH HOLDER COMPLETE
151		SWITCH TG73B-1
152		HANDLE COVER
153		TAPPING SCREW 4X18
154		FLAT WASHER 22
155		WAVE WASHER 15
156		O RING 9
A01		DRILL CHUCK SET
A02		GREASE VESSEL SET
A03		GRIP 36 ASS\\\\\'Y
A04		PLASTIC CARRYING CASE
A05		CAUTION CARD
A06		HR3210FCT MODEL NO.LABEL
