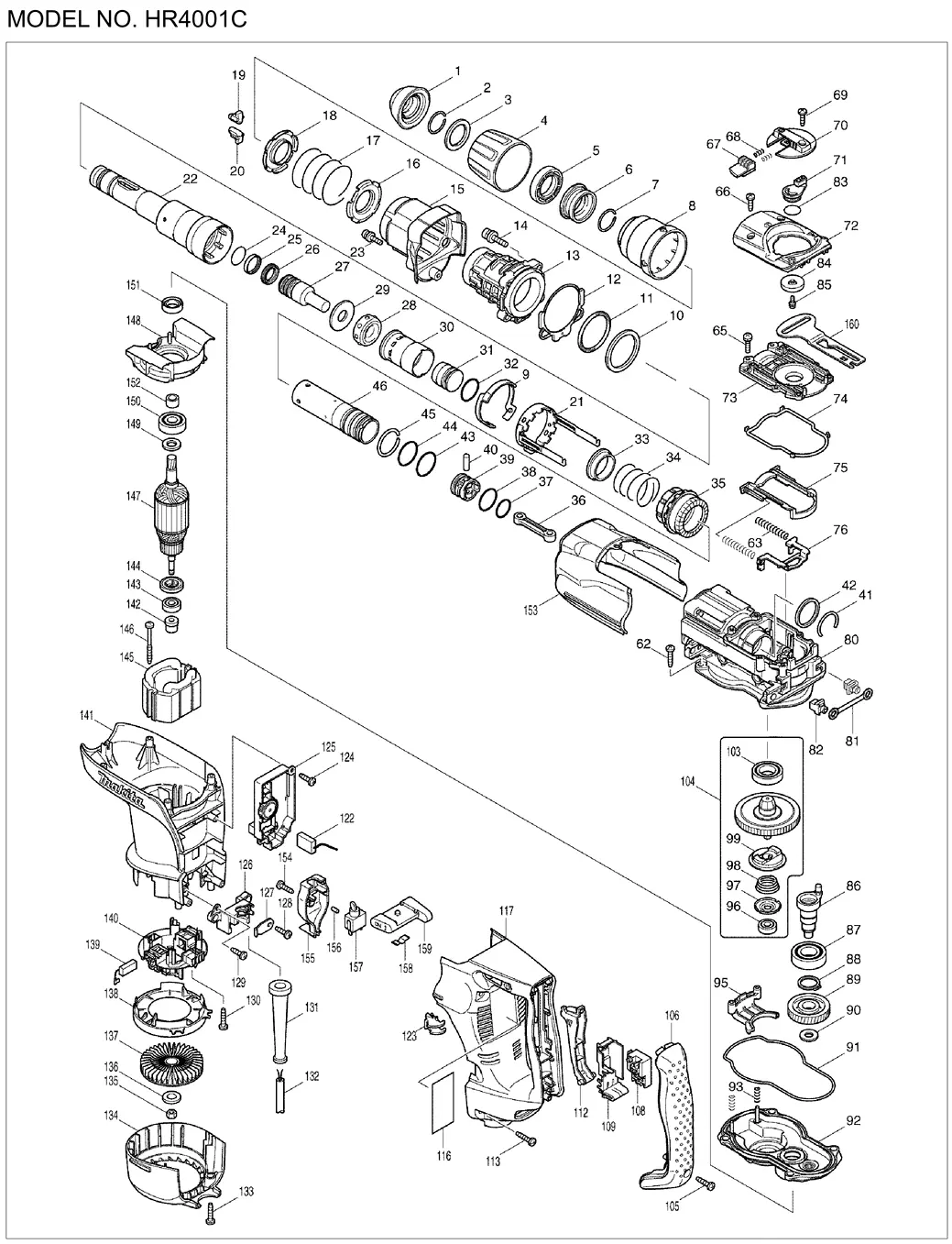

HR 4001 C Деталировка
HR 4001 C Деталировка
| П-п | Арт | Название |
|---|---|---|
| 1 | TOOL HOLDER CAP (new) | |
| 1 | TOOL HOLDER CAP (old) | |
| 2 | RING SPRING 25 | |
| 3 | FLAT WASHER 28 | |
| 4 | CHUCK COVER | |
| 5 | SPACER | |
| 6 | CHUCK RING | |
| 7 | RING SPRING 25 | |
| 8 | RELEASE COVER | |
| 9 | LOCK SLEEVE GUIDE (new) | |
| 9 | LOCK SLEEVE GUIDE (old) | |
| 10 | FLAT WASHER 45 (new) | |
| 10 | FLAT WASHER 45 (old) | |
| 11 | URETHAN RING 45 | |
| 12 | SEAL SHEET | |
| 13 | BARREL COMPLETE | |
| 14 | HEX.SOCKET HEAD BOLT M6X30 | |
| 15 | BARREL COVER COMPLETE | |
| 16 | SPRING GUIDE | |
| 17 | COMPRESSION SPRING 48 | |
| 18 | SPRING GUIDE | |
| 19 | TOOL RETAINER | |
| 20 | TOOL RETAINER | |
| 21 | LOCK SLEEVE (new) | |
| 21 | LOCK SLEEVE (old1) | |
| 21 | LOCK SLEEVE (old2) | |
| 22 | TOOL HOLDER | |
| 23 | HEX. SOCKET HEAD BOLT M4X16 (new) | |
| 23 | HEX. SOCKET HEAD BOLT M4X16 (old) | |
| 24 | O RING 20 | |
| 25 | FLUORIDE RING 25 | |
| 26 | X-RING 18 | |
| 27 | IMPACT BOLT | |
| 28 | RUBBER RING 17 | |
| 29 | RING 17 | |
| 30 | SLIDE SLEEVE | |
| 31 | STRIKER | |
| 32 | O RING 22 | |
| 33 | RING 33 | |
| 34 | COMPRESSION SPRING 37 | |
| 35 | STRAIGHT BEVEL GEAR 25 (new) | |
| 35 | STRAIGHT BEVEL GEAR 25 (old) | |
| 36 | CONNECTING ROD | |
| 37 | O RING 21 | |
| 38 | O RING 22 | |
| 39 | PISTON | |
| 40 | PIN 7 | |
| 41 | RING SPRING 31 | |
| 42 | RING 33 | |
| 43 | O RING 30 | |
| 44 | O RING 30 | |
| 45 | RING SPRING 32 | |
| 46 | CYLINDER 28.5 | |
| 62 | TAPPING SCREW 5X25 | |
| 63 | COMPRESSION SPRING 7 | |
| 65 | PAN HEAD SCREW M4X18 | |
| 66 | TAPPING SCREW 4X14 | |
| 67 | LOCK BUTTON | |
| 68 | COMPRESSION SPRING 3 | |
| 69 | TAPPING SCREW 4X14 | |
| 70 | CHANGE LEVER | |
| 71 | CRANK LEVER | |
| 72 | CRANK CAP COVER | |
| 73 | CRANK CAP | |
| 74 | SEAL RING | |
| 75 | LINK PLATE GUIDE | |
| 76 | LINK PLATE | |
| 80 | CRANK HOUSING COMPLETE | |
| 81 | CUSHION PLATE | |
| 82 | FIX GUIDE | |
| 83 | O RING 18 | |
| 84 | LINK LEVER | |
| 85 | PAN HEAD SCREW M4X10 | |
| 86 | CRANK SHAFT | |
| 87 |  |
BALL BEARING 6004LLU |
| 88 |  |
RETAINING RING S-20 |
| 89 |  |
HELICAL GEAR 38 |
| 90 |  |
FLAT WASHER 10 |
| 91 |  |
SEAL RING |
| 92 |  |
GEAR HOUSING COMPLETE |
| 93 |  |
COMPRESSION SPRING 5 |
| 95 |  |
CHANGE PLATE |
| 96 |  |
BALL BEARING 608DDW |
| 97 |  |
CUP WASHER 8 |
| 98 |  |
CONICAL COMPRESSIONSPRING19-27 |
| 99 |  |
DRIVING FLANGE |
| 103 |  |
BALL BEARING 6904LLU |
| 104 |  |
TORQUE LIMITER ASS\\\\\'Y INC. 96-103 (new) |
| 104 |  |
TORQUE LIMITER ASS\\\\\'Y INC. 96-103 (old) |
| 105 |  |
TAPPING SCREW 4X18 |
| 106 |  |
HANDLE COVER |
| 108 |  |
SWITCH C3PA-1111 (new) |
| 108 |  |
SWITCH TG73B-1 (old) |
| 109 |  |
SWITCH HOLDER COMPLETE |
| 112 |  |
SWITCH LEVER |
| 113 |  |
TAPPING SCREW 5X25 |
| 116 |  |
HR4001C NAME PLATE |
| 117 |  |
HANDLE |
| 122 |  |
LEAD UNIT |
| 123 |  |
LENS |
| 124 |  |
TAPPING SCREW 4X14 (new) |
| 124 |  |
TAPPING SCREW 4X14 (old) |
| 125 |  |
CONTROLLER |
| 126 |  |
CORD CLAMP BASE |
| 127 |  |
STRAIN RELIEF |
| 128 |  |
TAPPING SCREW 4X14 |
| 129 |  |
TAPPING SCREW 4X14 (new) |
| 129 |  |
TAPPING SCREW 4X14 (old) |
| 130 |  |
TAPPING SCREW 4X18 |
| 131 |  |
CORD GUARD 10 |
| 132 |  |
POWER SUPPLY CORD 1.5-2-4.0 (new) |
| 132 |  |
POWER SUPPLY CORD 1.5-2-4.0 (old1) |
| 132 |  |
POWER SUPPLY CORD 1.5-2-4.0 (old2) |
| 133 |  |
TAPPING SCREW 4X18 |
| 134 |  |
REAR COVER |
| 135 |  |
HEX. NUT M6 |
| 136 |  |
FLAT WASHER 6 |
| 137 |  |
FAN 76 |
| 138 |  |
FAN GUIDE |
| 139 |  |
CARBON BRUSH CB-350 |
| 140 |  |
BRUSH HOLDER UNIT (new) |
| 140 |  |
BRUSH HOLDER UNIT (old) |
| 141 |  |
MOTOR HOUSING COMPLETE |
| 142 |  |
SHOULDER SLEEVE 6 |
| 143 |  |
BALL BEARING 608DDW |
| 144 |  |
INSULATION WASHER |
| 145 |  |
FIELD 220-240V (new) |
| 145 |  |
FIELD 220-240V (old) |
| 146 |  |
TAPPING SCREW 5X55 |
| 147 |  |
ARMATURE ASS\\\\\'Y 220-240V INC. 143,144 аналога |
| 148 |  |
BAFFLE PLATE |
| 149 |  |
FLAT WASHER 12 |
| 150 |  |
BALL BEARING 6201LLU |
| 151 |  |
OIL SEAL 15 |
| 152 |  |
SLEEVE 12 |
| 153 |  |
CRANK HOUSING COVER |
| 154 |  |
TAPPING SCREW 4X14 |
| 155 |  |
SWITCH BOX |
| 156 |  |
RUBBER PIN 4 |
| 157 |  |
SWITCH ST115A-40 |
| 158 |  |
LEAF SPRING |
| 159 |  |
SLIDE LEVER COMPLETE |
| 160 |  |
CONTROL PLATE |
| 161 |  |
SPONGE SHEET |
| 162 |  |
CLEAR LABEL |
| A01 |  |
SIDE HANDLE 68 ASS\\\\\'Y |
| A02 |  |
GRIP 36 ASS\\\\\'Y (new) |
| A02 | GRIP 36 ASS\\\\\'Y (old) | |
| A03 | PLASTIC CASE SET (new) | |
| A03 | PLASTIC CARRYING CASE COMPLETE (old1) | |
| A03 | PLASTIC CARRYING CASE COMPLETE (old2) | |
| A03 | PLASTIC CARRYING CASE COMPLETE (old3) | |
| A04 | GREASE VESSEL SET (new) | |
| A04 | GREASE VESSEL 93G (old) | |
| A05 | CLOTH | |
| A07 | HR4001C PLASTIC CASE LABEL |
