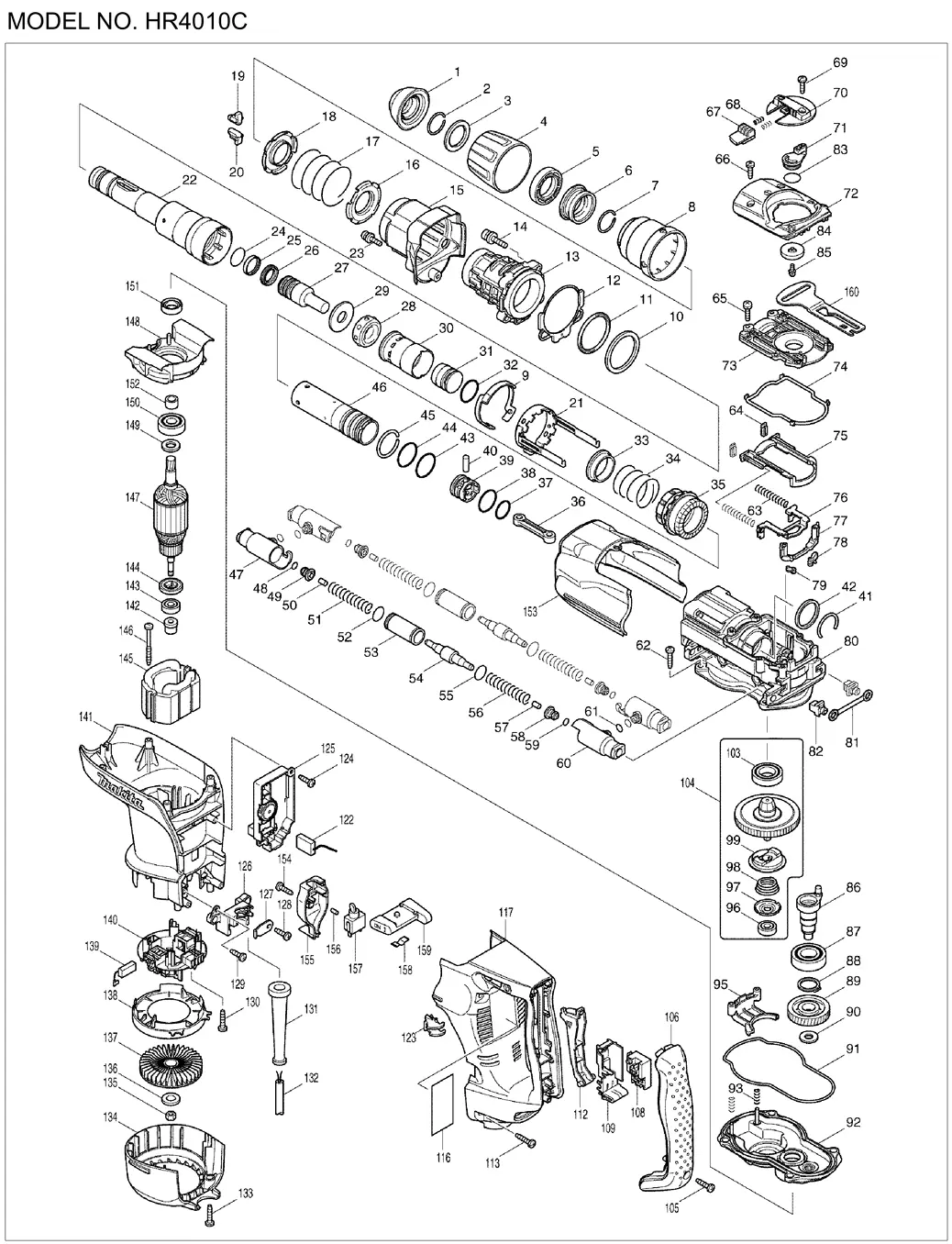

HR4010C Деталировка
HR4010C Деталировка
| П-п | Арт | Название |
|---|---|---|
| 1 |  |
TOOL HOLDER CAP (new) |
| 1 |  |
TOOL HOLDER CAP (old) |
| 2 |  |
RING SPRING 25 |
| 3 |  |
FLAT WASHER 28 |
| 4 |  |
CHUCK COVER |
| 5 |  |
SPACER |
| 6 |  |
CHUCK RING |
| 7 |  |
RING SPRING 25 |
| 8 |  |
RELEASE COVER |
| 9 |  |
LOCK SLEEVE GUIDE (new) |
| 9 |  |
LOCK SLEEVE GUIDE (old) |
| 10 |  |
FLAT WASHER 45 (new) |
| 10 |  |
FLAT WASHER 45 (old) |
| 11 |  |
URETHAN RING 45 |
| 12 |  |
SEAL SHEET |
| 13 |  |
BARREL COMPLETE |
| 14 | HEX.SOCKET HEAD BOLT M6X30 | |
| 15 | BARREL COVER COMPLETE | |
| 16 | SPRING GUIDE | |
| 17 | COMPRESSION SPRING 48 | |
| 18 | SPRING GUIDE | |
| 19 | TOOL RETAINER | |
| 20 | TOOL RETAINER | |
| 21 | LOCK SLEEVE (new) | |
| 21 | LOCK SLEEVE (old1) | |
| 21 | LOCK SLEEVE (old2) | |
| 22 | TOOL HOLDER | |
| 23 | HEX. SOCKET HEAD BOLT M4X16 (new) | |
| 23 | HEX. SOCKET HEAD BOLT M4X16 (old) | |
| 24 | O RING 20 | |
| 25 | FLUORIDE RING 25 | |
| 26 | X-RING 18 | |
| 27 | IMPACT BOLT | |
| 28 | RUBBER RING 17 | |
| 29 | RING 17 | |
| 30 | SLIDE SLEEVE | |
| 31 | STRIKER | |
| 32 | O RING 22 | |
| 33 | RING 33 | |
| 34 | COMPRESSION SPRING 37 | |
| 35 | STRAIGHT BEVEL GEAR 25 (new) | |
| 35 | STRAIGHT BEVEL GEAR 25 (old) | |
| 36 | CONNECTING ROD | |
| 37 | O RING 21 | |
| 38 | O RING 22 | |
| 39 | PISTON | |
| 40 | PIN 7 | |
| 41 | RING SPRING 31 | |
| 42 | RING 33 | |
| 43 | O RING 30 | |
| 44 | O RING 30 | |
| 45 | RING SPRING 32 | |
| 46 | CYLINDER 28.5 | |
| 47 | PIPE HOLDER | |
| 48 | O RING 8 | |
| 49 | SPRING GUIDE | |
| 50 | RUBBER PIN 6 | |
| 51 | COMPRESSION SPRING 11 | |
| 52 | O RING 18 | |
| 53 | PIPE 16 | |
| 54 | COUNTER WEIGHT (new) | |
| 54 | COUNTER WEIGHT (old) | |
| 55 | O RING 18 | |
| 56 | COMPRESSION SPRING 11 | |
| 57 | RUBBER PIN 6 | |
| 58 | SPRING GUIDE | |
| 59 | O RING 8 | |
| 60 | PIPE HOLDER | |
| 61 | O RING 8 | |
| 62 | TAPPING SCREW 5X25 | |
| 63 | COMPRESSION SPRING 7 | |
| 64 | SEAL PLATE | |
| 65 | PAN HEAD SCREW M4X18 | |
| 66 | TAPPING SCREW 4X14 | |
| 67 | LOCK BUTTON | |
| 68 | COMPRESSION SPRING 3 | |
| 69 | TAPPING SCREW 4X14 | |
| 70 | CHANGE LEVER | |
| 71 | CRANK LEVER | |
| 72 | CRANK CAP COVER | |
| 73 | CRANK CAP | |
| 74 | SEAL RING | |
| 75 | LINK PLATE GUIDE | |
| 76 | LINK PLATE | |
| 77 | AIR PIPE | |
| 78 | AIR PIPE SEAL | |
| 79 | AIR PIPE SEAL | |
| 80 | CRANKHOUSING COMPLETE | |
| 81 | CUSHION PLATE | |
| 82 | FIX GUIDE | |
| 83 | O RING 18 | |
| 84 | LINK LEVER | |
| 85 | PAN HEAD SCREW M4X10 | |
| 86 | CRANK SHAFT | |
| 87 | BALL BEARING 6004LLU | |
| 88 | RETAINING RING S-20 | |
| 89 | HELICAL GEAR 38 | |
| 90 | FLAT WASHER 10 | |
| 91 | SEAL RING | |
| 92 | GEAR HOUSING COMPLETE | |
| 93 | COMPRESSION SPRING 5 | |
| 95 | CHANGE PLATE | |
| 96 | BALL BEARING 608DDW | |
| 97 | CUP WASHER 8 | |
| 98 | CONICAL COMPRESSIONSPRING19-27 | |
| 99 | DRIVING FLANGE | |
| 103 | BALL BEARING 6904LLU | |
| 104 | TORQUE LIMITER ASS\\\'Y INC. 96-103 (new) | |
| 104 | TORQUE LIMITER ASS\\\'Y INC. 96-103 (old) | |
| 105 | TAPPING SCREW 4X18 | |
| 106 | HANDLE COVER | |
| 108 | SWITCH C3PA-1111 (new) | |
| 108 | SWITCH TG73B-1 (old) | |
| 109 | SWITCH HOLDER COMPLETE | |
| 112 | SWITCH LEVER | |
| 113 | TAPPING SCREW 5X25 | |
| 116 | HR4010C NAME PLATE | |
| 117 | HANDLE | |
| 122 | LEAD UNIT | |
| 123 | LENS | |
| 124 | TAPPING SCREW 4X14 (new) | |
| 124 | TAPPING SCREW 4X14 (old) | |
| 125 | CONTROLLER | |
| 126 | CORD CLAMP BASE | |
| 127 | STRAIN RELIEF | |
| 128 | TAPPING SCREW 4X14 | |
| 129 | TAPPING SCREW 4X14 (new) | |
| 129 | TAPPING SCREW 4X14 (old) | |
| 130 | TAPPING SCREW 4X18 | |
| 131 | CORD GUARD 10 | |
| 132 | POWER SUPPLY CORD 1.5-2-4.0 (new) | |
| 132 | POWER SUPPLY CORD 1.5-2-4.0 (old1) | |
| 132 | POWER SUPPLY CORD 1.5-2-4.0 (old2) | |
| 133 | TAPPING SCREW 4X18 | |
| 134 | REAR COVER | |
| 135 | HEX. NUT M6 | |
| 136 | FLAT WASHER 6 | |
| 137 | FAN 76 | |
| 138 | FAN GUIDE | |
| 139 | CARBON BRUSH CB-350 | |
| 140 | BRUSH HOLDER UNIT (new) | |
| 140 | BRUSH HOLDER UNIT (old) | |
| 141 | MOTOR HOUSING COMPLETE | |
| 142 | SHOULDER SLEEVE 6 | |
| 143 | BALL BEARING 608DDW | |
| 144 | INSULATION WASHER | |
| 145 | FIELD 220-240V (new) | |
| 145 | FIELD 220-240V (old) | |
| 146 | TAPPING SCREW 5X55 | |
| 147 | ARMATURE ASS\\\'Y 220-240V INC. 143,144 | |
| 148 | BAFFLE PLATE | |
| 149 | FLAT WASHER 12 | |
| 150 | BALL BEARING 6201LLU | |
| 151 | OIL SEAL 15 | |
| 152 | SLEEVE 12 | |
| 153 | CRANK HOUSING COVER | |
| 154 | TAPPING SCREW 4X14 | |
| 155 | SWITCH BOX | |
| 156 | RUBBER PIN 4 | |
| 157 | SWITCH ST115A-40 | |
| 158 | LEAF SPRING | |
| 159 | SLIDE LEVER COMPLETE | |
| 160 | CONTROL PLATE | |
| 161 | SPONGE SHEET | |
| 162 | CLEAR LABEL | |
| A01 | SIDE HANDLE 68 ASS\\\'Y | |
| A02 | GRIP 36 ASS\\\'Y (new) | |
| A02 | GRIP 36 ASS\\\'Y (old) | |
| A03 | PLASTIC CASE SET (new) | |
| A03 | PLASTIC CARRYING CASE COMPLETE (old1) | |
| A03 | PLASTIC CARRYING CASE COMPLETE (old2) | |
| A03 | PLASTIC CARRYING CASE COMPLETE (old3) | |
| A04 | GREASE VESSEL SET (new) | |
| A04 | GREASE VESSEL 93G (old) | |
| A05 | CLOTH | |
| A06 | HR4010C PLASTIC CASE LABEL |
