HR 4510 C/

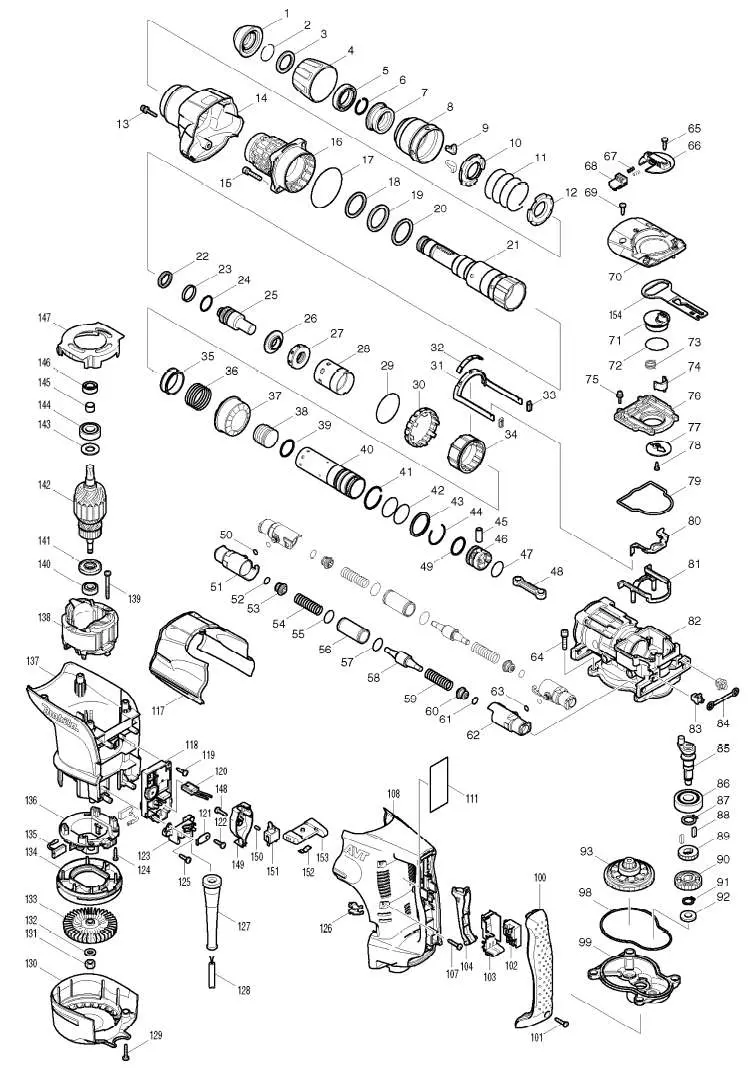

Деталировка
Деталировка
| П-п | Арт | Название |
|---|---|---|
| 1 | TOOL HOLDER CAP | |
| 2 | RING SPRING 25 | |
| 3 | RING 28 | |
| 4 | CHUCK COVER | |
| 5 | SPACER | |
| 6 | RING SPRING 25 | |
| 7 | CHUCK RING | |
| 8 | RELEASE COVER | |
| 9 | TOOL RETAINER | |
| 10 | SPRING GUIDE | |
| 11 | COMPRESSION SPRING 49 | |
| 12 | SPRING GUIDE | |
| 13 | HEX. SOCKET HEAD BOLT M4X25 | |
| 14 | BARREL COVER COMPLETE | |
| 15 | HEX.SOCKET HEAD BOLT M6X30 | |
| 16 | BARREL COMPLETE | |
| 17 | O RING 71 | |
| 18 | FLAT WASHER 36 | |
| 19 | RUBBER RING 36 | |
| 20 | FLAT WASHER 36 | |
| 21 | TOOL HOLDER | |
| 22 | X-RING 21 | |
| 23 | FLUORIDE RING 28 | |
| 24 | O RING 23 | |
| 25 | IMPACT BOLT | |
| 26 | RING 19 | |
| 27 | RUBBER RING 20 | |
| 28 | SLIDE SLEEVE | |
| 29 | O RING 53 | |
| 30 | LOCK SLEEVE | |
| 31 | LINK ARM | |
| 32 | LINK ARM GUIDE | |
| 33 | SEAL PLATE | |
| 34 | DRIVING SLEEVE | |
| 35 | RING 38 | |
| 36 | COMPRESSION SPRING 39 | |
| 37 | STRAIGHT BEVEL GEAR 35 | |
| 38 | STRIKER | |
| 39 | O-RING 27 | |
| 40 | CYLINDER 34 | |
| 41 | RING SPRING 37 | |
| 42 | O RING 35 | |
| 43 | RING 38 | |
| 44 | RING SPRING 36 | |
| 45 | PIPE 10 | |
| 46 | PISTON | |
| 47 | O RING 26 | |
| 48 | CONECTING ROD | |
| 49 | O-RING 27 | |
| 50 | O RING 8 | |
| 51 |  |
PIPE HOLDER |
| 52 |  |
O RING 12 |
| 53 |  |
SPRING GUIDE |
| 54 |  |
COMPRESSION SPRING 14 |
| 55 |  |
O RING 22 |
| 56 |  |
PIPE 20 |
| 57 |  |
O RING 22 |
| 58 |  |
COUNTER WEIGHT |
| 59 |  |
COMPRESSION SPRING 14 |
| 60 |  |
SPRING GUIDE |
| 61 |  |
O RING 12 |
| 62 |  |
PIPE HOLDER |
| 63 |  |
O RING 8 |
| 64 |  |
HEX.SOCKET HEAD BOLT M6X30 |
| 65 |  |
TAPPING SCREW 4X14 |
| 66 |  |
CHANGE LEVER |
| 67 |  |
COMPRESSION SPRING 3 |
| 68 |  |
LOCK BUTTON |
| 69 |  |
TAPPING SCREW 4X14 |
| 70 |  |
CRANK CAP COVER |
| 71 |  |
CRANK LEVER |
| 72 |  |
O RING 36 |
| 73 |  |
TORSION SPRING 16 |
| 74 |  |
LINK LEVER |
| 75 |  |
PAN HEAD SCREW M4X18 |
| 76 |  |
CRANK CAP |
| 77 |  |
RETAINER PLATE |
| 78 |  |
+ PAN HEAD SCREW M4X12 |
| 79 |  |
SEAL RING |
| 80 |  |
LINK PLATE |
| 81 |  |
LINK PLATE GUIDE |
| 82 |  |
CRANK HOUSING COMPLETE |
| 83 |  |
FIX GUIDE |
| 84 |  |
CUSHION PLATE |
| 85 |  |
CRANK SHAFT |
| 86 |  |
BALL BEARING 6303LLU |
| 87 |  |
RETAINING RING S-17 |
| 88 |  |
KEY 5 |
| 89 |  |
SPUR GEAR 19 |
| 90 |  |
HELICAL GEAR 36 |
| 91 |  |
RETAINING RING S-14 |
| 92 |  |
FLAT WASHER 10 |
| 93 |  |
TORQUE LIMITER ASS\\\'Y |
| 98 |  |
SEAL RING |
| 99 |  |
GEAR HOUSING COMPLETE |
| 100 |  |
HANDLE COVER |
| 101 |  |
TAPPING SCREW 4X18 |
| 102 |  |
SWITCH TG73B-1 |
| 103 |  |
SWITCH HOLDER COMPLETE |
| 104 |  |
SWITCH LEVER |
| 107 |  |
TAPPING SCREW 5X25 |
| 108 |  |
HANDLE |
| 111 |  |
HR4510C NAME PLATE |
| 117 |  |
CRANK HOUSING COVER |
| 118 |  |
CONTROLLER |
| 119 |  |
TAPPING SCREW 4X14 |
| 120 |  |
LEAD UNIT |
| 121 |  |
STRAIN RELIEF |
| 122 |  |
TAPPING SCREW 4X14 |
| 123 |  |
CORD CLAMP BASE |
| 124 |  |
TAPPING SCREW 4X18 |
| 125 |  |
TAPPING SCREW 4X14 |
| 126 |  |
LENS |
| 127 |  |
CORD GUARD 10 |
| 128 |  |
POWER SUPPLY CORD 1.5-2-4.0 |
| 129 |  |
TAPPING SCREW 5X25 |
| 130 |  |
REAR COVER |
| 131 |  |
HEX. NUT M8-12 |
| 132 |  |
FLAT WASHER 8 |
| 133 |  |
FAN 90 |
| 134 |  |
FAN GUIDE |
| 135 |  |
CARBON BRUSH CB-171 |
| 136 |  |
BRUSH HOLDER UNIT |
| 137 |  |
MOTOR HOUSING |
| 138 |  |
FIELD 220-240V |
| 139 |  |
TAPPING SCREW 5X50 |
| 140 |  |
BALL BEARING 6000DDW |
| 141 |  |
INSULATION WASHER |
| 142 |  |
ARMATURE ASS\\\'Y 220-240V |
| INC. 140,141,145 |  |
|
| 143 |  |
FLAT WASHER 15 |
| 144 |  |
BALL BEARING 6202LLU |
| 145 |  |
SLEEVE 12 |
| 146 |  |
OIL SEAL 15 |
| 147 |  |
BAFFLE PLATE |
| 148 |  |
TAPPING SCREW 4X14 |
| 149 |  |
SWITCH BOX |
| 150 |  |
RUBBER PIN 4 |
| 151 |  |
SWITCH ST115A-40 |
| 152 |  |
LEAF SPRING |
| 153 |  |
SLIDE LEVER COMPLETE |
| 154 |  |
CONTROL PLATE |
| 155 |  |
SHOULDER SLEEVE 19 |
| 156 |  |
CLEAR LABEL |
| A01 |  |
GRIP 36 COMPLETE |
| A02 |  |
PLASTIC CARRYING CASE COMPLETE |
| A03 |  |
GREASE VESSEL SET |
| A04 |  |
SIDE HANDLE 68 ASS\\\'Y |
| A05 |  |
CLOTH |
| A06 |  |
SCREW M6X14 |
| A07 |  |
CUP SQUARE NECK BOLT M8X80 |
| A08 |  |
DEPTH GAUGE |
| A09 | GRIP SPRING 68 | |
| A10 | PLATE | |
| A11 | SIDE GRIP BASE 68 | |
| A12 | HEX. NUT M6 | |
| A13 | HR4510C PLASTIC CASE LABEL |
