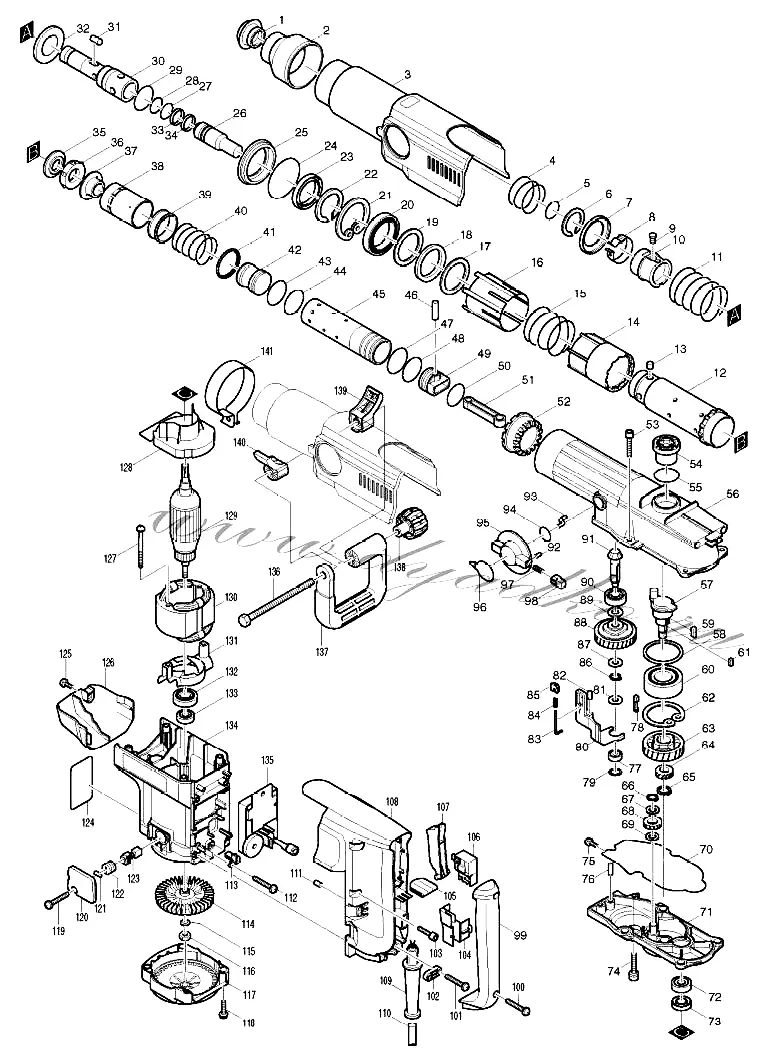

Деталировка

A B C D E F G H I J K L M N O P R S T U V W Y Z

П-п	Арт	Название
1		TOOL HOLDER CAP
2		CHUCK COVER
3		CRANK HOUSING COVER COMPLETE
4		COMPRESSION SPRING 51
5		RING SPRING 25
6		RETAINING RING WR-45
7		CUP WASHER 45
8		LEAF SPRING 41
9		PIN 8
10		CHUCK RING
11		COMPRESSION SPRING 55
12		TOOL HOLDER B
13		PIN 10
14		LOCK SLEEVE A
15		COMPRESSION SPRING 58
16		LOCK SLEEVE B
17		FLAT WASHER 50
18		URETHANE SLEEVE 50
19		FLAT WASHER 50
20		BALL BEARING 6910
21		RETAINING RING R-72
22		RETAINING RING WR-50
23		OIL SEAL 48
24		O RING 67
25		SEAL CASE
26		IMPACT BOLT
27		O RING 23
28		O RING 23
29		O RING 36
30		TOOL HOLDER A
31		ROLLER 8
32		CUP WASHER 37
33		FLUORIDE RING 28
34		FLUORIDE RING 28
35		RING 22
36		RUBBER RING 24
37		COLLAR SLEEVE 22
38		SLIDE SLEEVE
39		RING 45
40		COMPRESSION SPRING 45
41		WASHER 45
42		STRIKER
43		O RING 34
44		RING SPRING 43
45		CYLINDER 40
46		PIN 10
47		O RING 36
48		O RING 34
49		PISTON
50		O RING 35
51		ROD
52		SPIRAL BEVEL GEAR 41
53		HEX. SOCKET HEAD BOLT M6X40
54		CRANK CAP
55		O RING 36
56		CRANK HOUSING COMPLETE
57		CRANK SHAFT
58		FLAT WASHER 56
59		KEY 5
60		BALL BEARING 62/32 2RS
61		KEY 4
62		RETAINING RING R-65
63		HELICAL GEAR 50
64		HELICAL GEAR 20A
65		RETAINING RING S-14
66		RETAINING RING S-12
67		FLAT WASHER 12
68		HELICAL GEAR
69		FLAT WASHER 12
70		SEAL RING
71		GEAR HOUSING COMPLETE
72		BALL BEARING 6201DDW
73		OIL SEAL 14
74		HEX. SOCKET HEAD BOLT M6X30
75		PAN HEAD SCREW M5X16
76		PIN 7
77		BALL BEARING 608LLU
78		CHANGE KEY
79		THIN WASHER 15
80		CHANGE LINK
81		FLAT WASHER 12
82		PIN 5 фото
83		GUIDE PIN 2
84		COMPRESSION SPRING 3
85		SLIDE PLATE
86		RETAINING RING S-12
87		FLAT WASHER 12
88		TORQUE LIMITER COMPLETE
89		FLAT WASHER 12
90		BALL BEARING 6201
91		SPIRAL BEVEL GEAR 12
92		PIN 4
93		CRANK PIN 4
94		O RING 20
95		CHANGE LEVER фото аналога
96		INDICATION LABEL
97		COMPRESSION SPRING 2.4
98		LOCK BUTTON
99		HANDLE COVER
100		TAPPING SCREW 4X18
101		TAPPING SCREW 4X18
102		STRAIN RELIEF
103		HEX.SOCKET HEAD BOLT M6X30
104		LEAD GUIDE
105		SPONGE SHEET
106		SWITCH TG71B
107		SWITCH LEVER
108		HANDLE
109		CORD GUARD 10
110		POWER SUPPLY CORD 1.0-2-5.0
111		ACRYLIC PIN 5
112		TAPPING SCREW 4X18
113		FIX ROD
114		FAN 90
115		FLAT WASHER 8
116		HEX. NUT M8
117		REAR COVER
118		TAPPING SCREW 5X20
119		TAPPING SCREW 4X18
120		BRUSH HOLDER COVER
121		RUBBER PIN 4
122		BRUSH HOLDER CAP 6.5-13.5
123		A.C. CARBON BRUSH CB-155
124		NAME PLATE HR5001C
125		PAN HEAD SCREW M5X16
126		GEAR HOUSING COVER
127		TAPPING SCREW 5X55
128		BAFFLE PLATE
129		ARMATURE ASS\\\\\'Y 220-240V (INC. 132,133)
130		FIELD 220-240V
131		DUST GUIDE
132		INSULATION WASHER
133		BALL BEARING 6000DDW
134		MOTOR HOUSING COMPLETE
135		CONTROLLER
136		HEX. BOLT M8X150
137		SIDE HANDLE
138		WING NUT M8
141		Хомут
143		SIDE HANDLE CAM
A01		ручка в сборе
A02		SCREW M6X14
A03		CUP SQUARE NECK BOLT M8X80
A04		PLATE
A05		GRIP SPRING 87
A06		SIDE GRIP BASE 87
A07		HEX. NUT M6
A08		PLASTIC CARRYING CASE
A09		GREASE VESSEL SET
B02		D-образная ручка в сборе 87 (INC. 136-138,141,143)
