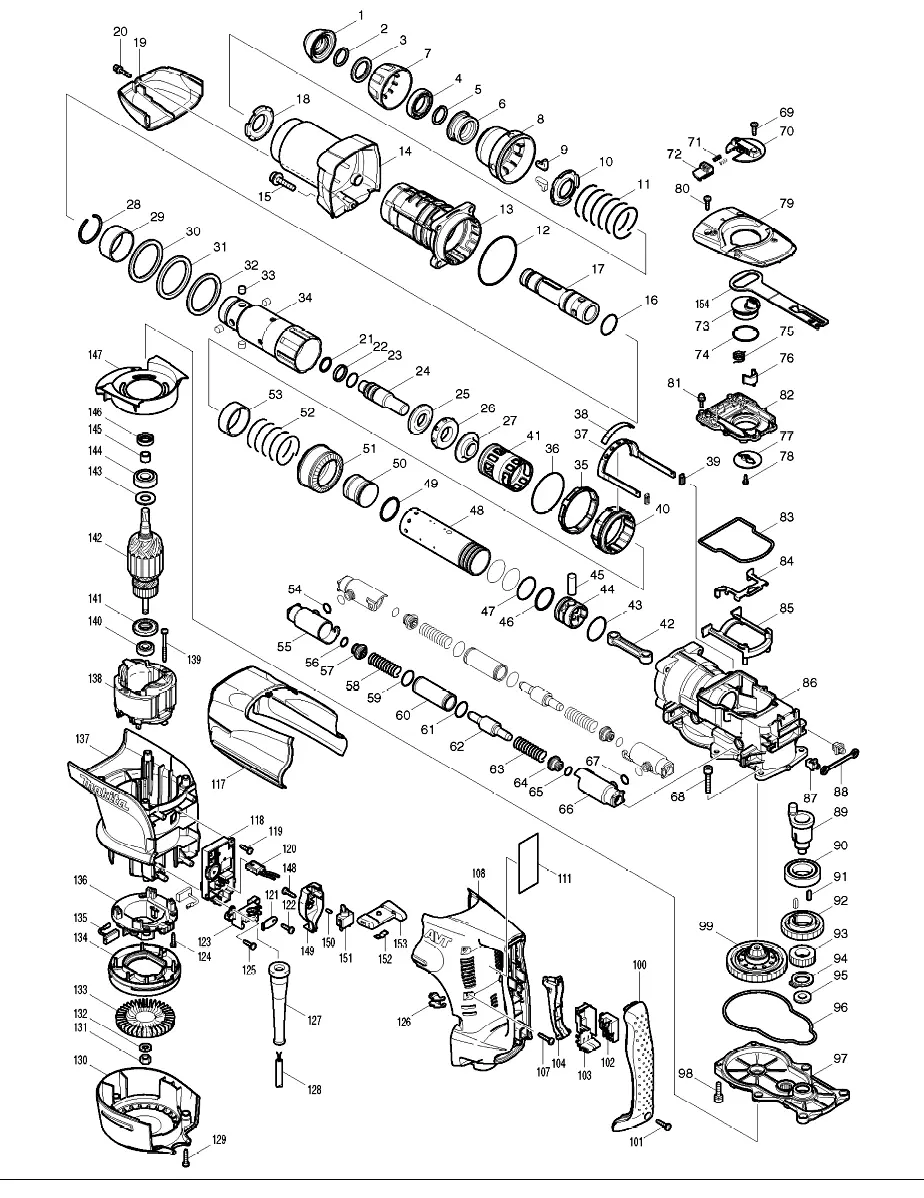

Деталировка
Деталировка
| П-п | Арт | Название |
|---|---|---|
| 1 | TOOL HOLDER CAP | |
| 2 | RING SPRING 25 | |
| 3 | RING 28 | |
| 4 | SPACER | |
| 5 | RING SPRING 25 | |
| 6 |  |
CHUCK RING |
| 7 |  |
CHACK COVER |
| 8 |  |
RELEASE COVER |
| 9 |  |
TOOL RETAINER |
| 10 |  |
SPRING GUIDE |
| 11 |  |
COMPRESSION SPRING 49 |
| 12 |  |
O-RING 78 |
| 13 |  |
BARREL COMPLETE |
| 14 |  |
BARREL COVER COMPLETE |
| 15 |  |
HEX. SOCKET HEAD BOLT M8X35 |
| 16 |  |
O-RING 32 |
| 17 |  |
TOOL HOLDER A |
| 18 |  |
SPRING GUIDE |
| 19 |  |
GEAR HOUSING COVER |
| 20 |  |
HEX. SOCKET HEAD BOLT M4X25 |
| 21 |  |
O RING 18 |
| 22 |  |
FLUORIDE RING 25 |
| 23 |  |
O RING 20 |
| 24 |  |
IMPACT BOLT |
| 25 |  |
RING 20 |
| 26 |  |
RUBBUR RING 24 |
| 27 |  |
COLLAR SLEEVE 20 |
| 28 |  |
RING SPRING 44 |
| 29 |  |
RING 47 |
| 30 |  |
FLAT WASHER 57 |
| 31 |  |
URETAHNE RING 57 |
| 32 |  |
FLAT WASHER 57 |
| 33 |  |
PIN 10 |
| 34 |  |
TOOL HOLDER B |
| 35 |  |
LOCK SLEEVE |
| 36 |  |
O RING 60 |
| 37 |  |
RINK ARM |
| 38 |  |
LINK ARM GUIDE |
| 39 |  |
SEAL PLATE |
| 40 |  |
DRIVING SLEEVE |
| 41 |  |
SLIDE SLEEVE |
| 42 |  |
CONECTING ROD |
| 43 |  |
O RING 35 |
| 44 |  |
PISTON |
| 45 |  |
PIN 12 |
| 46 |  |
O-RING 34 |
| 47 |  |
O RING 36 |
| 48 |  |
CYLINDER 40 |
| 49 |  |
O-RING 34 |
| 50 |  |
STRIKER |
| 51 |  |
STRAIGHT BEVEL GEAR 33 |
| 52 |  |
COMPRESSION SPRING 46 |
| 53 |  |
RING 45 |
| 54 |  |
O RING 12 |
| 55 |  |
PIPE HOLDER |
| 56 |  |
O RING 12 |
| 57 | SPRING GUIDE | |
| 58 | COMPRESSION SPRING 15 | |
| 59 | O RING 24 | |
| 60 | PIPE 22 | |
| 61 | O RING 24 | |
| 62 | COUNTER WEIGHT | |
| 63 | COMPRESSION SPRING 15 | |
| 64 | SPRING GUIDE | |
| 65 | O RING 12 | |
| 66 | PIPE HOLDER | |
| 67 | O RING 12 | |
| 68 | HEX. SOCKET HEAD BOLT M6X40 | |
| 69 | TAPPING SCREW 4X14 | |
| 70 | CHANGE LEVER | |
| 71 | COMPRESSION SPRING 3 | |
| 72 | LOCK BUTTON | |
| 73 | CRANK LEVER | |
| 74 | O RING 36 | |
| 75 | TORSION SPRING 16 | |
| 76 | LINK LEVER | |
| 77 | RETAINER PLATE | |
| 78 | + PAN HEAD SCREW M4X12 | |
| 79 | CRANK CAP COVER | |
| 80 | TAPPING SCREW 4X14 | |
| 81 | PAN HEAD SCREW M4X18 | |
| 82 | CRANK CAP | |
| 83 | SEAL RING | |
| 84 | LINK PLATE | |
| 85 | LINK PLATE GUIDE | |
| 86 | CRANK HOUSING COMPLETE | |
| 87 | FIX GUIDE | |
| 88 | CUSHION PLATE | |
| 89 | CRANK SHAFT | |
| 90 | BALL BEARING 6006LLU | |
| 91 | KEY 5 | |
| 92 | HELICAL GEAR 47 | |
| 93 | SPUR GEAR 24 | |
| 94 | RETAINING RING S-22 | |
| 95 | FLAT WASHER 12 | |
| 96 | SEAL RING | |
| 97 | GEAR HOUSING COMPLETE | |
| 98 | HEX. SOCKET HEAD BOLT M6X25 | |
| 99 | TORQUE LIMITER ASS\\\\\'Y | |
| 100 | HANDLE COVER | |
| 101 | TAPPING SCREW 4X18 | |
| 102 | SWITCH TG73B-1 | |
| 103 | SWITCH HOLDER COMPLETE | |
| 104 | SWITCH LEVER | |
| 107 | TAPPING SCREW 5X25 | |
| 108 | HANDLE | |
| 111 | HR5210C NAME PLATE | |
| 117 | CRANK HOUSING COVER | |
| 118 | CONTROLLER | |
| 119 | TAPPING SCREW 4X14 | |
| 120 | LEAD UNIT | |
| 121 | STRAIN RELIEF | |
| 122 | TAPPING SCREW 4X14 | |
| 123 | CORD CLAMP BASE | |
| 124 | TAPPING SCREW 4X18 | |
| 125 | TAPPING SCREW 4X14 | |
| 126 | LENS | |
| 127 | CORD GUARD 10 | |
| 128 | POWER SUPPLY CORD 1.5-2-4.0 | |
| 129 | TAPPING SCREW 5X25 | |
| 130 | REAR COVER | |
| 131 | HEX. NUT M8-12 | |
| 132 | FLAT WASHER 8 | |
| 133 | FAN 90 | |
| 134 | FAN GUIDE | |
| 135 | CARBON BRUSH CB-171 | |
| 136 | BRUSH HOLDER UNIT | |
| 137 | MOTOR HOUSING | |
| 138 | FIELD 220-240V | |
| 139 | TAPPING SCREW 5X55 | |
| 140 | BALL BEARING 6000DDW | |
| 141 | INSULATION WASHER | |
| 142 | ARMATURE ASS\\\\\'Y 220-240V INC. 140,141,145 | |
| 143 | FLAT WASHER 15 | |
| 144 | BALL BEARING 6202LLU | |
| 145 | SLEEVE 12 | |
| 146 | OIL SEAL 15 | |
| 147 | BAFFLE PLATE | |
| 148 | TAPPING SCREW 4X14 | |
| 149 | SWITCH BOX | |
| 150 | RUBBER PIN 4 | |
| 151 | SWITCH ST115A-40 | |
| 152 | LEAF SPRING | |
| 153 | SLIDE LEVER COMPLETE | |
| 154 | CONTROL PLATE | |
| 155 | CLEAR LABEL | |
| A01 | GRIP 36 COMPLETE | |
| A02 | PLASTIC CARRYING CASE COMPLETE | |
| A03 | GREASE VESSEL SET | |
| A04 | SIDE HANDLE 82 ASS\\\\\'Y | |
| A05 | SCREW M6X14 | |
| A06 | CUP SQUARE NECK BOLT M8X80 | |
| A07 | DEPTH GAUGE | |
| A08 | PLATE | |
| A09 | GRIP SPRING 82 | |
| A10 | SIDE GRIP BASE 82 | |
| A11 | CLOTH | |
| A12 | HEX. NUT M6 | |
| A13 | HR5210C PLASTIC CASE LABEL | |
| A14 | GRIP 36 ASSY INC. A01,A05-A10,A12 |
