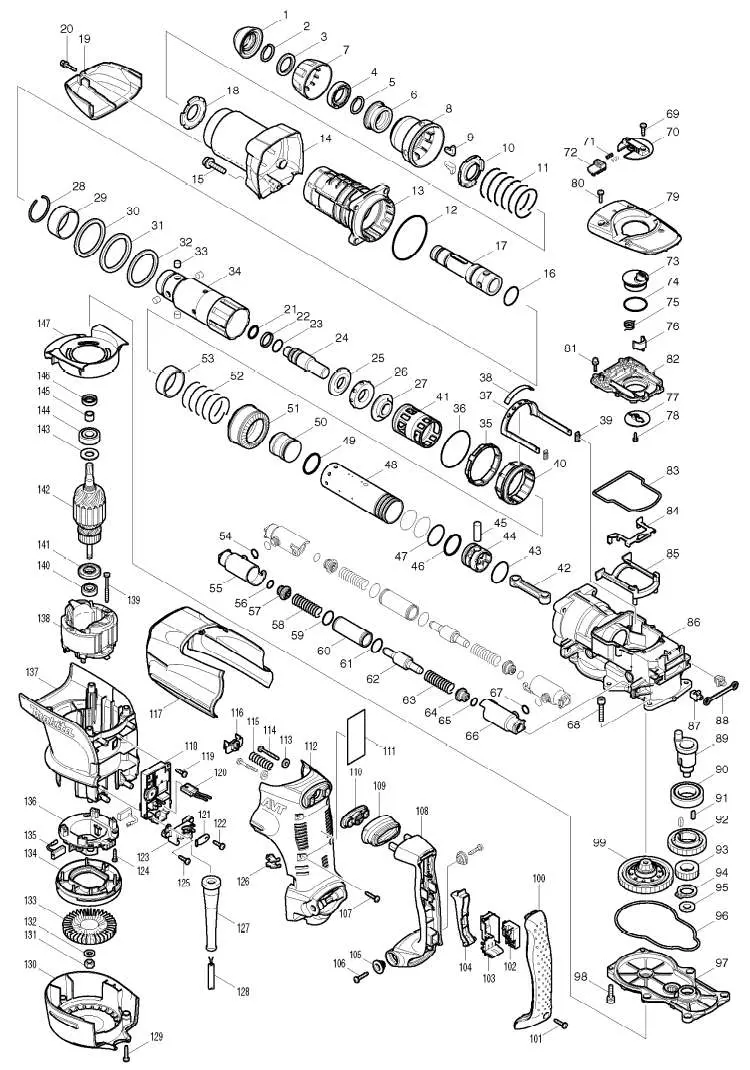

Деталировка

A B C D E F G H I J K L M N O P R S T U V W Y Z

П-п	Арт	Название
1		TOOL HOLDER CAP
2		RING SPRING 25
3		RING 28
4		SPACER
5		RING SPRING 25
6		CHUCK RING
7		CHACK COVER
8		RELEASE COVER
9		TOOL RETAINER
10		SPRING GUIDE
11		COMPRESSION SPRING 49
12		O-RING 78
13		BARREL COMPLETE
14		BARREL COVER COMPLETE
15		HEX. SOCKET HEAD BOLT M8X35
16		O-RING 32
17		TOOL HOLDER A
18		SPRING GUIDE
19		GEAR HOUSING COVER
20		HEX. SOCKET HEAD BOLT M4X25
21		O RING 18
22		FLUORIDE RING 25
23		O RING 20
24		IMPACT BOLT
25		RING 20
26		RUBBUR RING 24
27		COLLAR SLEEVE 20
28		RING SPRING 44
29		RING 47
30		FLAT WASHER 57
31		URETAHNE RING 57
32		FLAT WASHER 57
33		PIN 10
34		TOOL HOLDER B
35		LOCK SLEEVE
36		O RING 60
37		RINK ARM
38		LINK ARM GUIDE
39		SEAL PLATE
40		DRIVING SLEEVE
41		SLIDE SLEEVE
42		CONECTING ROD
43		O RING 35
44		PISTON
45		PIN 12
46		O-RING 34
47		O RING 36
48		CYLINDER 40
49		O-RING 34
50		STRIKER
51		STRAIGHT BEVEL GEAR 33
52		COMPRESSION SPRING 46
53		RING 45
54		O RING 12
55		PIPE HOLDER
56		O RING 12
57		SPRING GUIDE
58		COMPRESSION SPRING 15
59		O RING 24
60		PIPE 22
61		O RING 24
62		COUNTER WEIGHT
63		COMPRESSION SPRING 15
64		SPRING GUIDE
65		O RING 12
66		PIPE HOLDER
67		O RING 12
68		HEX. SOCKET HEAD BOLT M6X40
69		TAPPING SCREW 4X14
70		CHANGE LEVER
71		COMPRESSION SPRING 3
72		LOCK BUTTON
73		CRANK LEVER
74		O RING 36
75		TORSION SPRING 16
76		LINK LEVER
77		RETAINER PLATE
78		+ PAN HEAD SCREW M4X12
79		CRANK CAP COVER
80		TAPPING SCREW 4X14
81		PAN HEAD SCREW M4X18
82		CRANK CAP
83		SEAL RING
84		LINK PLATE
85		LINK PLATE GUIDE
86		CRANK HOUSING COMPLETE
87		FIX GUIDE
88		CUSHION PLATE
89		CRANK SHAFT
90		BALL BEARING 6006LLU
91		KEY 5
92		HELICAL GEAR 47
93		SPUR GEAR 24
94		RETAINING RING S-22
95		FLAT WASHER 12
96		SEAL RING
97		GEAR HOUSING COMPLETE
98		HEX. SOCKET HEAD BOLT M6X25
99		TORQUE LIMITER ASS\\\\\'Y
100		HANDLE COVER
101		TAPPING SCREW 4X18
102		SWITCH TG73B-1
103		SWITCH HOLDER COMPLETE
104		SWITCH LEVER
105		SHOULDER SLEEVE 6
106		TAPPING SCREW 5X25
107		TAPPING SCREW 5X25
108		HANDLE
109		DUST COVER
110		DUST COVER SUPPORT
111		HR5211C NAME PLATE
112		HANDLE BASE
113		FLAT WASHER 5
114		TAPPING SCREW 5X40
115		COMPRESSION SPRING 11
116		SPRING GUIDE
117		CRANK HOUSING COVER
118		CONTROLLER
119		TAPPING SCREW 4X14
120		LEAD UNIT
121		STRAIN RELIEF
122		TAPPING SCREW 4X14
123		CORD CLAMP BASE
124		TAPPING SCREW 4X18
125		TAPPING SCREW 4X14
126		LENS
127		CORD GUARD 10
128		POWER SUPPLY CORD 1.5-2-4.0
129		TAPPING SCREW 5X25
130		REAR COVER
131		HEX. NUT M8-12
132		FLAT WASHER 8
133		FAN 90
134		FAN GUIDE
135		CARBON BRUSH CB-171
136		BRUSH HOLDER UNIT
137		MOTOR HOUSING
138		FIELD 220-240V
139		TAPPING SCREW 5X55
140		BALL BEARING 6000DDW
141		INSULATION WASHER
142		ARMATURE ASS\\\\\'Y 220-240V INC. 140,141,145
143		FLAT WASHER 15
144		BALL BEARING 6202LLU
145		SLEEVE 12
146		OIL SEAL 15
147		BAFFLE PLATE
148		CLEAR LABEL
A01		GRIP 36 COMPLETE
A02		PLASTIC CARRYING CASE COMPLETE
A03		GREASE VESSEL SET
A04		SIDE HANDLE 82 ASS\\\\\'Y
A05		SCREW M6X14
A06		CUP SQUARE NECK BOLT M8X80
A07		DEPTH GAUGE
A08		PLATE
A09		GRIP SPRING 82
A10		SIDE GRIP BASE 82
A11		CLOTH
A12		HEX. NUT M6
A13		HR5211C PLASTIC CASE LABEL
A15		GRIP 36 ASSY INC. A01,A05-A10,A12
