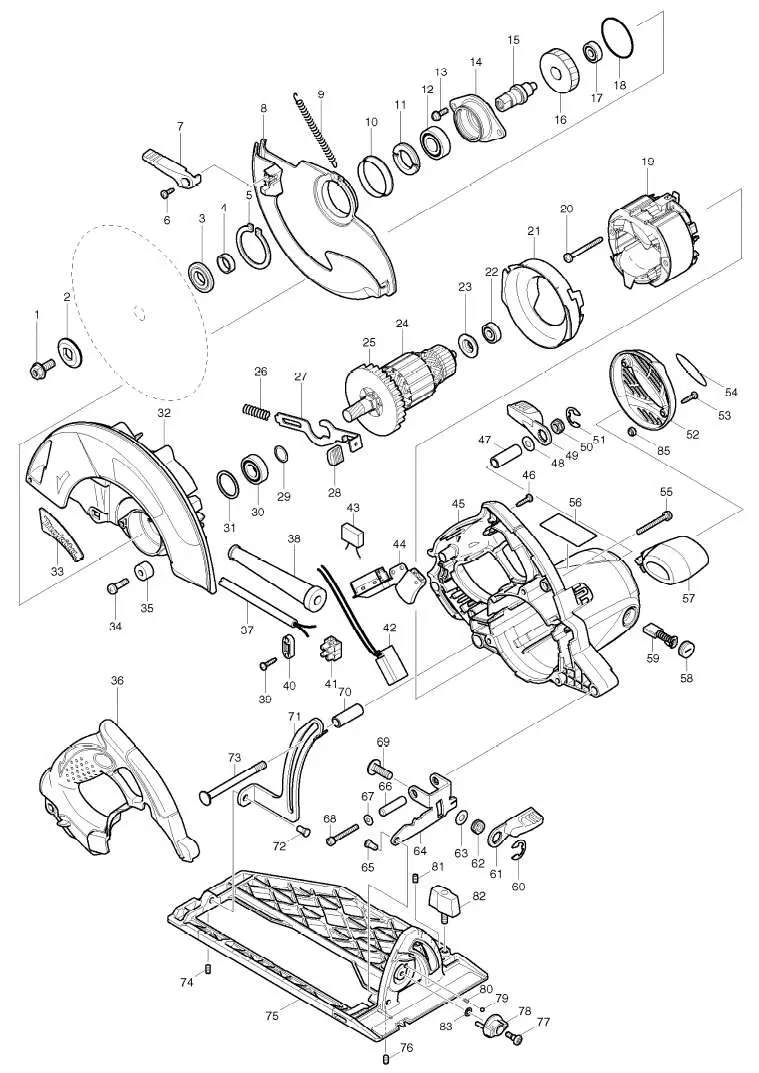

| П-п | Арт | Название |
|---|---|---|
| 1 | HEX. SOCKET HEX. BOLT M8X20 | |
| 2 | OUTER FLANGE 35 | |
| 3 | INNER FLANGE 35 | |
| 4 | RING 17 | |
| 5 | RETAINING RING S-42 | |
| 6 | TAPPING SCREW BIND CT 4X12 | |
| 7 | LEVER 37 | |
| 8 | SAFETY COVER | |
| 9 | TENSION SPRING 4 | |
| 10 | SPACER | |
| 11 | BEARING RETAINER 23-36 | |
| 12 | BALL BEARING 6003DDW | |
| 13 | PAN HEAD SCREW M5X16 | |
| 14 | BEARING BOX | |
| 15 | SPINDLE | |
| 16 | HELICAL GEAR 43 | |
| 17 | BALL BEARING 608LLB | |
| 18 | O RING 46 | |
| 19 | FIELD ASS\\\\\'Y 240V | |
| 20 | TAPPING SCREW BIND 5X50 | |
| 21 | BAFFLE PLATE | |
| 22 | BALL BEARING 608LLB | |
| 23 | INSULATION WASHER | |
| 24 | ARMATURE ASS\\\\\'Y 220V INC. 22,23,25,29,30 | |
| 25 | FAN 80 | |
| 26 | COMPRESSION SPRING 9 | |
| 27 | SHAFT LOCK | |
| 28 | CAP | |
| 29 | FLAT WASHER 15 | |
| 30 | BALL BEARING 6002DDW | |
| 31 | URETHANE WASHER 26 | |
| 32 | BLADE CASE SET INC. 33 | |
| 33 | MAKITA LOGO PLATE | |
| 34 | + PAN HEAD SCREW M6X20 | |
| 35 | RUBBER SLEEVE 6 | |
| 36 | HANDLE COVER | |
| 37 | POWER SUPPLY CORD 1.0-2-2.5 | |
| 38 | CORD GUARD | |
| 39 | TAPPING SCREW 4X18 | |
| 40 | STRAIN RELIEF | |
| 41 | TERMINAL BLOCK 2P | |
| 42 | LIGHT CIRCUIT | |
| 43 | NOISE SUPPRESSOR | |
| 44 | SWITCH TG933TN-2 | |
| 45 | MOTOR HOUSING COMPLETE | |
| 46 | TAPPING SCREW 4X18 | |
| 47 | PIPE 9 | |
| 48 | FLAT WASHER 8 | |
| 49 | LEVER 56 | |
| 50 | HEX. NUT M8-13 | |
| 51 |  |
BOW STOP RING E-12 |
| 52 |  |
REAR COVER SET INC. 54 |
| 53 |  |
TAPPING SCREW 4X18 |
| 54 |  |
MAKITA LOGO LABEL |
| 55 |  |
PAN HEAD SCREW M5X45 |
| 56 |  |
5008MG NAME PLATE |
| 57 |  |
FRONT GRIP |
| 58 |  |
BRUSH HOLDER CAP 6.5-13.5 |
| 59 |  |
CARBON BRUSH CB-153 |
| 60 |  |
BOW STOP RING E-12 |
| 61 |  |
LEVER 56 |
| 62 |  |
HEX. NUT M8-13 |
| 63 |  |
FLAT WASHER 8 |
| 64 |  |
ANGULAR GUIDE |
| 65 |  |
SHOULDER PIN 6-7 |
| 66 |  |
SLEEVE 6 |
| 67 |  |
FLAT WASHER 5 |
| 68 |  |
HEX. SOCKET HEAD BOLT M5X40 |
| 69 |  |
FLAT HEADSQUARE NECKBOLT M8X24 |
| 70 |  |
PIPE 9 |
| 71 |  |
DEPTH GUIDE |
| 72 |  |
SHOULDER PIN 6-7 |
| 73 |  |
CAP SQUARE NECK BOLT M8X90 |
| 74 |  |
H.S.SET SCREW(CUP POINT)M5X8 |
| 75 |  |
BASE COMPLETE |
| 76 |  |
H.S.SET SCREW(CUP POINT)M5X8 |
| 77 |  |
+ PAN HEAD SCREW M5 |
| 78 |  |
DIAL 27 |
| 79 |  |
STEEL BALL 4 |
| 80 |  |
COMPRESSION SPRING 4 |
| 81 |  |
H.S.SET SCREW(CUP POINT)M5X8 |
| 82 |  |
SCREW M6X15 |
| 83 |  |
FLAT WASHER 5 |
| 85 |  |
SPACER |
| A01 |  |
GUIDE RULE |
| A02 |  |
HEX. WRENCH 6 |
| A03 |  |
DUST NOZZLE |
| A04 |  |
PAN HEAD SCREW M5X16 |
| A05 |  |
T.C.T.SAW BLADE 210X30X24T |
