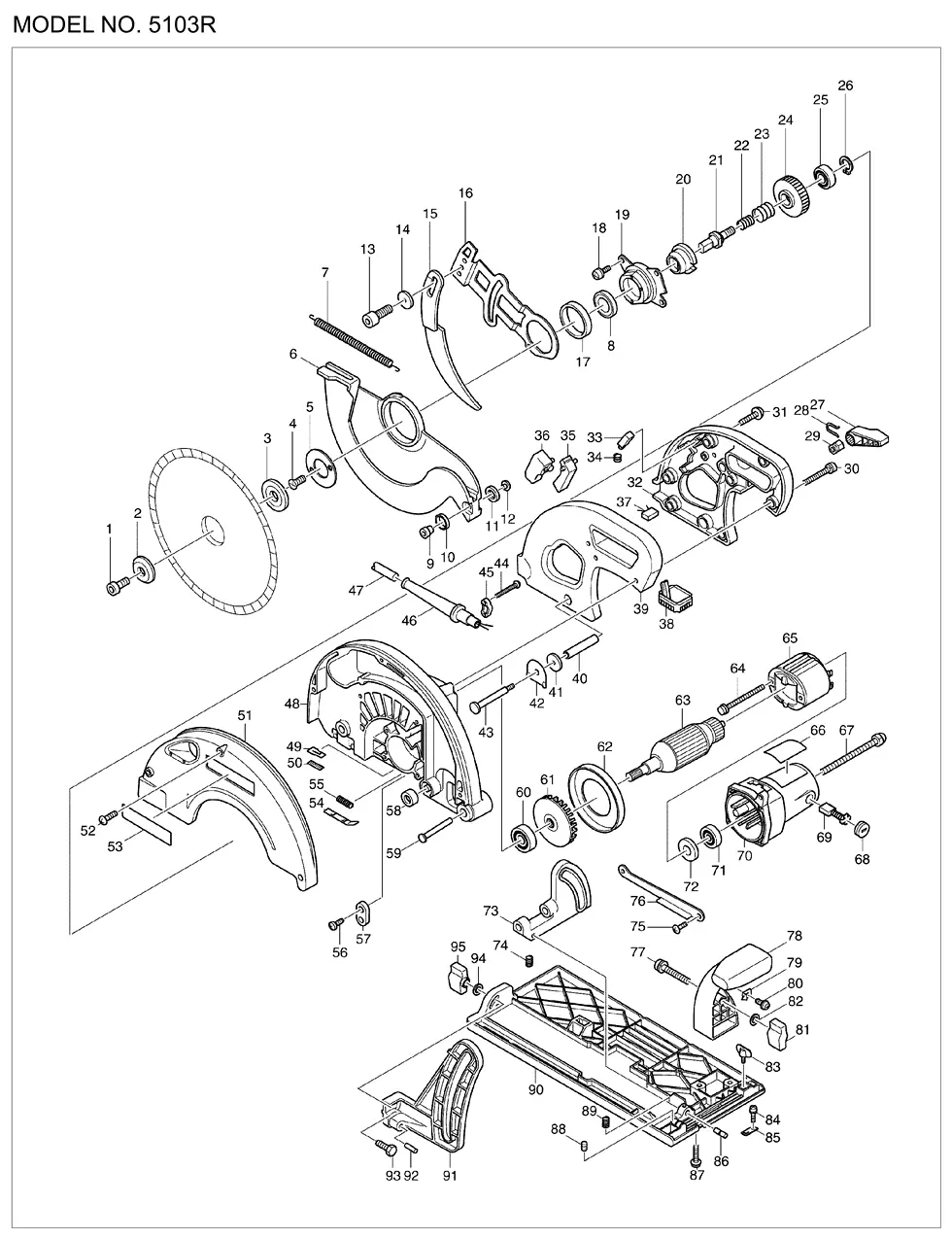

5103R Деталировка
| П-п | Арт | Название |
|---|---|---|
| 1 |  |
HEX. SOCKET HEAD BOLT M10X25 |
| 2 |  |
OUTER FLANGE 45 |
| 3 |  |
INNER FLANGE 45 |
| 4 |  |
COUNTERSUNK HEAD SCREW M5X16 |
| 5 |  |
BEARING RETAINER 34-62 |
| 6 |  |
SAFETY COVER (new) |
| 6 |  |
SAFETY COVER (old) |
| 7 |  |
TENSION SPRING 6 (new) |
| 7 |  |
TENSION SPRING 6 (old) |
| 8 |  |
BALL BEARING 6203DDW |
| 9 |  |
ROLLER PIN 6 |
| 10 |  |
ROLLER 20 |
| 11 | ROLLER 20 | |
| 12 | ROLLER PIN 6 | |
| 13 | HEX. SOCKET HEAD BOLT M8X16 | |
| 14 | FLAT WASHER 8 (new) | |
| 14 | FLAT WASHER 8 (old) | |
| 15 | RIVING KNIFE (new) | |
| 15 | RIVING KNIFE (old) | |
| 16 | RIVING KNIFE HOLDER (new) | |
| 16 | RIVING KNIFE HOLDER (old) | |
| 17 | THICKNESS RING | |
| 18 | PAN HEAD SCREW M5X16 | |
| 19 | BEARING BOX | |
| 20 | LOCK SLEEVE | |
| 21 | SPINDLE | |
| 22 | LOCK SPRING 27 | |
| 23 | LOCK SPRING 20 | |
| 24 | HELICAL GEAR 39 | |
| 25 | BALL BEARING 6001 | |
| 26 | RETAINING RING S-12 | |
| 27 | LEVER 54 | |
| 28 | RING SPRING 12 | |
| 29 | HEX. NUT M8 | |
| 30 | PAN HEAD SCREW M5X40 | |
| 31 | TAPPING SCREW 5X25 | |
| 32 | HANDLE SET INC. 39 | |
| 33 | LOCK-OFF BUTTON | |
| 34 | COMPRESSION SPRING 4 | |
| 35 | SWITCH LEVER | |
| 36 | SWITCH TG70B | |
| 37 | NOISE SUPPRESSOR | |
| 37 | NOISE SUPPRESSOR | |
| 38 | CONTROLLER 200/220/240V | |
| 39 | HANDLE SET INC. 32 | |
| 40 | PIPE 9 | |
| 41 | FLAT WASHER 8 (new) | |
| 41 | FLAT WASHER 8 (old) | |
| 42 | LEAF SPRING | |
| 43 | CAP SQUARE NECK BOLT M8X98 | |
| 44 | TAPPING SCREW 4X18 | |
| 45 | STRAIN RELIEF (new) | |
| 45 | CORD CLAMP (old) | |
| 46 | CORD GUARD 9.3-90 (new) | |
| 46 | CORD GUARD 8-90 (old) | |
| 47 | POWER SUPPLY CORD 1.0-2-2.5 (new) | |
| 47 | POWER SUPPLY CORD 1.5-2-2.5 (old) | |
| 48 | BLADE CASE COMPLETE (new) | |
| 48 | BLADE CASE COMPLETE (old) | |
| 49 | FELT | |
| 50 | PLATE | |
| 51 | BLADE CASE COVER | |
| 52 | TAPPING SCREW BIND CT 5X20 | |
| 53 | MAKITA LABEL | |
| 54 | SHAFT LOCK | |
| 55 | COMPRESSION SPRING 6 (new) | |
| 55 | COMPRESSION SPRING 5 (old1) | |
| 55 | COMPRESSION SPRING 6 (old2) | |
| 56 | TAPPING SCREW CT 4X16 | |
| 57 | STRAIN RELIEF | |
| 58 | RUBBER RING 8 | |
| 59 | PIN 10 | |
| 60 | BALL BEARING 6002DDW | |
| 61 | FAN 74 | |
| 62 | BAFFLE PLATE | |
| 63 | ARMATURE ASS\\\'Y 220/240V INC. 71,72 | |
| 64 | PAN HEAD SCREW M5X80 | |
| 65 | FIELD ASS\\\'Y 220-240V (new) | |
| 65 | FIELD 220/240V (old) | |
| 66 | NAME PLATE 5103R | |
| 67 | PAN HEAD SCREW M5X65 | |
| 68 | BRUSH HOLDER CAP 7-18 | |
| 69 | CARBON BRUSH CB-203 | |
| 70 | MOTOR HOUSING 200-240V (new) | |
| 70 | MOTOR HOUSING 200-240V (old) | |
| 71 | BALL BEARING 629LLB (new) | |
| 71 | BALL BEARING 629LLB (old) | |
| 72 | INSULATION WASHER | |
| 73 | ANGULAR PLATE | |
| 74 | H.S.SET SCREW(FLAT POINT) M6X6 | |
| 75 | + PAN HEAD SCREW M4X11 | |
| 76 | LINK COMPLETE | |
| 77 | HEX. BOLT M8X55 | |
| 78 | ANGULAR PLATE GUIDE | |
| 79 | POINTER | |
| 80 | TAPPING SCREW 4X12 | |
| 81 | WING NUT | |
| 82 | FLAT WASHER 8 | |
| 83 | SCREW M6X14 | |
| 84 | PAN HEAD SCREW M4X8 | |
| 85 | TOP GUIDE | |
| 86 | PIN 6 | |
| 87 | TAPPING SCREW 5X20 | |
| 88 | H.S.SET SCREW(FLAT POINT) M6X6 | |
| 89 | H.S.SET SCREW(CUP POINT)M4X5 | |
| 90 | BASE (new) | |
| 90 | BASE (old) | |
| 91 | DEPTH GUIDE | |
| 92 | SPRING PIN 6-20 | |
| 93 | HEX. BOLT M6X25 | |
| 94 | FLAT WASHER 6 | |
| 95 | WING NUT M6 | |
| A01 | TCT SAW BLADE 270X18TX30 (new) | |
| A01 | T.C.T. SAW BLADE 270X18TX30 (old) | |
| A02 | GUIDE RULE | |
| A03 | HEX. WRENCH 6 | |
| E02 | INSULATED RECEPTACLE DF1.25 | |
| E03 | CONNECTOR 2-SD | |
| E04 | INSULATED CONNECTOR 5.5-SD | |
| E05 | INSULATED RECEPTACLE DF2-187A | |
| E06 | JOINT | |
| E07 | TAPPING SCREW BIND CT 4X12 | |
| E08 | SWITCH V-15-2A5 |
